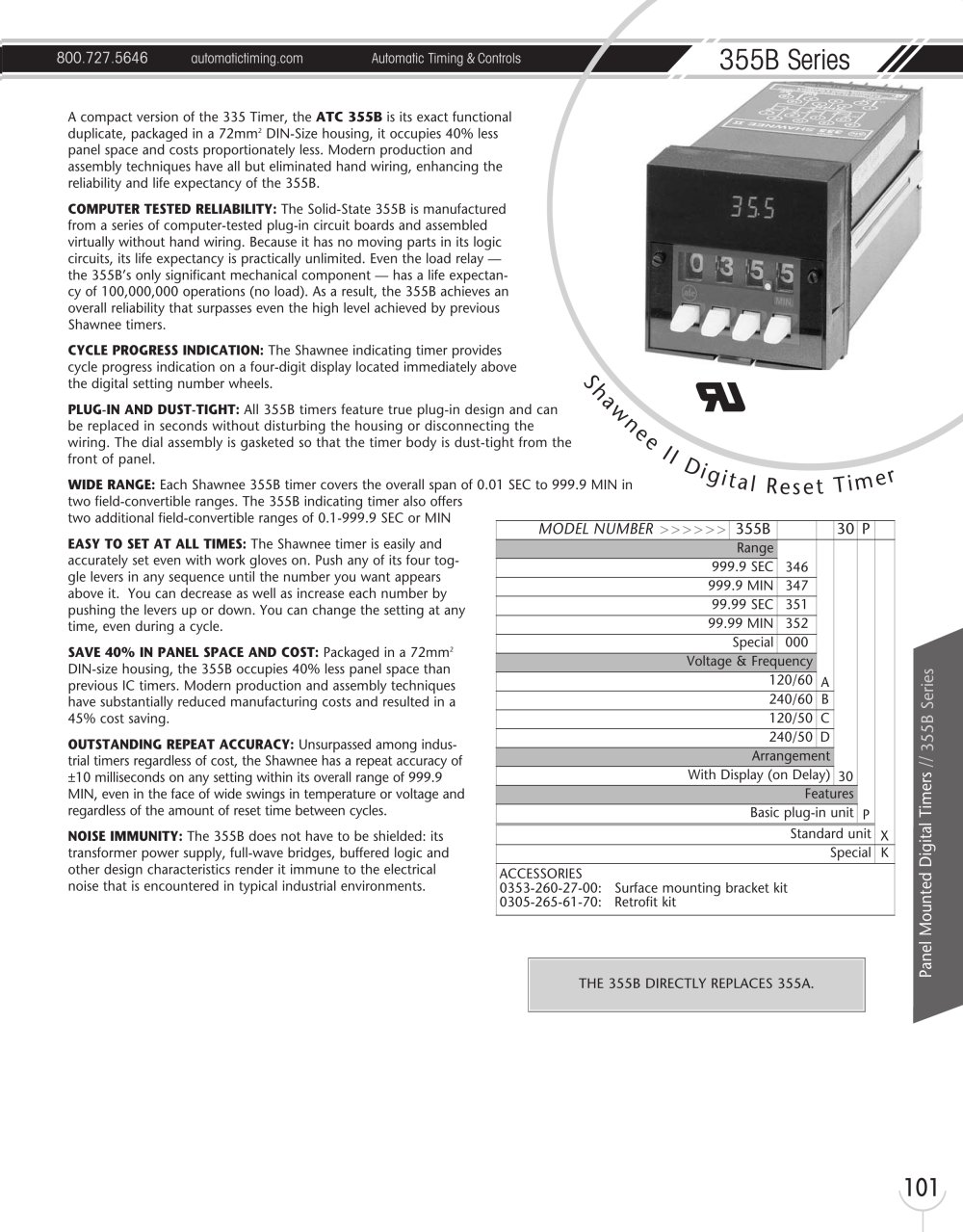

800.727.5646 automatictiming.com Automatic Timing & Controls 355B Series Panel Mounted Digital Timers // 355B Series 101 A compact version of the 335 Timer, the ATC 355B is its exact functional duplicate, packaged in a 72mm2 DIN-Size housing, it occupies 40% less panel space and costs proportionately less. Modern production and assembly techniques have all but eliminated hand wiring, enhancing the reliability and life expectancy of the 355B. COMPUTER TESTED RELIABILITY: The Solid-State 355B is manufactured from a series of computer-tested plug-in circuit boards and assembled virtually without hand wiring. Because it has no moving parts in its logic circuits, its life expectancy is practically unlimited. Even the load relay — the 355B’s only significant mechanical component — has a life expectancy of 100,000,000 operations (no load). As a result, the 355B achieves an overall reliability that surpasses even the high level achieved by previous Shawnee timers. CYCLE PROGRESS INDICATION: The Shawnee indicating timer provides cycle progress indication on a four-digit display located immediately above the digital setting number wheels. PLUG-IN AND DUST-TIGHT: All 355B timers feature true plug-in design and can be replaced in seconds without disturbing the housing or disconnecting the wiring. The dial assembly is gasketed so that the timer body is dust-tight from the front of panel. WIDE RANGE: Each Shawnee 355B timer covers the overall span of 0.01 SEC to 999.9 MIN in two field-convertible ranges. The 355B indicating timer also offers two additional field-convertible ranges of 0.1-999.9 SEC or MIN EASY TO SET AT ALL TIMES: The Shawnee timer is easily and accurately set even with work gloves on. Push any of its four toggle levers in any sequence until the number you want appears above it. You can decrease as well as increase each number by pushing the levers up or down. You can change the setting at any time, even during a cycle. SAVE 40% IN PANEL SPACE AND COST: Packaged in a 72mm2 DIN-size housing, the 355B occupies 40% less panel space than previous IC timers. Modern production and assembly techniques have substantially reduced manufacturing costs and resulted in a 45% cost saving. OUTSTANDING REPEAT ACCURACY: Unsurpassed among industrial timers regardless of cost, the Shawnee has a repeat accuracy of ±10 milliseconds on any setting within its overall range of 999.9 MIN, even in the face of wide swings in temperature or voltage and regardless of the amount of reset time between cycles. NOISE IMMUNITY: The 355B does not have to be shielded: its transformer power supply, full-wave bridges, buffered logic and other design characteristics render it immune to the electrical noise that is encountered in typical industrial environments. Shawn e e II D i gi t a l R e s e t T i m er THE 355B DIRECTLY REPLACES 355A. MODEL NUMBER >>>>>> 355B 30 P Range 346 A 30 P X 999.9 SEC 999.9 MIN 347 99.99 SEC 351 99.99 MIN 352 Special 000 Voltage & Frequency 120/60 240/60 B 120/50 C 240/50 D Arrangement With Display (on Delay) Features Basic plug-in unit Standard unit Special K ACCESSORIES 0353-260-27-00: Surface mounting bracket kit 0305-265-61-70: Retrofit kit

\\\SPECIFICATIONS RANGES 0.01 - 99.99 SEC 0.01 - 99.99 MIN 0.1 - 999.9 SEC 0.1 - 999.9 MIN field-convertible TIMING MODES POSSIBLE Single Cycle interval or delay Repeat Cycle pulse (fixed at approx. 50 mSEC) CYCLE PROGRESS INDICATOR 4 digit, 0.3 inch, high intensity, blue display REPEAT ACCURACY ±0.01 SEC on all ranges RESET TIME 75 milliseconds MINIMUM SETTING 99.99 SEC of MIN ranges: 0.01 SEC or MIN, respectively 999.9 SEC or MIN ranges: 0.1 SEC or MIN, respectively LOAD RELAYS Number two, one instantaneous and one delayed; both plug-in DPDT Operate Time 20 mSEC, max. Release Time instantaneous...

800.727.5646 automatictiming.com Automatic Timing & Controls 355B Series Panel Mounted Digital Timers // 355B Series 103 KEY SYMBOLS POWER SUPPLY CLOCK INDEPENDENT LOADS DEPENDENT LOADS MOMENTARY STARTING CONTACT SUSTAINED STARTING CONTACT LOAD ENERGIZED LOAD DE-ENERGIZED DELAYED CONTACTS Contacts transfer simultaneously when unit "times out" and all digits are zero. All timers shown in "before start" position. Diagrams shown with power off unless otherwise marked. Maximum load current through any load carrying contact is 5 amperes. Pilot lights leads are brought out to terminal block. Pilot...
