Marsh Bellofram Automatic Timing & Controls Division 314B Series Multi-Stage Solid-State TDR

Marsh Bellofram Automatic Timing & Controls Division 314B Series Multi-Stage Solid-State TDR
2Pages

Catalog excerpts

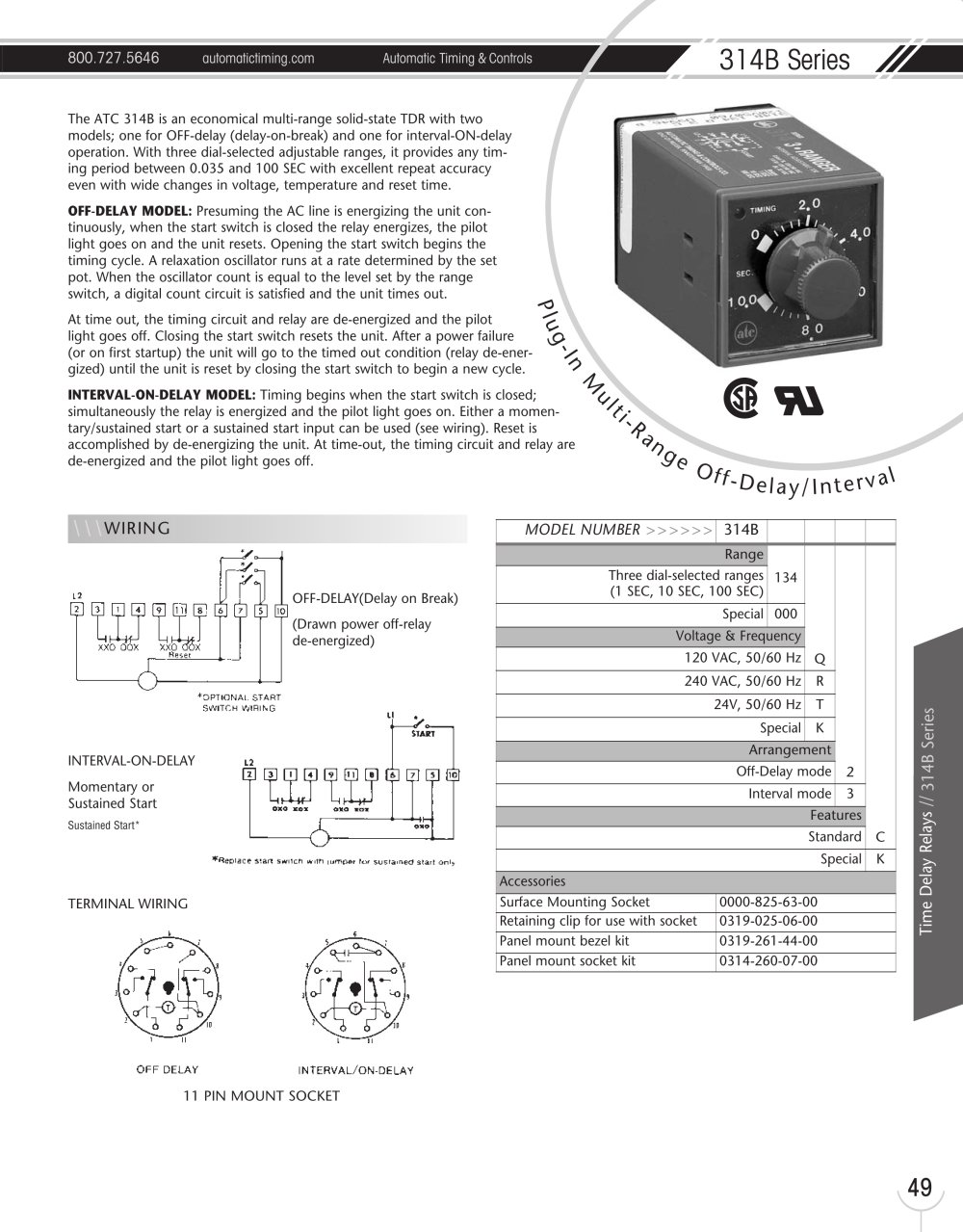

Marsh Bellofram Automatic Timing & Controls Division 314B Series Multi-Stage Solid-State TDR - 1

800.727.5646 automatictiming.com Automatic Timing & Controls 314B Series Time Delay Relays // 314B Series 49 The ATC 314B is an economical multi-range solid-state TDR with two models; one for OFF-delay (delay-on-break) and one for interval-ON-delay operation. With three dial-selected adjustable ranges, it provides any timing period between 0.035 and 100 SEC with excellent repeat accuracy even with wide changes in voltage, temperature and reset time. OFF-DELAY MODEL: Presuming the AC line is energizing the unit continuously, when the start switch is closed the relay energizes, the pilot light goes on and the unit resets. Opening the start switch begins the timing cycle. A relaxation oscillator runs at a rate determined by the set pot. When the oscillator count is equal to the level set by the range switch, a digital count circuit is satisfied and the unit times out. At time out, the timing circuit and relay are de-energized and the pilot light goes off. Closing the start switch resets the unit. After a power failure (or on first startup) the unit will go to the timed out condition (relay de-energized) until the unit is reset by closing the start switch to begin a new cycle. INTERVAL-ON-DELAY MODEL: Timing begins when the start switch is closed; simultaneously the relay is energized and the pilot light goes on. Either a momentary/ sustained start or a sustained start input can be used (see wiring). Reset is accomplished by de-energizing the unit. At time-out, the timing circuit and relay are de-energized and the pilot light goes off. Plug- In Mul t i - R an ge O f f- D e l a y / I n t e r v a l 11 PIN MOUNT SOCKET TERMINAL WIRING OFF-DELAY(Delay on Break) (Drawn power off-relay de-energized) INTERVAL-ON-DELAY Momentary or Sustained Start Sustained Start* MODEL NUMBER >>>>>> 314B Range 134 Q 2 C Three dial-selected ranges (1 SEC, 10 SEC, 100 SEC) Special 000 Voltage & Frequency 120 VAC, 50/60 Hz 240 VAC, 50/60 Hz R 24V, 50/60 Hz T Special K Arrangement Off-Delay mode Interval mode 3 Features Standard Special K Accessories Surface Mounting Socket 0000-825-63-00 Retaining clip for use with socket 0319-025-06-00 Panel mount bezel kit 0319-261-44-00 Panel mount socket kit 0314-260-07-00 \\\WIRING

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls Division 314B Series Multi-Stage Solid-State TDR - 2

314B Series Automatic Timing & Controls automatictiming.com 800.727.5646 50Time Delay Relays // 314B Series \\\SPECIFICATIONS MODELS OFF-Delay mode Interval mode RANGES AND MINIMUM SETTINGS Three dial-selected adjustable ranges 0.035–1.0 SEC 0.18–10 SEC 1.8–100 SEC LOAD RELAY TYPE DPDT, hard wired LIFE 50,000,000 operation (no load) CONTACT RATING 7A resistive at 120 or 240V 1/10 HP at 120V TEMPERATURE RATING 32 to 158° F (0 to 70° C) MOUNTING PLUG-IN 11-PIN BASE; mounts in any position OPTIONAL: surface-mounting socket panelmounting bezel kit plug-on socket kit POWER REQUIREMENTS 120 VAC...
