Marsh Bellofram Automatic Timing & Controls Delta 7650 Series Photoelectric Sensor

Marsh Bellofram Automatic Timing & Controls Delta 7650 Series Photoelectric Sensor

Product catalog summary

Overview: The 7650 Series sensors are designed for versatile sensing applications with AC/DC power supply, SPDT output, and easy mounting. They are suitable for harsh environments with a NEMA 4 rating and an operating temperature range from -13 to 140°F. The series offers relay and FET output types, making it adaptable for various applications.

Specifications:

Power Supply: Universal AC/DC (10 to 30 VDC/10 to 135 VAC)
Output Types: SPDT Relay or FET
Operating Modes: Light-On / Dark-On
Status Indicator: Red LED
Environmental Conditions: -13° to 140° F, 85% max relative humidity

Sensing Capabilities:

7652A Short Range Diffused: Max Distance 4", Min Target Size 0.2"
7653A Retroreflective: Max Distance 12', Min Target Size 2.0"
7654A Long Range Diffused: Max Distance 18", Min Target Size 0.5"
7655A Retroreflective Polarized: Max Distance 12', Min Target Size 2.0"

Output Specifications:

FET: DPST, Short Circuit Protected, 120 mA capacity, <3 ms response time, 166 Hz max switching rate
Relay: SPDT, 1.0A @ 30 VDC or 0.5A @ 120 VAC, <5 ms response time, 100 Hz max switching rate

Accessories:

Mounting Nuts (18mm)
Mounting Bracket
Right Angle Adapter
Various Retroreflective Targets with different sensing distances

Additional Notes: All diffuse distances are achieved with a 2" x 2" 90% reflective Kodak white card. Mounting nuts and a 2" square reflector are included with retroreflective units.

Catalog excerpts

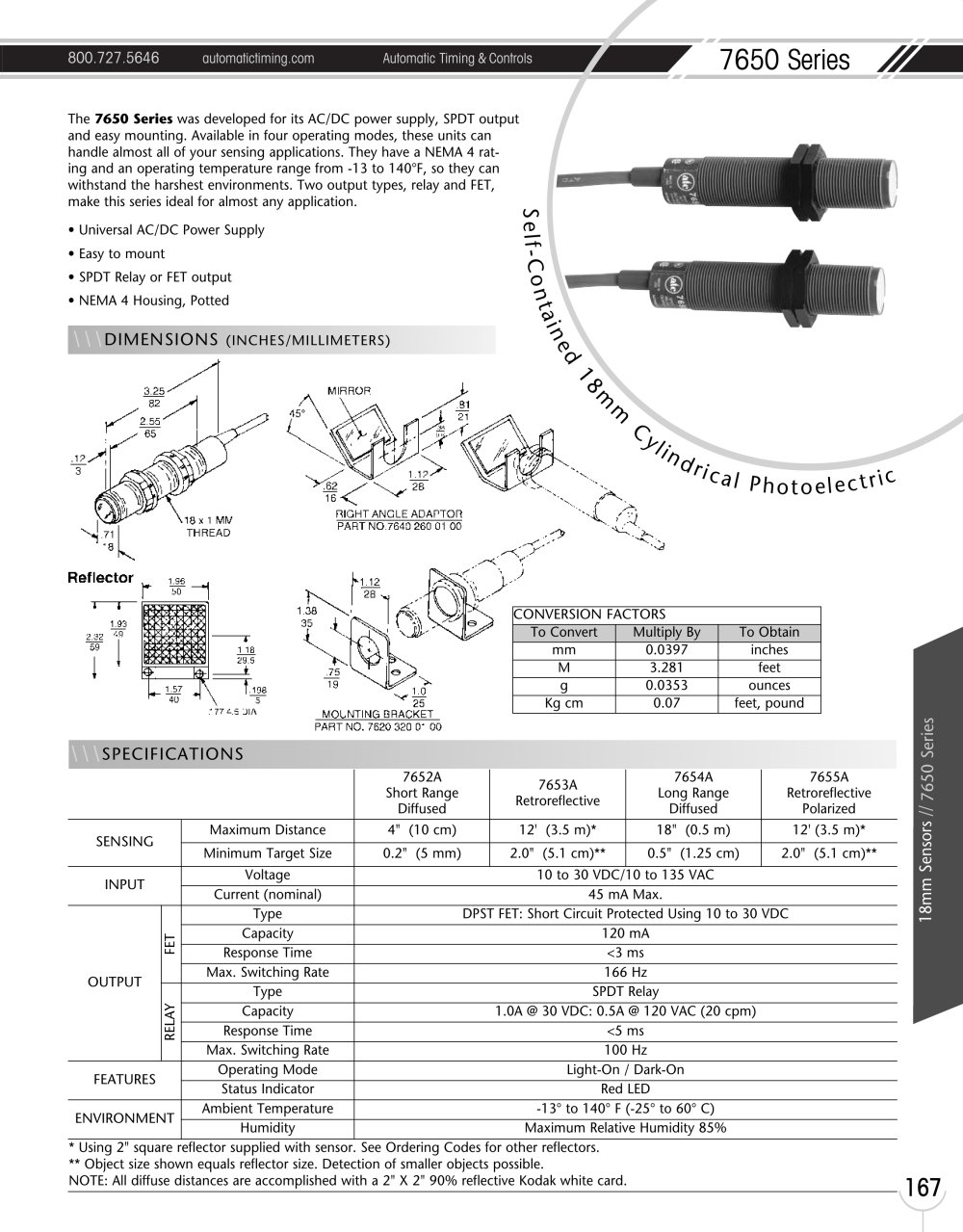

Marsh Bellofram Automatic Timing & Controls Delta 7650 Series Photoelectric Sensor-1

800.727.5646 automatictiming.com Automatic Timing & Controls 7650 Series 18mm Sensors // 7650 Series 167 The 7650 Series was developed for its AC/DC power supply, SPDT output and easy mounting. Available in four operating modes, these units can handle almost all of your sensing applications. They have a NEMA 4 rating and an operating temperature range from -13 to 140°F, so they can withstand the harshest environments. Two output types, relay and FET, make this series ideal for almost any application. Self -Contained 18mm C y l in d r i c a l P h o t o e l e c t r i c • Universal AC/DC Power Supply • Easy to mount • SPDT Relay or FET output • NEMA 4 Housing, Potted \\\SPECIFICATIONS 7652A Short Range Diffused 7653A Retroreflective 7654A Long Range Diffused 7655A Retroreflective Polarized SENSING Maximum Distance 4" (10 cm) 12' (3.5 m)* 18" (0.5 m) 12' (3.5 m)* Minimum Target Size 0.2" (5 mm) 2.0" (5.1 cm)** 0.5" (1.25 cm) 2.0" (5.1 cm)** INPUT Voltage 10 to 30 VDC/10 to 135 VAC Current (nominal) 45 mA Max. OUTPUT FET Type DPST FET: Short Circuit Protected Using 10 to 30 VDC Capacity 120 mA Response Time <3 ms Max. Switching Rate 166 Hz RELAY Type SPDT Relay Capacity 1.0A @ 30 VDC: 0.5A @ 120 VAC (20 cpm) Response Time <5 ms Max. Switching Rate 100 Hz FEATURES Operating Mode Light-On / Dark-On Status Indicator Red LED ENVIRONMENT Ambient Temperature -13° to 140° F (-25° to 60° C) Humidity Maximum Relative Humidity 85% * Using 2" square reflector supplied with sensor. See Ordering Codes for other reflectors. ** Object size shown equals reflector size. Detection of smaller objects possible. NOTE: All diffuse distances are accomplished with a 2" X 2" 90% reflective Kodak white card. \\\DIMENSIONS (INCHES/MILLIMETERS) CONVERSION FACTORS To Convert Multiply By To Obtain mm 0.0397 inches M 3.281 feet g 0.0353 ounces Kg cm 0.07 feet, pound

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls Delta 7650 Series Photoelectric Sensor-2

7650 Series Automatic Timing & Controls automatictiming.com 800.727.5646 168 18mm Sensors // 7650 Series MODEL NUMBER >>>>>> 765 04 F 2 Type 2AD 04 F 1 2 R X Short Range Diffused Retroreflective (IR) 3AR Long Range Diffused 4AD Polarized Retroreflective (red) 5AR Operation On/Off Power Requirements 10-30 VDC/10-135 VAC Beam Type Visible Red Polarized (7655 only) Infrared 2 View End View Output Relay (SPDT) Solid State S Features Standard Special K *Note: Mounting nuts (18mm) are shipped with units. A 2" square reflector shipped with retroreflective units. ACCESSORIES 7650-715-01-00: Mounting...

Open the catalog to page 2
