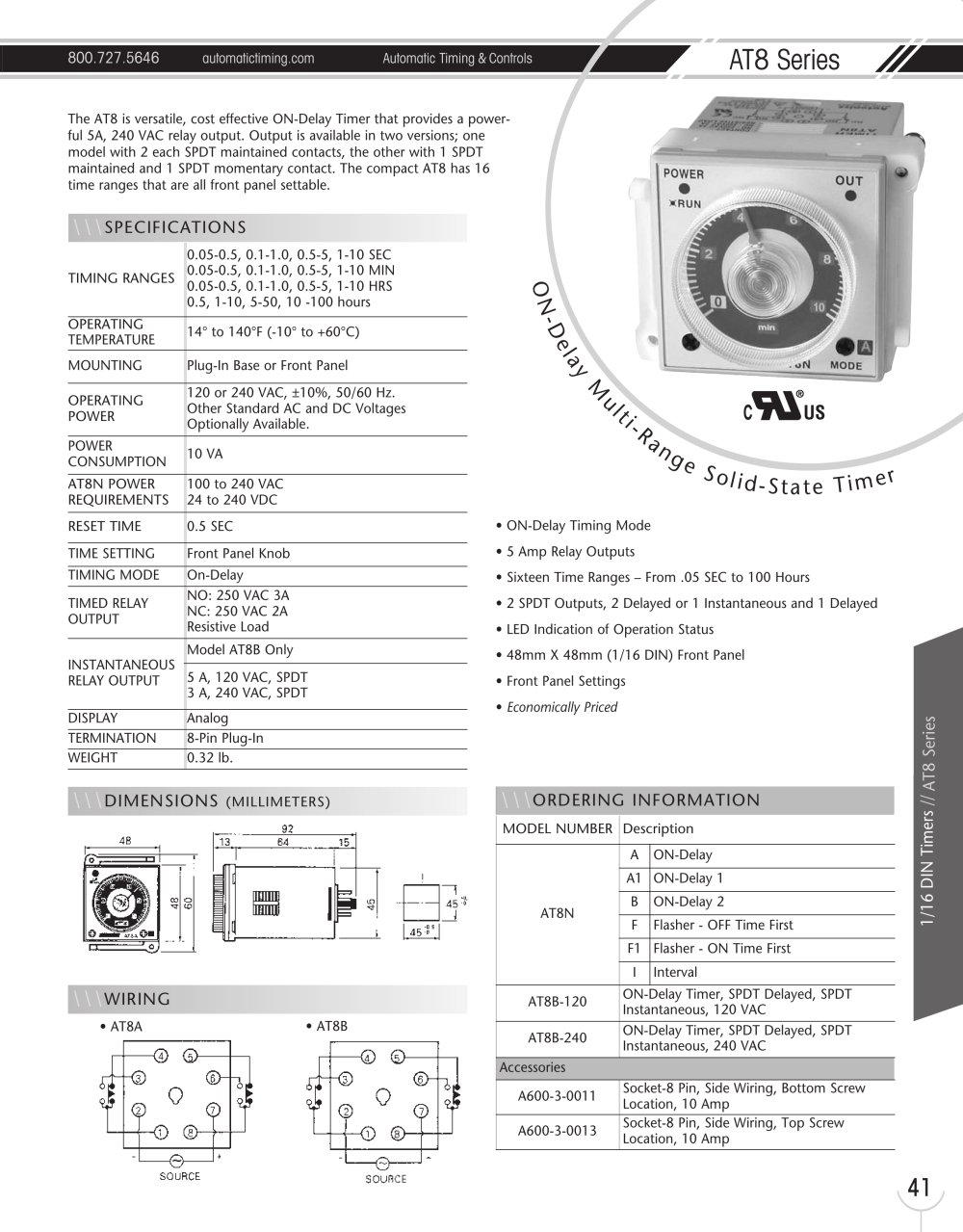

800.727.5646 automatictiming.com Automatic Timing & Controls AT8 Series 1/16 DIN Timers // AT8 Series 41 The AT8 is versatile, cost effective ON-Delay Timer that provides a powerful 5A, 240 VAC relay output. Output is available in two versions; one model with 2 each SPDT maintained contacts, the other with 1 SPDT maintained and 1 SPDT momentary contact. The compact AT8 has 16 time ranges that are all front panel settable. ON-De lay Mul t i - Ran g e Sol i d- S t a t e T i m er • AT8A • AT8B • ON-Delay Timing Mode • 5 Amp Relay Outputs • Sixteen Time Ranges – From .05 SEC to 100 Hours • 2 SPDT Outputs, 2 Delayed or 1 Instantaneous and 1 Delayed • LED Indication of Operation Status • 48mm X 48mm (1/16 DIN) Front Panel • Front Panel Settings • Economically Priced \\\SPECIFICATIONS TIMING RANGES 0.05-0.5, 0.1-1.0, 0.5-5, 1-10 SEC 0.05-0.5, 0.1-1.0, 0.5-5, 1-10 MIN 0.05-0.5, 0.1-1.0, 0.5-5, 1-10 HRS 0.5, 1-10, 5-50, 10 -100 hours OPERATING TEMPERATURE 14° to 140°F (-10° to +60°C) MOUNTING Plug-In Base or Front Panel OPERATING POWER 120 or 240 VAC, ±10%, 50/60 Hz. Other Standard AC and DC Voltages Optionally Available. POWER CONSUMPTION 10 VA AT8N POWER REQUIREMENTS 100 to 240 VAC 24 to 240 VDC RESET TIME 0.5 SEC TIME SETTING Front Panel Knob TIMING MODE On-Delay TIMED RELAY OUTPUT NO: 250 VAC 3A NC: 250 VAC 2A Resistive Load INSTANTANEOUS RELAY OUTPUT Model AT8B Only 5 A, 120 VAC, SPDT 3 A, 240 VAC, SPDT DISPLAY Analog TERMINATION 8-Pin Plug-In WEIGHT 0.32 lb. \\\DIMENSIONS (MILLIMETERS) \\\ORDERING INFORMATION MODEL NUMBER Description AT8N A ON-Delay A1 ON-Delay 1 B ON-Delay 2 F Flasher - OFF Time First F1 Flasher - ON Time First I Interval AT8B-120 ON-Delay Timer, SPDT Delayed, SPDT Instantaneous, 120 VAC AT8B-240 ON-Delay Timer, SPDT Delayed, SPDT Instantaneous, 240 VAC Accessories A600-3-0011 Socket-8 Pin, Side Wiring, Bottom Screw Location, 10 Amp A600-3-0013 Socket-8 Pin, Side Wiring, Top Screw Location, 10 Amp \\\WIRING
