Marsh Bellofram Automatic Timing & Controls 7708 Series M18 Laser Photoelectric Sensor (Quick Disconnect) - 1

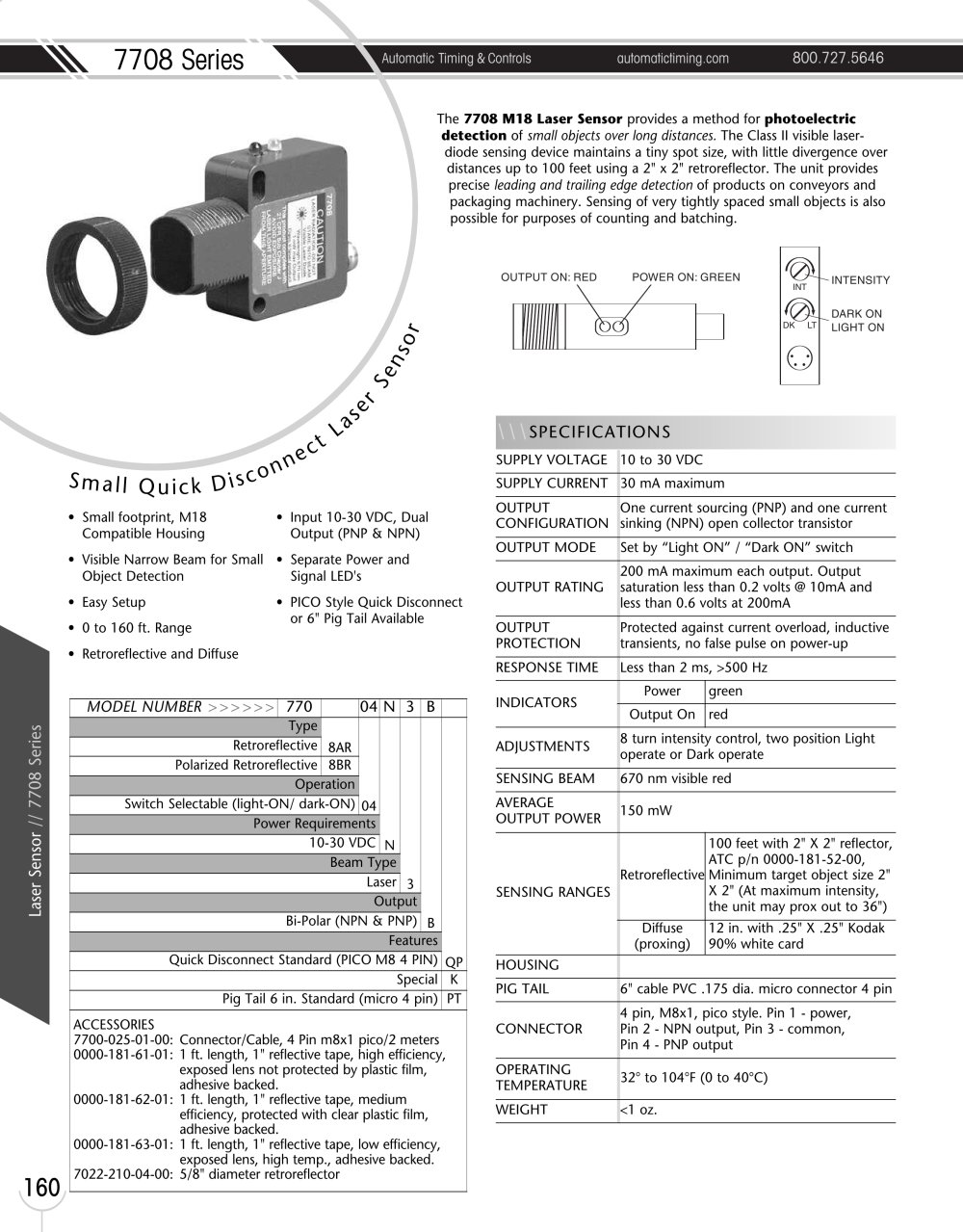

7708 Series Automatic Timing & Controls automatictiming.com 800.727.5646 160Laser Sensor // 7708 Series The 7708 M18 Laser Sensor provides a method for photoelectric detection of small objects over long distances. The Class II visible laserdiode sensing device maintains a tiny spot size, with little divergence over distances up to 100 feet using a 2" x 2" retroreflector. The unit provides precise leading and trailing edge detection of products on conveyors and packaging machinery. Sensing of very tightly spaced small objects is also possible for purposes of counting and batching. S m a l l Q u i c k D i s c o n ne c t L a se r S ensor • Small footprint, M18 Compatible Housing • Visible Narrow Beam for Small Object Detection • Easy Setup • 0 to 160 ft. Range • Retroreflective and Diffuse • Input 10-30 VDC, Dual Output (PNP & NPN) • Separate Power and Signal LED's • PICO Style Quick Disconnect or 6" Pig Tail Available \\\SPECIFICATIONS SUPPLY VOLTAGE 10 to 30 VDC SUPPLY CURRENT 30 mA maximum OUTPUT CONFIGURATION One current sourcing (PNP) and one current sinking (NPN) open collector transistor OUTPUT MODE Set by “Light ON” / “Dark ON” switch OUTPUT RATING 200 mA maximum each output. Output saturation less than 0.2 volts @ 10mA and less than 0.6 volts at 200mA OUTPUT PROTECTION Protected against current overload, inductive transients, no false pulse on power-up RESPONSE TIME Less than 2 ms, >500 Hz INDICATORS Power green Output On red ADJUSTMENTS 8 turn intensity control, two position Light operate or Dark operate SENSING BEAM 670 nm visible red AVERAGE OUTPUT POWER 150 mW SENSING RANGES Retroreflective 100 feet with 2" X 2" reflector, ATC p/n 0000-181-52-00, Minimum target object size 2" X 2" (At maximum intensity, the unit may prox out to 36") Diffuse (proxing) 12 in. with .25" X .25" Kodak 90% white card HOUSING PIG TAIL 6" cable PVC .175 dia. micro connector 4 pin CONNECTOR 4 pin, M8x1, pico style. Pin 1 - power, Pin 2 - NPN output, Pin 3 - common, Pin 4 - PNP output OPERATING TEMPERATURE 32° to 104°F (0 to 40°C) WEIGHT <1 oz. MODEL NUMBER >>>>>> 770 04 N 3 B Type 8AR 04 N 3 B QP Retroreflective Polarized Retroreflective 8BR Operation Switch Selectable (light-ON/ dark-ON) Power Requirements 10-30 VDC Beam Type Laser Output Bi-Polar (NPN & PNP) Features Quick Disconnect Standard (PICO M8 4 PIN) Special K Pig Tail 6 in. Standard (micro 4 pin) PT ACCESSORIES 7700-025-01-00: Connector/Cable, 4 Pin m8x1 pico/2 meters 0000-181-61-01: 1 ft. length, 1" reflective tape, high efficiency, exposed lens not protected by plastic film, adhesive backed. 0000-181-62-01: 1 ft. length, 1" reflective tape, medium efficiency, protected with clear plastic film, adhesive backed. 0000-181-63-01: 1 ft. length, 1" reflective tape, low efficiency, exposed lens, high temp., adhesive backed. 7022-210-04-00: 5/8" diameter retroreflector POWER ON: GREEN INTENSITY DARK ON LIGHT ON INT DK LT OUTPUT ON: RED

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls 7708 Series M18 Laser Photoelectric Sensor (Quick Disconnect) - 2

800.727.5646 automatictiming.com Automatic Timing & Controls 7708 Series Laser Sensor //7708 Series 161 1.825 46.35 .281 7.14 .625 15.87 Ø.145 3.680 2X .625 15.87 18 × 1mm thread 1.060 26.90 1.323 33.6 .500 12.7 1 Brown 2 White 3 Blue 4 Black 10 - 30 VDC NPN Comm PNP HOUSING CONNECTOR Mounting Bracket P/N 7700-114-01-00 CABLE CONNECTOR (MICRO) \\\DIMENSIONS (INCHES/MILLIMETERS) \\\WIRING

Open the catalog to page 2
