Marsh Bellofram Automatic Timing & Controls 7706 Series Convergent Beam Laser Sensor

Product catalog summary

Overview: The 7706 Series Convergent Beam Sensor is designed for small object detection with a sensing capability of less than 2mm. It operates on a supply voltage of 10-30 VDC and features dual output configurations (PNP & NPN). The sensor is equipped with background suppression beyond 4-1/2 inches and offers selectable light-on and dark-on operation modes.

Specifications:

Supply Voltage: 10 to 30 VDC
Supply Current: 30 mA maximum
Output Configuration: One current sourcing (PNP) and one current sinking (NPN) open collector transistor
Output Rating: 200 mA maximum each output with specific voltage saturation levels
Output Protection: Protected against current overload and inductive transients
Response Time: Less than 2 ms, >500 Hz
Indicators: Power (Red), Output On (Green)
Adjustments: Single turn intensity control, two position light/dark operate switch
Sensing Beam: 670 nm visible red
Average Output Power: Less than 150 nW
Sensing Ranges: Available in 4", 6", and 8" versions with specific ranges for different reflectivity levels
Housing: NEMA 6
Connector: 4 pin, M8x1, pico style
Operating Temperature: 32° to 104°F (0 to 40°C)
Weight: Less than 1 oz.

Model Number: The model number includes type, operation, power requirements, beam type, and output features. For example, 770 04 N 3 B indicates a 4" sensing distance with switch selectable operation.

Accessories: Various connectors, cables, reflective tapes, and retro-reflectors are available to complement the sensor's functionality.

Wiring: The sensor includes a detailed wiring guide with color-coded connections for power, NPN, common, and PNP outputs.

Catalog excerpts

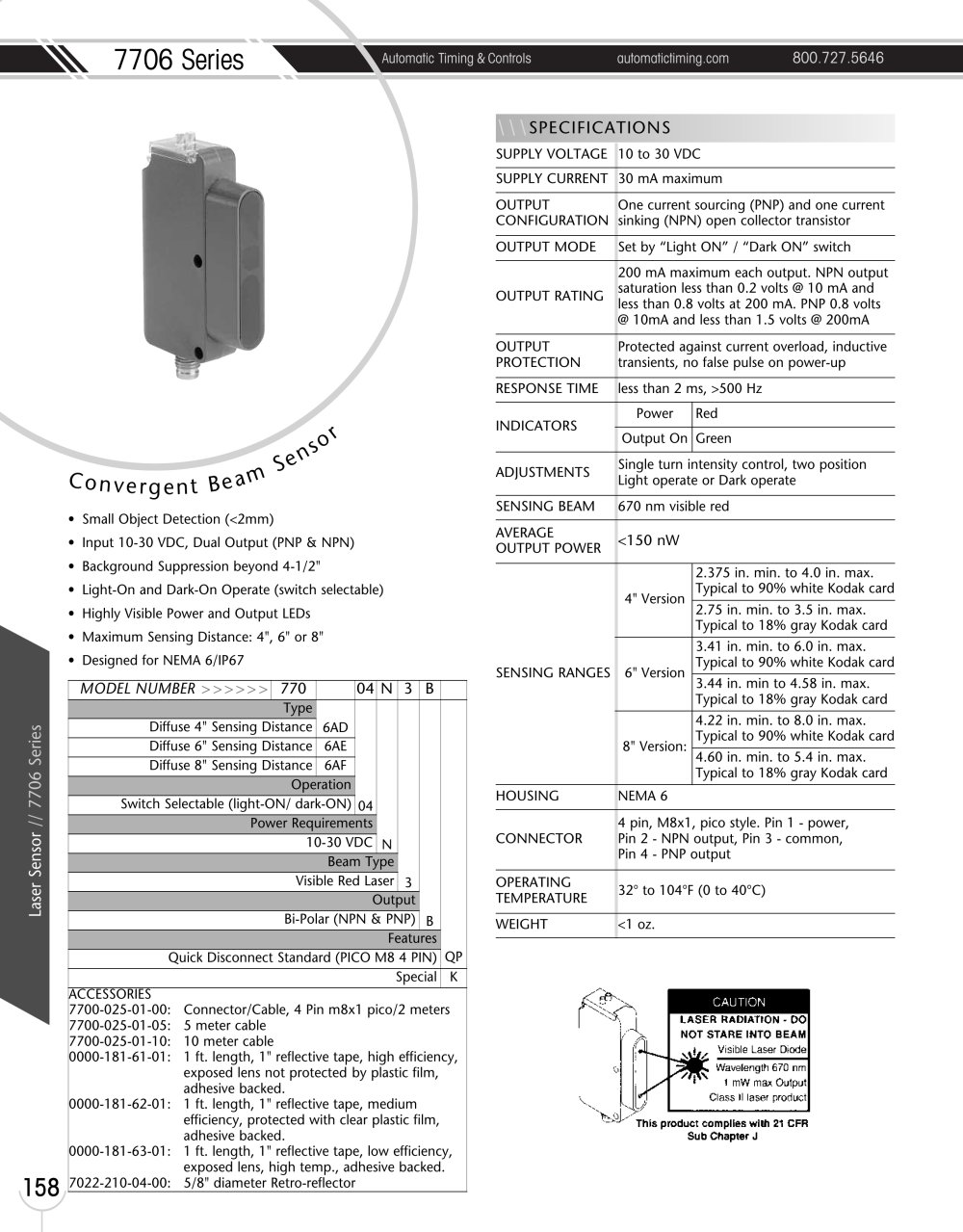

Marsh Bellofram Automatic Timing & Controls 7706 Series Convergent Beam Laser Sensor -1

7706 Series Automatic Timing & Controls automatictiming.com 800.727.5646 158Laser Sensor // 7706 Series C o n v e r g e n t Be a m Se n s o r • Small Object Detection (<2mm) • Input 10-30 VDC, Dual Output (PNP & NPN) • Background Suppression beyond 4-1/2" • Light-On and Dark-On Operate (switch selectable) • Highly Visible Power and Output LEDs • Maximum Sensing Distance: 4", 6" or 8" • Designed for NEMA 6/IP67 \\\SPECIFICATIONS SUPPLY VOLTAGE 10 to 30 VDC SUPPLY CURRENT 30 mA maximum OUTPUT CONFIGURATION One current sourcing (PNP) and one current sinking (NPN) open collector transistor OUTPUT MODE Set by “Light ON” / “Dark ON” switch OUTPUT RATING 200 mA maximum each output. NPN output saturation less than 0.2 volts @ 10 mA and less than 0.8 volts at 200 mA. PNP 0.8 volts @ 10mA and less than 1.5 volts @ 200mA OUTPUT PROTECTION Protected against current overload, inductive transients, no false pulse on power-up RESPONSE TIME less than 2 ms, >500 Hz INDICATORS Power Red Output On Green ADJUSTMENTS Single turn intensity control, two position Light operate or Dark operate SENSING BEAM 670 nm visible red AVERAGE OUTPUT POWER <150 nW SENSING RANGES 4" Version 2.375 in. min. to 4.0 in. max. Typical to 90% white Kodak card 2.75 in. min. to 3.5 in. max. Typical to 18% gray Kodak card 6" Version 3.41 in. min. to 6.0 in. max. Typical to 90% white Kodak card 3.44 in. min to 4.58 in. max. Typical to 18% gray Kodak card 8" Version: 4.22 in. min. to 8.0 in. max. Typical to 90% white Kodak card 4.60 in. min. to 5.4 in. max. Typical to 18% gray Kodak card HOUSING NEMA 6 CONNECTOR 4 pin, M8x1, pico style. Pin 1 - power, Pin 2 - NPN output, Pin 3 - common, Pin 4 - PNP output OPERATING TEMPERATURE 32° to 104°F (0 to 40°C) WEIGHT <1 oz. MODEL NUMBER >>>>>> 770 04 N 3 B Type 6AD 04 N 3 B QP Diffuse 4" Sensing Distance Diffuse 6" Sensing Distance 6AE Diffuse 8" Sensing Distance 6AF Operation Switch Selectable (light-ON/ dark-ON) Power Requirements 10-30 VDC Beam Type Visible Red Laser Output Bi-Polar (NPN & PNP) Features Quick Disconnect Standard (PICO M8 4 PIN) Special K ACCESSORIES 7700-025-01-00: Connector/Cable, 4 Pin m8x1 pico/2 meters 7700-025-01-05: 5 meter cable 7700-025-01-10: 10 meter cable 0000-181-61-01: 1 ft. length, 1" reflective tape, high efficiency, exposed lens not protected by plastic film, adhesive backed. 0000-181-62-01: 1 ft. length, 1" reflective tape, medium efficiency, protected with clear plastic film, adhesive backed. 0000-181-63-01: 1 ft. length, 1" reflective tape, low efficiency, exposed lens, high temp., adhesive backed. 7022-210-04-00: 5/8" diameter Retro-reflector

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls 7706 Series Convergent Beam Laser Sensor -2

800.727.5646 automatictiming.com Automatic Timing & Controls 7706 Series Laser Sensor// 7706 Series 159 SENSING AREAS HOUSING CONNECTOR 1 Brown 2 White 3 Blue 4 Black 10 - 30 VDC NPN Comm PNP Mounting Bracket P/N 7700-114-01-00 CABLE CONNECTOR (MICRO) \\\DIMENSIONS (INCHES/MILLIMETERS) \\\WIRING
