Marsh Bellofram Automatic Timing & Controls 7600 Series Delta Snub Nose Photoelectric Sensor

Marsh Bellofram Automatic Timing & Controls 7600 Series Delta Snub Nose Photoelectric Sensor
3Pages

Catalog excerpts

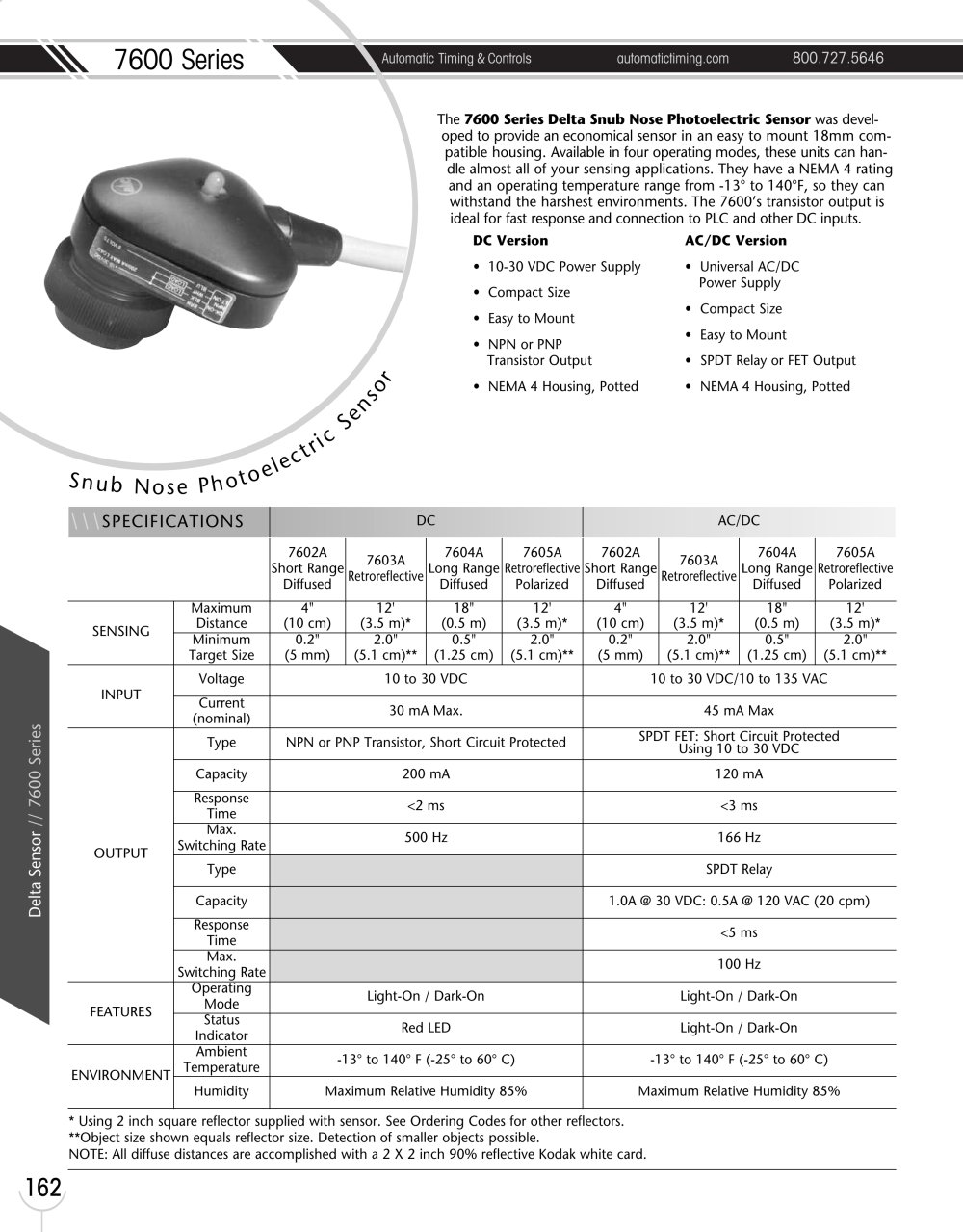

Marsh Bellofram Automatic Timing & Controls 7600 Series Delta Snub Nose Photoelectric Sensor - 1

7600 Series Automatic Timing & Controls automatictiming.com 800.727.5646 162 Delta Sensor // 7600 Series The 7600 Series Delta Snub Nose Photoelectric Sensor was developed to provide an economical sensor in an easy to mount 18mm compatible housing. Available in four operating modes, these units can handle almost all of your sensing applications. They have a NEMA 4 rating and an operating temperature range from -13° to 140°F, so they can withstand the harshest environments. The 7600’s transistor output is ideal for fast response and connection to PLC and other DC inputs. S n u b N o s e P h o t o e l e c t r i c Sensor DC Version • 10-30 VDC Power Supply • Compact Size • Easy to Mount • NPN or PNP Transistor Output • NEMA 4 Housing, Potted AC/DC Version • Universal AC/DC Power Supply • Compact Size • Easy to Mount • SPDT Relay or FET Output • NEMA 4 Housing, Potted \\\SPECIFICATIONS DC AC/DC 7602A Short Range Diffused 7603A Retroreflective 7604A Long Range Diffused 7605A Retroreflective Polarized 7602A Short Range Diffused 7603A Retroreflective 7604A Long Range Diffused 7605A Retroreflective Polarized SENSING Maximum Distance 4" (10 cm) 12' (3.5 m)* 18" (0.5 m) 12' (3.5 m)* 4" (10 cm) 12' (3.5 m)* 18" (0.5 m) 12' (3.5 m)* Minimum Target Size 0.2" (5 mm) 2.0" (5.1 cm)** 0.5" (1.25 cm) 2.0" (5.1 cm)** 0.2" (5 mm) 2.0" (5.1 cm)** 0.5" (1.25 cm) 2.0" (5.1 cm)** INPUT Voltage 10 to 30 VDC 10 to 30 VDC/10 to 135 VAC Current (nominal) 30 mA Max. 45 mA Max OUTPUT Type NPN or PNP Transistor, Short Circuit Protected SPDT FET: Short Circuit Protected Using 10 to 30 VDC Capacity 200 mA 120 mA Response Time <2 ms <3 ms Max. Switching Rate 500 Hz 166 Hz Type SPDT Relay Capacity 1.0A @ 30 VDC: 0.5A @ 120 VAC (20 cpm) Response Time <5 ms Max. Switching Rate 100 Hz FEATURES Operating Mode Light-On / Dark-On Light-On / Dark-On Status Indicator Red LED Light-On / Dark-On ENVIRONMENT Ambient Temperature -13° to 140° F (-25° to 60° C) -13° to 140° F (-25° to 60° C) Humidity Maximum Relative Humidity 85% Maximum Relative Humidity 85% * Using 2 inch square reflector supplied with sensor. See Ordering Codes for other reflectors. **Object size shown equals reflector size. Detection of smaller objects possible. NOTE: All diffuse distances are accomplished with a 2 X 2 inch 90% reflective Kodak white card.

Open the catalog to page 1

Marsh Bellofram Automatic Timing & Controls 7600 Series Delta Snub Nose Photoelectric Sensor - 2

800.727.5646 automatictiming.com Automatic Timing & Controls 7600 Series Delta Sensors // 7600 Series 163 \\\DIMENSIONS (INCHES/MILLIMETERS) ACCESSORIES 7650-715-01-00: Mounting Nuts (18mm) 7640-260-01-00: Right Angle Adapter 7680-025-22-00: Quick-Disconnect mating cable (AC only) 2m 7680-025-23-00: Quick-Disconnect mating cable (DC only) 2m 7600-260-53-00: Quick-Disconnect mating cable (DC only) 10m REFLECTORS: 7002-210-01-00: 3" Diameter Retroreflective Target Sensing Distance–9.0 ft. 7002-210-02-00: 1 5/8" Diameter Retroreflective Target Sensing Distance–5.5 ft. 7002-210-03-00: 7/8"...

Open the catalog to page 2

Marsh Bellofram Automatic Timing & Controls 7600 Series Delta Snub Nose Photoelectric Sensor - 3

7600 Series Automatic Timing & Controls automatictiming.com 800.727.5646 164Delta Sensors // 7600 Series DC VERSION AC/DC VERSION NOTE: The load connected to the black wire is energized when the LED is on. The load connected to the white wire is energized when the LED is off. NOTE: The quick disconnect AC/DC units have output common internally wired NOTE: The load connected to the red wire is energized when the LED is on. The load connected to the green wire is energized when the LED is off. CABLED VERSION QD VERSION CABLED VERSION QD VERSION QUICK DISCONNECT QUICK DISCONNECT QD VERSION...
