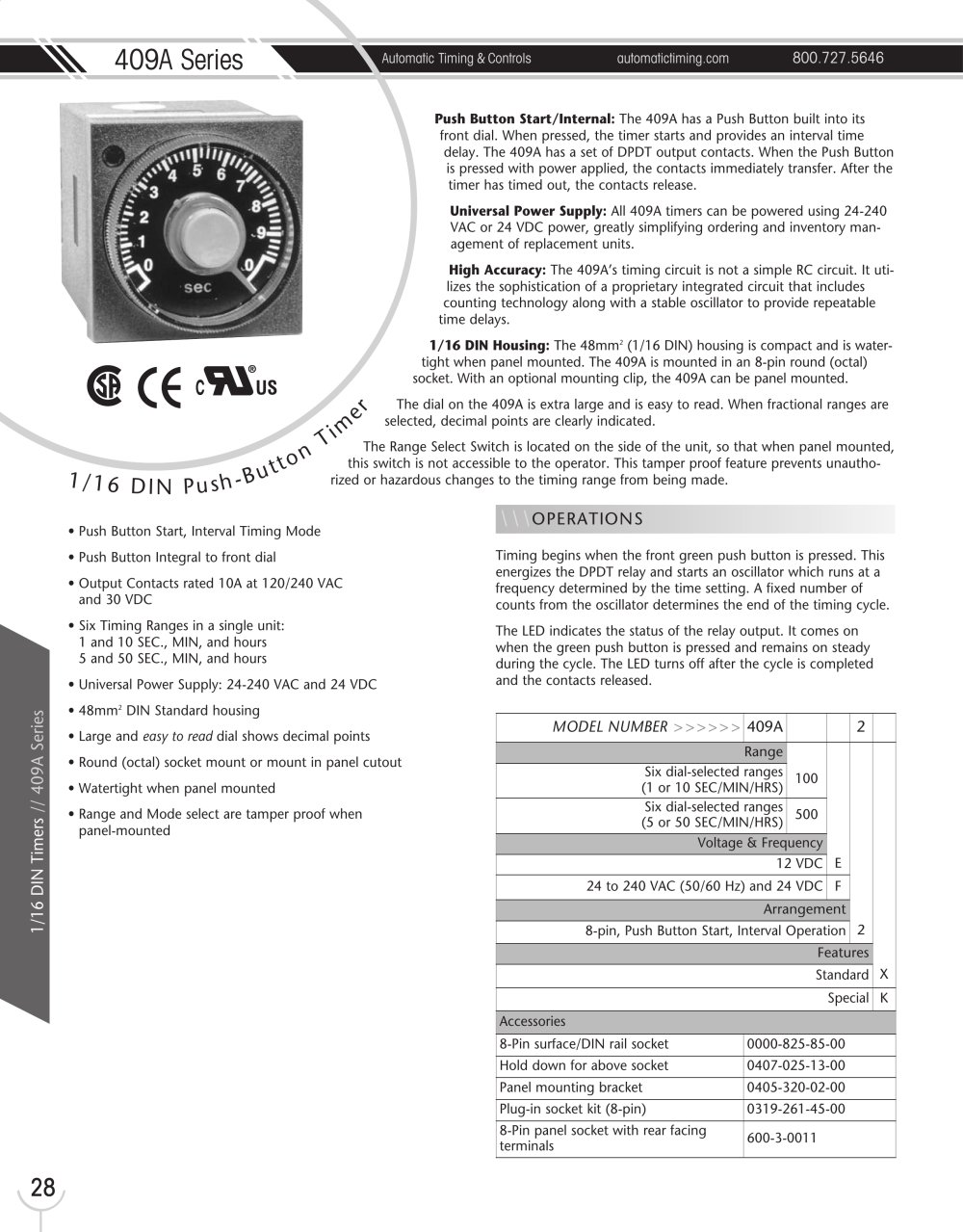

Automatic Timing & Controls automatictiming.com 800.727.5646 281/16 DIN Timers // 409A Series 1 / 1 6 D I N P u s h - B u t t on T imer Push Button Start/Internal: The 409A has a Push Button built into its front dial. When pressed, the timer starts and provides an interval time delay. The 409A has a set of DPDT output contacts. When the Push Button is pressed with power applied, the contacts immediately transfer. After the timer has timed out, the contacts release. Universal Power Supply: All 409A timers can be powered using 24-240 VAC or 24 VDC power, greatly simplifying ordering and inventory management of replacement units. High Accuracy: The 409A’s timing circuit is not a simple RC circuit. It utilizes the sophistication of a proprietary integrated circuit that includes counting technology along with a stable oscillator to provide repeatable time delays. 1/16 DIN Housing: The 48mm2 (1/16 DIN) housing is compact and is watertight when panel mounted. The 409A is mounted in an 8-pin round (octal) socket. With an optional mounting clip, the 409A can be panel mounted. The dial on the 409A is extra large and is easy to read. When fractional ranges are selected, decimal points are clearly indicated. The Range Select Switch is located on the side of the unit, so that when panel mounted, this switch is not accessible to the operator. This tamper proof feature prevents unauthorized or hazardous changes to the timing range from being made. Timing begins when the front green push button is pressed. This energizes the DPDT relay and starts an oscillator which runs at a frequency determined by the time setting. A fixed number of counts from the oscillator determines the end of the timing cycle. The LED indicates the status of the relay output. It comes on when the green push button is pressed and remains on steady during the cycle. The LED turns off after the cycle is completed and the contacts released. • Push Button Start, Interval Timing Mode • Push Button Integral to front dial • Output Contacts rated 10A at 120/240 VAC and 30 VDC • Six Timing Ranges in a single unit: 1 and 10 SEC., MIN, and hours 5 and 50 SEC., MIN, and hours • Universal Power Supply: 24-240 VAC and 24 VDC • 48mm2 DIN Standard housing • Large and easy to read dial shows decimal points • Round (octal) socket mount or mount in panel cutout • Watertight when panel mounted • Range and Mode select are tamper proof when panel-mounted MODEL NUMBER >>>>>> 409A 2 Range 100 E 2 X Six dial-selected ranges (1 or 10 SEC/MIN/HRS) Six dial-selected ranges (5 or 50 SEC/MIN/HRS) 500 Voltage & Frequency 12 VDC 24 to 240 VAC (50/60 Hz) and 24 VDC F Arrangement 8-pin, Push Button Start, Interval Operation Features Standard Special K Accessories 8-Pin surface/DIN rail socket 0000-825-85-00 Hold down for above socket 0407-025-13-00 Panel mounting bracket 0405-320-02-00 Plug-in socket kit (8-pin) 0319-261-45-00 8-Pin panel socket with rear facing terminals 600-3-0011 409A Series \\\OPERATIONS

Open the catalog to page 1

800.727.5646 automatictiming.com Automatic Timing & Controls 409A Series 1/16 DIN Timers // 409A Series 29 Terminal Wiring BEFORE START TIMING TIMED OUT O = LOAD OFF O O X X = LOAD ON Model 409A...F2X \\\SPECIFICATIONS MODELS 409A100F2X Push Button Start, Interval Timing with (1) DPDT relay (1 or 10 SEC/MIN/HRS) 409A500F2X Push Button Start, Interval Timing with (1)DPDT relay (5 or 50 SEC/MIN/HRS) Both models available in 6 ranges from 1 SEC to 10 HRS or 5 SEC to 50 HRS CONTACT RATING Rated 10 AMPS resistive at 30 VDC or 250 VAC (or less) 1/8 HP @ 120 VAC 1/4 HP @ 240 VAC 240 VA @ 240 VAC...
