Measuring videos MA 331ES-705-Z1

Product catalog summary

Overview: The document provides technical specifications for the MA 331ES-705-Z1 video measuring system by Marcel Aubert SA. It includes details on the components and capabilities of the system, designed for precise optical measurements.

System Components:

Base MA 331ES: Features a co-ordinate table MA 143-5 with a range of 50 x 50 mm, equipped with two Sylvac digital micrometers, a zoom-optic MA 705-Z1 with a CCD color camera, and an LED incident ringlight MA 114-029-14. The system is operated using Metric measuring software.
Zoom Optics MA 705-Z1: Offers a 6.5x zoom capability, with or without four position-settings. It includes a 0.67x adapter and a fixing diameter of 39.7 mm.

Optical Specifications:

Field of View: Varies with additional lenses, ranging from 8.38 x 6.29 mm to 1.05 x 0.79 mm.
Working Distance: Ranges from 356 mm to 36 mm depending on the lens configuration.

Key Features:

High precision measurement capabilities with digital micrometers.
Versatile zoom optics for detailed imaging.
Integrated LED lighting for enhanced visibility.

Catalog excerpts

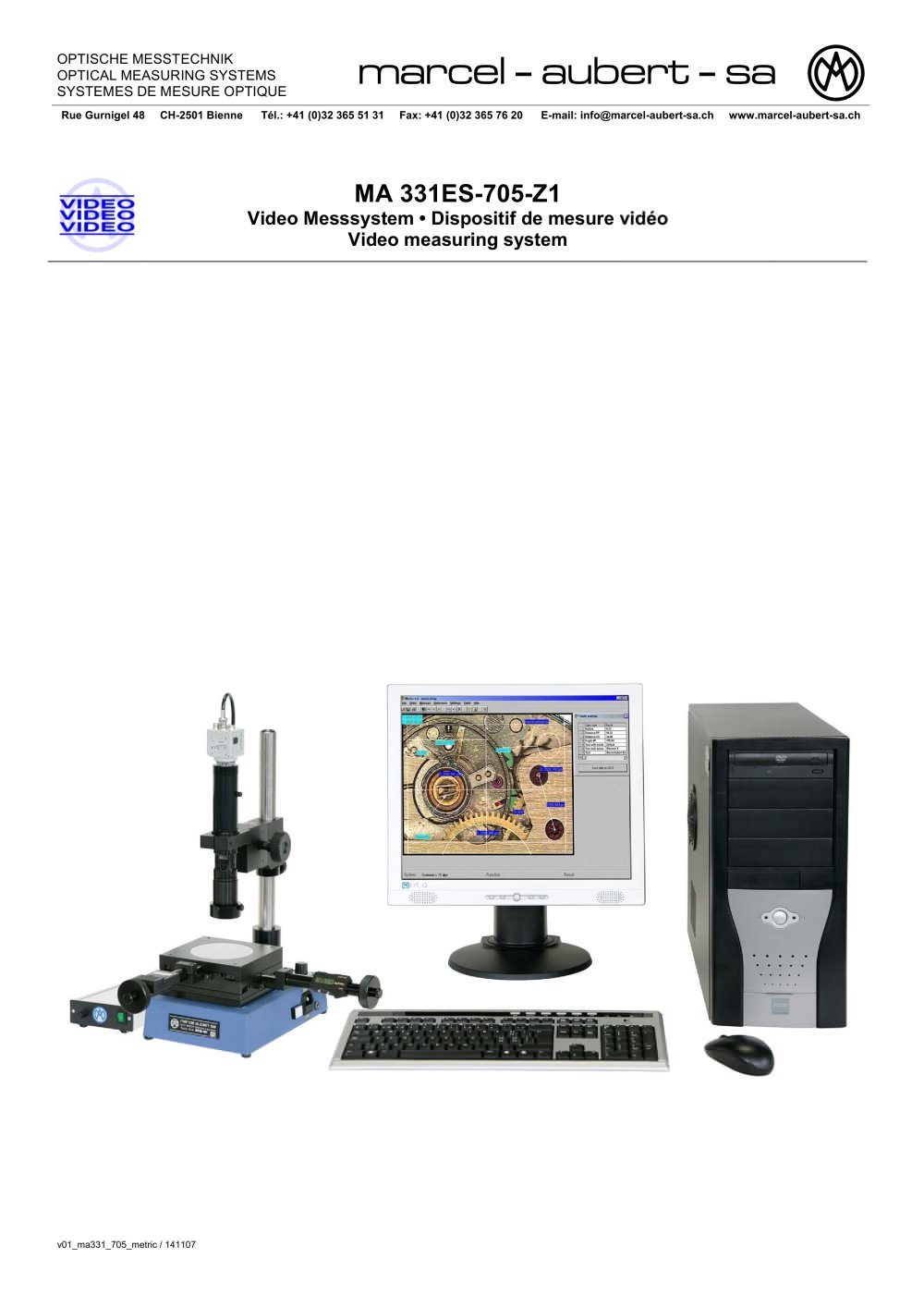

OPTISCHE MESSTECHNIK OPTICAL MEASURING SYSTEMS SYSTEMES DE MESURE OPTIQUE Video Messsystem ? Dispositif de mesure vido Video measuring system > v01_ma331_705_metric / 141107 size="-3">

Open the catalog to page 1

Stativ MA 331ES Kreuztisch MA 143-5, Weg 50 x 50 mm 2 Sylvac - Digital-Mikrometer Zoom-Optik MA 705-Z1 mit CCD-Farbkamera LED Ringauflichtbeleuchtung MA 114-029-14 Messsoftware Metric Base MA 331ES Table en croix MA 143-5, course 50 x 50 mm 2 micromtres digitaux Sylvac Optique zoom MA 705-Z1 avec camra couleur CCD Eclairage annulaire 詩piscopique LED MA 114-029-14 Logiciel de mesure Metric Base MA 331ES Co-ordinate table MA 143-5, range 50 x 50 mm 2 digital micrometers Sylvac Zoom-optic MA 705-Z1 with CCD colour camera LED incident ringlight MA 114-029-14 Measuring software Metric MA 705-Z1 Zoom-Optik...
