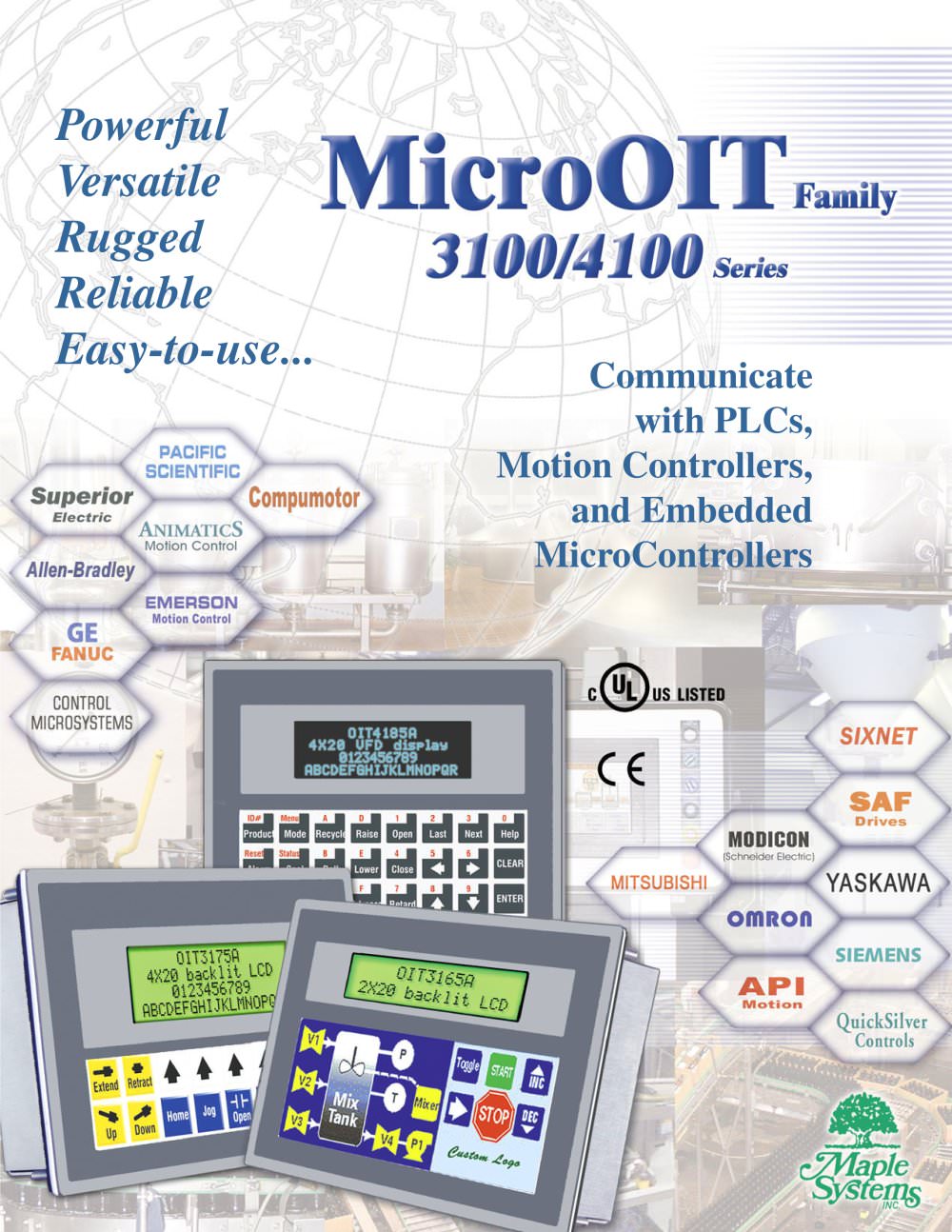

MicroOIT Alphanumeric OITs

Product catalog summary

Overview: The Maple Systems 3100/4100 Series MicroOITs are designed to provide powerful, versatile, and reliable operator interface terminals. They offer unmatched functionality and flexibility, making them ideal for communicating with PLCs, motion controllers, and embedded microcontrollers. These MicroOITs are cost-effective replacements for traditional push buttons, switches, displays, dials, and lamps.

Key Features:

User-Definable Keypad: The MicroOITs feature a customizable keypad with up to 24 user-definable keys, allowing for a tailored interface that meets specific application needs.
Display Options: Available in 2 or 4-line LCD or VFD displays, providing clear and flexible screen configurations.
Communication Capabilities: Supports communication with over 75 families of controllers, featuring RS-232/RS-422/RS-485 serial ports and various baud rates.
Screen Types: Includes message, recipe, alarm, menu, and help screens, with up to 500 user-definable screens available.
Rugged Design: Sealed to NEMA 4/4X(indoor)/12 standards, ensuring durability in various industrial environments.

Specifications:

Dimensions: 6” x 4” x 1.77” for most models.
Operating Temperature: Ranges from 14 to 149°F (-10 to 65°C) for VFD displays.
Power Requirements: Input voltage of 12 to 30 VDC with typical power usage of 2.5 watts.
Certifications: Meets CE and UL standards for electric noise immunity and safety.

Additional Features:

Configuration Software: Easy-to-use Windows-based software for application development and modification.
Custom Legends: Slide-in legends allow for easy labeling and customization of the keypad.
Screen Display Enhancements: Features like linear scaling, blinking characters, and horizontal scrolling enhance communication clarity.

Conclusion: The 3100/4100 Series MicroOITs provide a flexible, economical solution for operator interface needs, offering extensive customization options and robust performance in industrial settings.
