Telescoping Cranes 600H

Product catalog summary

Features:

New design with a maximum capacity of 20 USt (18.1 t).
90 ft (27.4 m) four-section boom, extendable to 140 ft (42.7 m) with an optional jib.
Equipped with Mentor Load Moment Indicator (LMI) for overload protection.
Proportional boom extension and high-performance planetary winch.
Heavy-duty triple pump hydraulics and easy glide boom wear pads for smoother operation.
Standard and rear mount options with adjustable swing speed and 375˚ non-continuous rotation.
Pre-painted components for improved serviceability and appearance.
ISO 9001:2000 approved quality management system.

Mounting Configurations:

Configuration 1: 180˚ full capacity work area with torsion box.
Configuration 2: 360˚ full capacity work area with torsion box.
Configuration 3: Rear mount with 360˚ full capacity work area.
All configurations require specific stability weights and frame section modulus.

Specifications:

Winch data includes various pull and speed capacities depending on the layer.
Standard winch supplied with a 9/16 in diameter cable with a breaking strength of 38,500 lb.

Capacities:

Load rating charts provided for different boom and jib combinations.
Specific load ratings depend on boom length and angle, with detailed charts available upon request.

Notes:

All configurations and operations must adhere to factory requirements and safety standards.
Electronic versions of manuals are available for improved accessibility.

Specifications and Load Capacities:

Maximum load capacities for crane booms and jib extensions are outlined, emphasizing maximums for each section.
Load ratings are for cranes mounted on factory-approved trucks with outriggers fully or mid-span extended on a firm, level surface.
The crane must be leveled using the level indicator, and load reductions are necessary for factors like wind and ground conditions.
Overloading can lead to structural collapse or instability.

Operational Guidelines:

Maintain a distance of at least 10 ft (3m) from live power lines.
Accessories' weights must be deducted from the load chart capacities.
At least three wraps of loadline must remain on the drum at all times.
Only specified cables should be used with the machine.

Loadline Equipment Deductions:

Downhaul weight: 150 lb (68 kg)
One sheave block: 200 lb (90.7 kg)
Two sheave block: 355 lb (161 kg)

Load Rating Charts:

Series 671H and 680H charts provide detailed load capacities based on boom length and angle.
Shaded areas in charts indicate structurally limited capacities.
Specific operating modes and codes are provided for different configurations.

Safety Precautions:

Do not deadhead lineblock against boom tip when extending or winching.
Ensure outrigger lock pins are engaged when required.
The document serves as a guide, and individual crane load charts and instructions must be read and understood before operation.

Specifications and Procedures:

Operate the jib by radius when the main boom is fully extended. Increase the boom angle if necessary to maintain the loaded radius.
Operate the jib by boom angle when the main boom is not fully extended. Do not exceed rated jib capacities at reduced boom lengths.

Load Rating and Safety Guidelines:

The load rating charts provided are guides and should not be used for crane operation without consulting the crane's specific load chart and operating instructions.
Maximum allowable loads are specified for cranes mounted on factory-approved trucks with outriggers fully or mid-span extended on a firm, level surface.
Operators must consider factors such as wind, ground conditions, and operating speeds, which may affect load handling.
Overloading can lead to structural collapse or instability.
Maintain at least three wraps of loadline on the drum at all times and use only specified cables.

Accessories:

Radio Remote Controls: Operate up to 250 ft (76 m) range.
One-Person Basket: 300 lb (139 kg) capacity with safety features.
Heavy-duty Personnel Basket: 1,200 lb (544 kg) capacity for four passengers.
Hydraulic Oil Cooler: Automatic system for continuous operation.
Winch Drum Rotation Indicator and Last Wrap Indicator available.

Contact Information:

Contact details for various regions including the Americas, Europe, Middle East, Africa, and Asia-Pacific are provided for further assistance and information.

Catalog excerpts

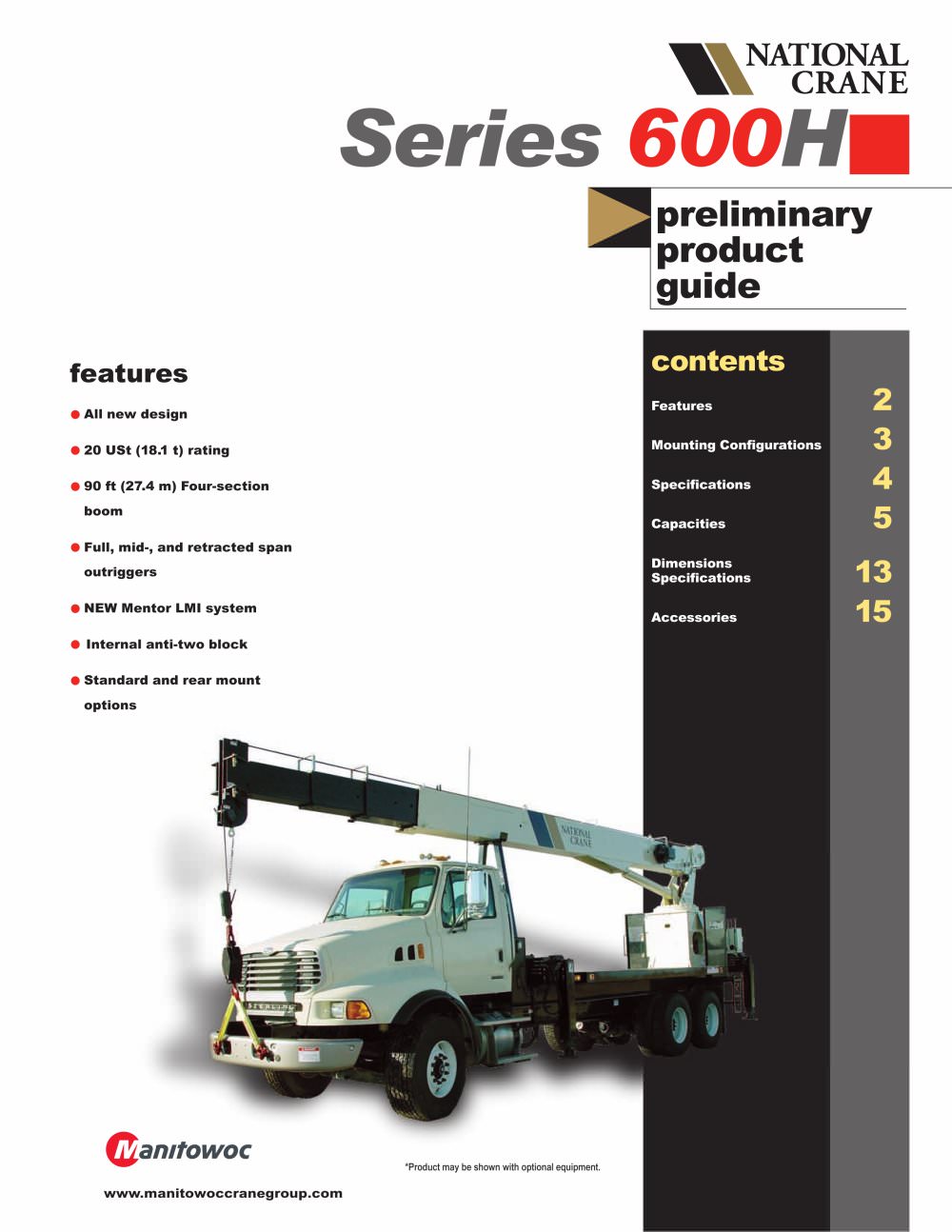

preliminary product guide features • All new design • 20 USt (18.1 t) rating • 90 ft (27.4 m) Four-section boom • Full, mid-, and retracted span outriggers • NEW Mentor LMI system • Internal anti-two block • Standard and rear mount options Series 600H contents Features 2 Mounting Configurations 3 Specifications 4 Capacities 5 Dimensions Specifications 13 Accessories 15 *Product may be shown with optional equipment. www.manitowoccranegroup.com

Open the catalog to page 1

features 2 Why Buy a National Crane Series 600H: 600H • 20 USt (18.1 t) maximum capacity • 140 ft (42.7 m) w/optional jib maximum vertical reach* • 100 ft (30.5 m) maximum vertical hydraulic reach* • Mentor Load Moment Indicator system (LMI) • Proportional boom extension • High performance planetary winch • Heavy-duty triple pump hydraulics * Maximum vertical reach is groundlevel to boom tip height at maximum extension and angle with outriggers/stabilizers fully extended. • 20 USt (18.1 t) Rating – The new 600H provides a 20 USt (18.1 t) capacity with six boom length options. • 90 ft (27.4 m)...

Open the catalog to page 2

13 600H dimensions specifications standard mount * ABOVE WEIGHTS DO NOT INCLUDE RESERVOIR, RSOD, JIB, PTO, PUMP, BED ** WEIGHT INCLUDES BOOM, WINCH, ROPE, TURRET, LIFT CYLINDER, FRAME, CONTROLS, OUTRIGGERS, PLATFORMS, TORQUE BOX, BOOM REST, BUMPER, DOWNHAUL WEIGHT UNITS IN INCHES UNLESS SPECIFIED G CENTER OF GRAVITY FROM CENTERLINE Series G H DRY WEIGHT* W/OIL WEIGHT* 671H 69.29 in [176 cm] 52.92 in [134 cm] 15,816 lb [7,174 kg] 16,659 lb [7,557 kg] 680H 64.93 in [165 cm] 55.95 in [142 cm] 16,236 lb [7,365 kg] 17,090 lb [7,752 kg] 690H 77.45 in [197 cm] 60.08 in [153 cm] 17,653 lb [8,007 kg]...

Open the catalog to page 13

14 600H dimensions specifications rear mount * ABOVE WEIGHTS DO NOT INCLUDE RESERVOIR, RSOD, JIB, PTO, PUMP, BED ** WEIGHT INCLUDES BOOM, WINCH, ROPE, TURRET, LIFT CYLINDER, FRAME, CONTROLS, OUTRIGGERS, PLATFORMS, TORQUE BOX, BOOM REST, BUMPER, DOWNHAUL WEIGHT UNITS IN INCHES UNLESS SPECIFIED G CENTER OF GRAVITY FROM CENTERLINE Series G H DRY WEIGHT* W/OIL WEIGHT* 671H 95.90 in [244 cm] 51.25 in [130 cm] 17,158 lb [7,783 kg] 17,308 lb [7,851 kg] 680H 89.98 in [229 cm] 55.03 in [140 cm] 17,927 lb [8,132 kg] 18,088 lb [8,205 kg] 690H 99.48 in [253 cm] 57.34 in [146 cm] 18,718 lb [8,490 kg] 18,887...

Open the catalog to page 14

600H accessories 15 Radio Remote Controls – Eliminate the handling and maintenance concerns that accompany cabled remotes. Operate to a range of about 250 ft (76 m), varying with conditions. • RB4R One-Person Basket – Strong but lightweight steel basket with 300 lb (139 kg) capacity, gravity hung • B1-S with swing lock and full body harness. • 2B1-S (for dual locking baskets) Heavy-duty Personnel Basket – 1,200 lb (544 kg) capacity steel basket with safety loops for four passengers. Gravity leveling 72 x 42 inch (183 x 107 cm) platform. Fast attachment and secure locking • BSA-1 systems. Load...

Open the catalog to page 15
