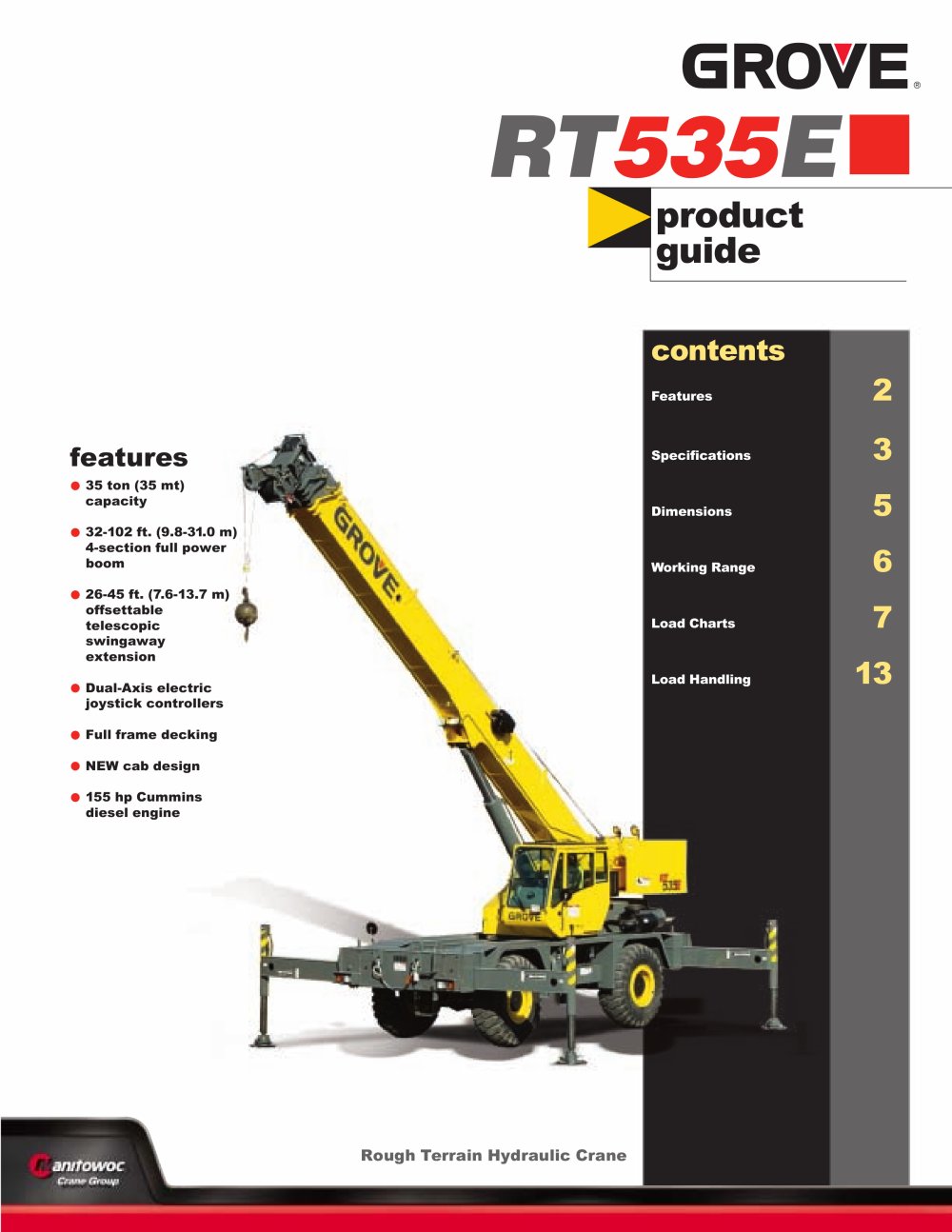

product guide features • 35 ton (35 mt) capacity • 32-102 ft. (9.8-31.0 m) 4-section full power boom • 26-45 ft. (7.6-13.7 m) offsettable telescopic swingaway extension • Dual-Axis electric joystick controllers • Full frame decking • NEW cab design • 155 hp Cummins diesel engine Rough Terrain Hydraulic Crane contents Features 2 Specifications 3 Dimensions 5 Working Range 6 Load Charts 7 Load Handling 13 RT535E

Open the catalog to page 1

Cummins QSB 5.9L diesel engine provides plenty of power at the jobsite. New look dash control panel designed to offer a less cluttered look while still offering full instrumentation. Rounded steel cab design provides aesthetic appeal. 2 features The RT535E incorporates a rectangular boom shape made from 100k.s.i. steel which eliminates weight and improves capacity compared to conventional shapes. Max. tip height of 154 ft. (47.0 m) w/45 ft. (13.7 m) tele. extension

Open the catalog to page 2

3 RT535E specifications Superstructure 32 ft. - 102 ft. (9.8 m - 31.0 m) four-section, synchronized full power boom. Maximum tip height: 110 ft. (33.6 m). *Optional Fixed Swingaway Extension 26 ft. (7.9 m) offsettable swingaway extension. Offsets 0° and 30°. Stows alongside base boom section. Maximum tip height: 135 ft. (41.1 m). *Optional Telescopic Swingaway Extension 26 ft. - 45 ft. (7.9 m - 13.7 m) offsettable telescoping swingaway extension. Offsets at 0° and 30°. Stows alongside base boom section. Maximum tip height: 154 ft. (47.0 m). Nose Four nylatron sheaves mounted on heavy duty...

Open the catalog to page 3

4 RT535E specifications Carrier Chassis Box section frame fabricated from high-strength, low alloy steel. Front/rear towing and tie down lugs. Outrigger System Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position setting, 0%, 50% and fully extended. All steel fabricated, quick release type outrigger floats, 14.25 in. (362 mm) square. Maximum outrigger pad load: 58,000 lbs. (26 308 kg) Outrigger Controls Controls and crane level indicator located in cab. Engine (Tier II) Cummins QSB 5.9L diesel, six cylinders, 155...

Open the catalog to page 4

RT535E dimensions TAIL SWING 2387 mm [94 in.] RETRACTED 4267 mm [168 in.] MID EXTEND 6096 mm [240 in.] FULL EXTEND BOOM NOSE WIDTH WIDTH OF S/S WITH CAB (W/OUT CWT) M OVER TIRES WIDTH OF CWT 26o [144.20 in.] R3663 mm [20 FT 2 IN] 6147 mm 1963 mm [77.26 in.] [97.80 in.] 2484 mm [99.69 in.] 2532 mm H TRACK 641 mm [25.26 in.] B C D OUTSIDE CURB CLEARANCE E OUTSIDE TURNING RADIUS F INSIDE TURNING RADIUS G INSIDE CURB CLEARANCE A [25.19 in.] 640 mm BOOM 9834 mm [32 FT 3 IN] RETRACTED 31002 mm [101 FT 8 IN] EXTENDED O.A. HEIGHT TOP OF [18.34 in.] HOIST 466 mm [62.25 in.] 1581 mm [127.37 in.] 3235...

Open the catalog to page 5

6 RT535E 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0 140 130 120 110 100 90 80 70 60 50 40 30 20 10 102 90 80 70 60 50 40 32 70° 60° 50° 40° 30° 20° 10° 0° 30° OFFSET 0° OFFSET 45’ EXT. 26’ EXT. 76° MAX. BOOM ANGLE 8’ - 2” 7’ - 8” AXIS OF ROTATION Height from ground in feet Boom length and extension in feet Dimensions are for largest Grove furnished hook block and headache ball, with anti-two block activated. Operating radius in feet from axis of rotation working range Working range – 102 ft. Main Boom + 26-45 ft. extension THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO...

Open the catalog to page 6

8 RT535E RT535E load chart THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane. Pounds 32 - 102 ft. 26 - 45 ft. 9,920 lbs 100% 20’ spread 360º Feet **26 ft. LENGTH 45 ft. LENGTH #0021 #0023 #0041 #0043 0° OFFSET 30° OFFSET 0° OFFSET 30° OFFSET 35 8,200 (75) 40 8,200 (72.5) *5,250 (76) 45 8,200 (70.5) *5,780 (76) 5,250 (74) 50 8,150 (68) 5,780 (72.5) 5,050 (72) 55 7,500 (65) 5,450 (70) 4,650 (70) 60 6,440 (62.5) 4,910 (67) 4,290...

Open the catalog to page 8

10 RT535E load charts THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane. Pounds 32 - 102 ft. 26 - 45 ft. 9,920 lbs 50% 14’ spread 360º **26 ft. LENGTH 45 ft. LENGTH #4021 #4023 #4041 #4043 0° OFFSET 30° OFFSET 0° OFFSET 30° OFFSET 35 8,200 (75) 40 7,090 (72.5) *5,250 (76) 45 5,640 (70.5) *5,780 (76) 5,250 (74) 50 4,470 (68) 5,620 (72.5) 5,050 (72) 55 3,510 (65) 4,520 (70) 4,210 (70) 60 2,720 (62.5) 3,600 (67) 3,430 (67.5)...

Open the catalog to page 10

11 RT535E THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane. Pounds 32 - 60 ft. 9,920 lbs Stationary 360º Feet #9005 Main Boom Length in Feet 10 22,950 (65) 22,950 (70.5) *23,000 (76) 12 21,150 (60.5) 21,850 (67) 21,600 (72) 15 14,300 (54) 15,300 (62) (68.5) 15,950 13,850 (72.5) 20 8,330 (40.5) 9,180 (53.5) 9,710 (62) 9,940 (67.5) 25 5,100 (20) 5,880 (43) 6,260 (55) 6,530 (62) 30 3,810 (29.5) 4,100 (47) 4,360 (56) 35 2,630...

Open the catalog to page 11

13 RT535E When lifting over swingaway and/or jib combinations, deduct total weight of all load handling devices reeved over main boom nose directly from swingaway or jib capacity. NOTE: All load handling devices and boom attachments are considered part of the load and suitable allowances MUST BE MADE for their combined weights. Weights are for Grove furnished equipment. load handling Weight Reductions for Load Handling Devices 26 ft. Offsettable Boom Extension Pounds *Erected – 2,750 26 ft.-45 ft. Tele. Boom Extension Pounds *Erected (Retracted) – 3,850 *Erected (Extended) – 5,130...

Open the catalog to page 13

Constant improvement and engineering progress make it necessary that we reserve the right to make specification, equipment, and price changes without notice. Illustrations shown may include optional equipment and accessories, and may not include all standard equipment. Manitowoc Crane Group - Americas Manitowoc, Wisconsin Facility Tel: [Int + 001] 920 684 6621 Fax: [Int + 001] 920 683 6277 Shady Grove, Pennsylvania Facility Tel: [Int + 001] 717 597 8121 Fax: [Int + 001] 717 597 4062 Manitowoc Crane Group - EMEA Europe Middle East & Africa Tel: [Int + 33] (0) 191 565 6281 Fax: [Int + 33] (0)...
