Catalog excerpts

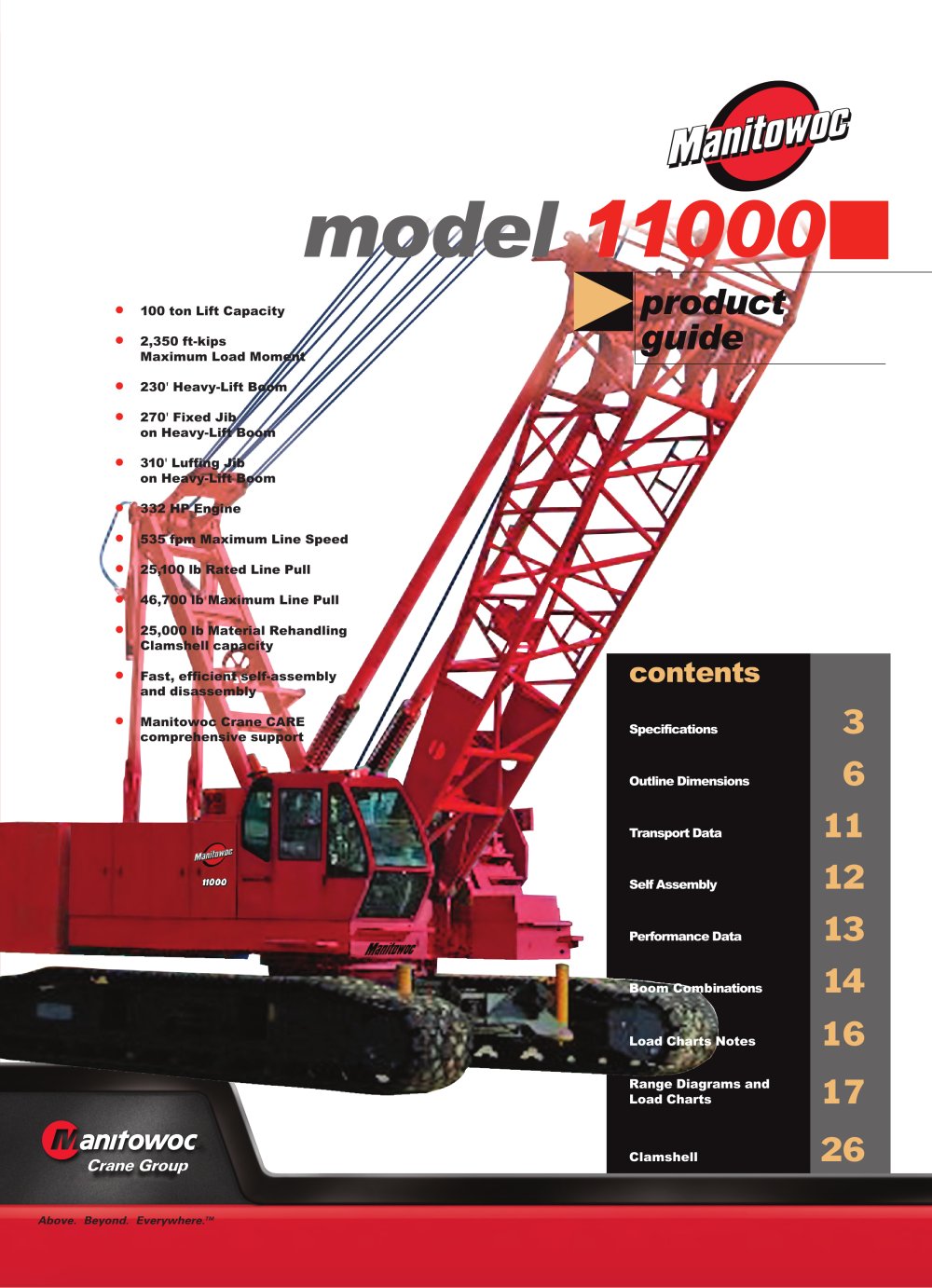

contents Specifications 3 Outline Dimensions 6 Transport Data 11 Self Assembly 12 Performance Data 13 Boom Combinations 14 Load Charts Notes 16 Range Diagrams and Load Charts 17 Clamshell 26 model 11000 product guide • 100 ton Lift Capacity • 2,350 ft-kips Maximum Load Moment • 230' Heavy-Lift Boom • 270' Fixed Jib on Heavy-Lift Boom • 310' Luffing Jib on Heavy-Lift Boom • 332 HP Engine • 535 fpm Maximum Line Speed • 25,100 lb Rated Line Pull • 46,700 lb Maximum Line Pull • 25,000 lb Material Rehandling Clamshell capacity • Fast, efficient self-assembly and disassembly • Manitowoc Crane CARE comprehensive support Above. Beyond. Everywhere.TM
