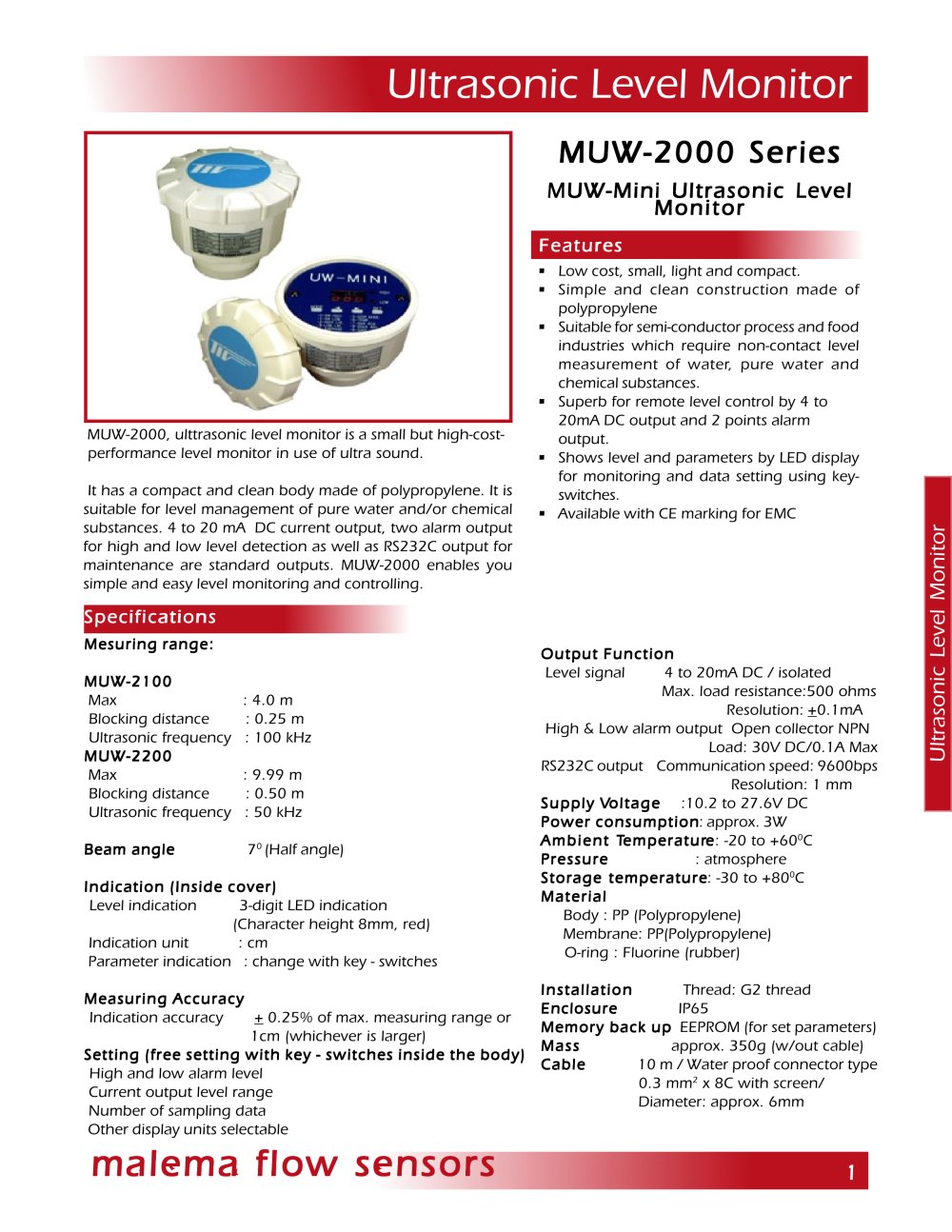

MUW-Mini Ultrasonic Level Monitor
Product catalog summary
Overview: The MUW-2000 Series Ultrasonic Level Monitor is a compact, cost-effective device designed for non-contact level measurement in industries such as semiconductor processing and food. It is constructed from polypropylene and offers features like remote level control, LED display, and CE marking for EMC compliance.
Specifications:
- Measuring Range: MUW-2100 (Max: 4.0 m, Blocking Distance: 0.25 m, Frequency: 100 kHz), MUW-2200 (Max: 9.99 m, Blocking Distance: 0.50 m, Frequency: 50 kHz).
- Beam Angle: 70° (Half angle).
- Indication: 3-digit LED display, parameter changes via key-switches.
- Accuracy: ±0.25% of max range or 1 cm.
Output and Power:
- Level Signal: 4 to 20mA DC, isolated, max load resistance 500 ohms.
- Alarm Output: Open collector NPN, load 30V DC/0.1A max.
- RS232C Output: 9600bps, resolution 1 mm.
- Supply Voltage: 10.2 to 27.6V DC, Power Consumption: approx. 3W.
Installation and Mounting:
- Mount horizontally on top of the vessel using ISO G2 female thread.
- Ensure no interference from vessel structures or other sensors.
- Recommended to attach a sunshade if exposed to direct sunlight.
- Mount at least 200mm from vessel walls to avoid noise interference.
Additional Notes:
- Ensure sound robe does not touch the mounting nozzle or vessel wall.
- Avoid mounting near the center of the vessel roof to prevent double echo.
- Strong waves, foam, or dense vapor can impede measurement.
See more
Catalog excerpts
Note for installation > Bumps such as welding bead Avoid sound robe touching Attach a sunshade in case of or blur should not be in the the nozzle direct sun light mouting nozzle Mounting LocationMounting LocationMounting LocationMounting LocationMounting Location ? Mount the instrument parallel to measured surface where no object causes interference. ? Mount the instrument at least 200mm apart from the vessel wall.(Noises may cause faulty functionality) ? ? Avoid mounting the instrument close to the center of the vessel roof. Special care must be taken for conical or dome roof tank. It may create...
