Digital Display
Product catalog summary

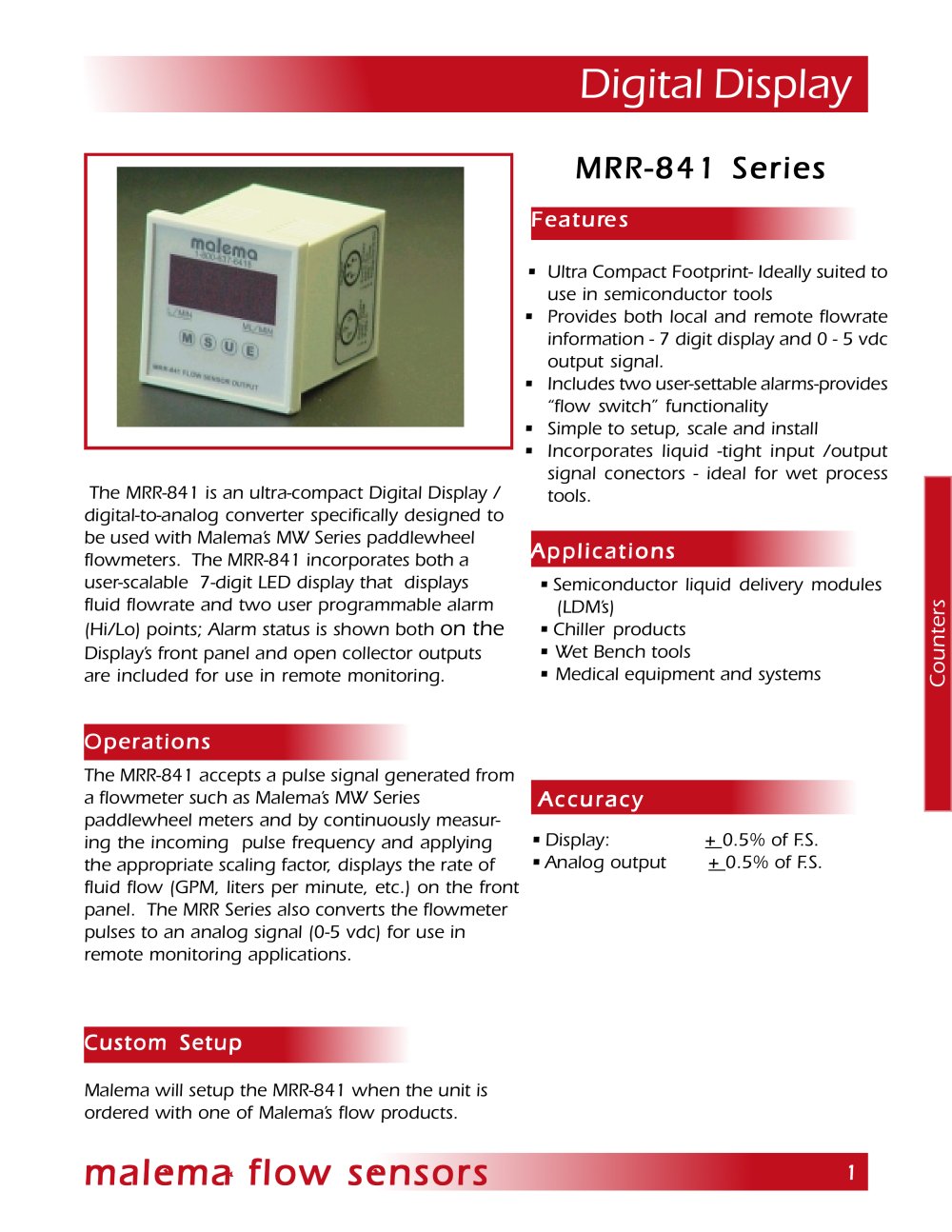

Overview: The MRR-841 Series is an ultra-compact digital display and digital-to-analog converter designed for use with Malema's MW Series paddlewheel flowmeters. It provides both local and remote flow rate information with a 7-digit display and a 0-5 VDC output signal. The device includes two user-settable alarms for flow switch functionality and is simple to set up, scale, and install.
Key Features:
- Ultra-compact footprint suitable for semiconductor tools.
- Local and remote flow rate information with a 7-digit display and 0-5 VDC output.
- Two user-settable alarms for flow switch functionality.
- Liquid-tight input/output signal connectors ideal for wet process tools.
Applications:
- Semiconductor liquid delivery modules (LDMs).
- Chiller products.
- Wet bench tools.
- Medical equipment and systems.
Specifications:
- Display accuracy: ±0.5% of full scale (F.S.).
- Analog output accuracy: ±0.5% of F.S.
- Flow rate scaling range: 200 L/min to 5000 L/min.
- Pulse input frequency range: 1 Hz to 999 Hz.
- Alarm hysteresis: ±5% of F.S.
- Power supply: 8-24 VDC, max 1W.
- Operating conditions: 5°C to 50°C, 10% to 90% RH.
Setup and Operation: The MRR-841 can be custom set up when ordered with Malema's flow products. It accepts a pulse signal from a flowmeter, measures the pulse frequency, and displays the fluid flow rate. The device also converts flowmeter pulses to an analog signal for remote monitoring. The panel includes keys for setup and operation, allowing users to switch between flow rate and pulse count display, enter scaling setups, and configure alarms.
Dimensional Drawing: The device has dimensions of 40mm x 40mm x 54mm with a panel cutout size of 36mm x 36mm and an approximate weight of 80g.
