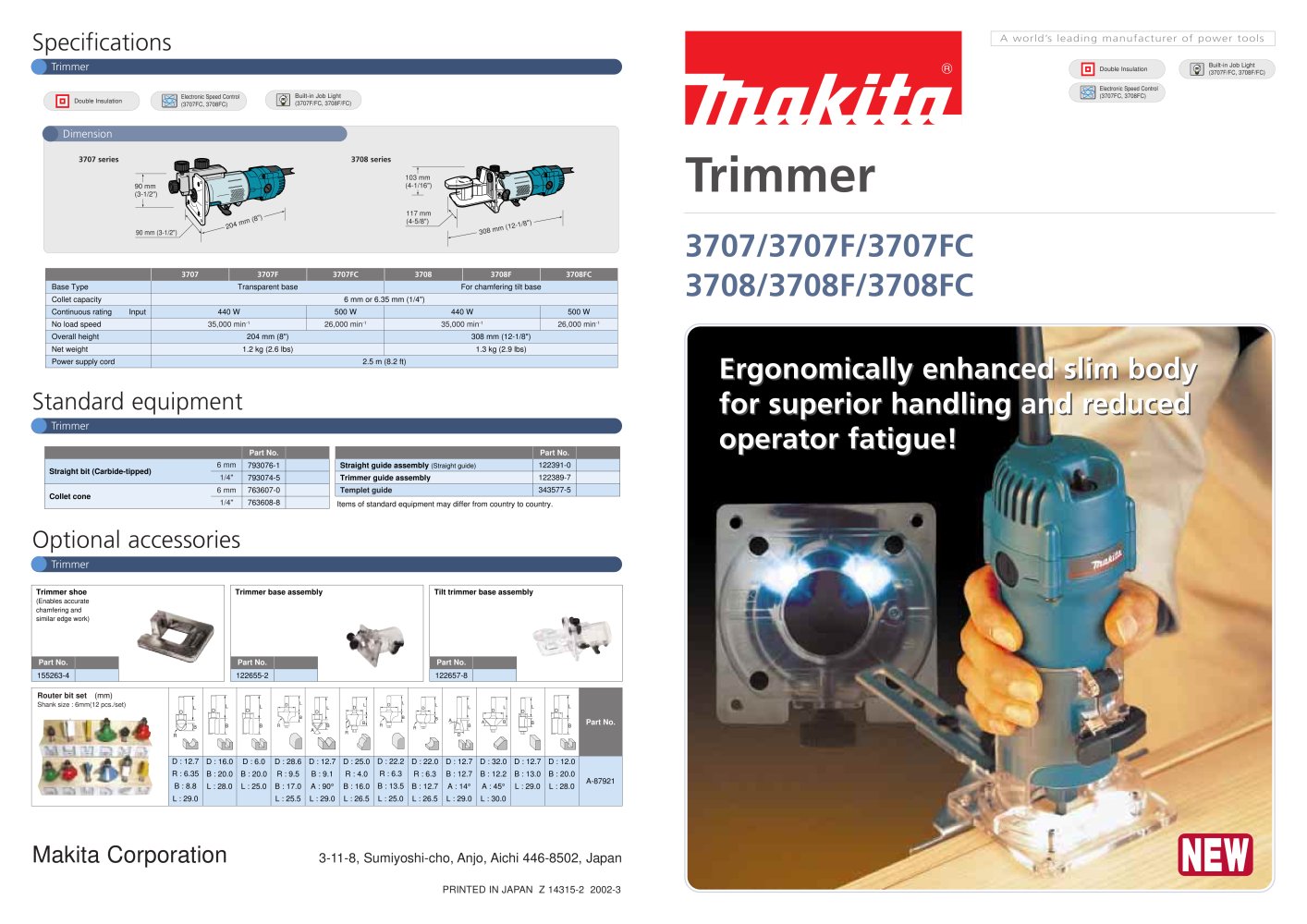

PRINTED IN JAPAN Z 14315-2 2002-3 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502, Japan Standard equipment Trimmer Optional accessories Trimmer Straight bit (Carbide-tipped) Collet cone Straight guide assembly (Straight guide) Trimmer guide assembly 6 mm Templet guide 1/4" 6 mm 1/4" Part No. Part No. 793076-1 793074-5 763607-0 763608-8 122391-0 122389-7 343577-5 Items of standard equipment may differ from country to country. Specifications Trimmer Dimension 204 mm (8") 90 mm ( 3-1/2") 90 mm (3-1/2") 308 mm (12-1/8") 117 mm (4-5/8") 103 mm (4-1/16") Trimmer 3707/3707F/3707FC 3708/3708F/3708FC Ergonomically enhanced slim body for superior handling and reduced operator fatigue! A world’s leading manufacturer of power tools Double Insulation Built-in Job Light (3707F/FC, 3708F/FC) Electronic Speed Control (3707FC, 3708FC) Double Insulation Built-in Job Light (3707F/FC, 3708F/FC) Electronic Speed Control (3707FC, 3708FC) 3707 series 3708 series Base Type Collet capacity Continuous rating Input No load speed Overall height Net weight Power supply cord 3707 3707F 3707FC 3708 3708F 3708FC Transparent base 204 mm (8") 1.2 kg (2.6 lbs) For chamfering tilt base 308 mm (12-1/8") 1.3 kg (2.9 lbs) 500 W 26,000 min-1 440 W 35,000 min-1 500 W 26,000 min-1 440 W 35,000 min-1 6 mm or 6.35 mm (1/4") 2.5 m (8.2 ft) Trimmer shoe (Enables accurate chamfering and similar edge work) 155263-4 Part No. Trimmer base assembly 122655-2 Part No. Tilt trimmer base assembly 122657-8 Part No. D : 12.7 B : 13.0 L : 29.0 D : 22.2 R : 6.3 B : 13.5 L : 25.0 D : 22.0 R : 6.3 B : 12.7 L : 26.5 D : 12.7 B : 12.7 A : 14° L : 29.0 D : 32.0 B : 12.2 A : 45° L : 30.0 D : 12.0 B : 20.0 L : 28.0 Router bit set (mm) Shank size : 6mm(12 pcs./set) A-87921 Part No. D : 12.7 B : 9.1 A : 90° L : 29.0 D : 12.7 R : 6.35 B : 8.8 L : 29.0 D : 16.0 B : 20.0 L : 28.0 D : 6.0 B : 20.0 L : 25.0 D : 28.6 R : 9.5 B : 17.0 L : 25.5 D : 25.0 R : 4.0 B : 16.0 L : 26.5 D L B D L B D L A B L B A D D R L B D R L B D R L B A D L B D R L B D L B D L B R D L B

Trimmer 3707/3707F/3707FC 3708/3708F/3708FC A world’s leading manufacturer of power tools Slim size body and Lightweight but Powerfull Trimmers! PHOTO: Model 3707F Switch (3707F/FC, 3708F/FC) ON / OFF switch for both light and Motor. ON / OFF Switch Depth Adjustment Rubber roller for easy and precise depth adjustment. Simple Locking System Slim and long size body Ergonomicully enhanced slim and long size body for superior handling. 107 mm Diameter 60 mm Round Base (3707/ F/FC) Just remove 4 screws from Base, Base can be switched to round type Base. Built-in Job Light (3707F/FC, 3708F/FC) Excellent...
