MAKITA

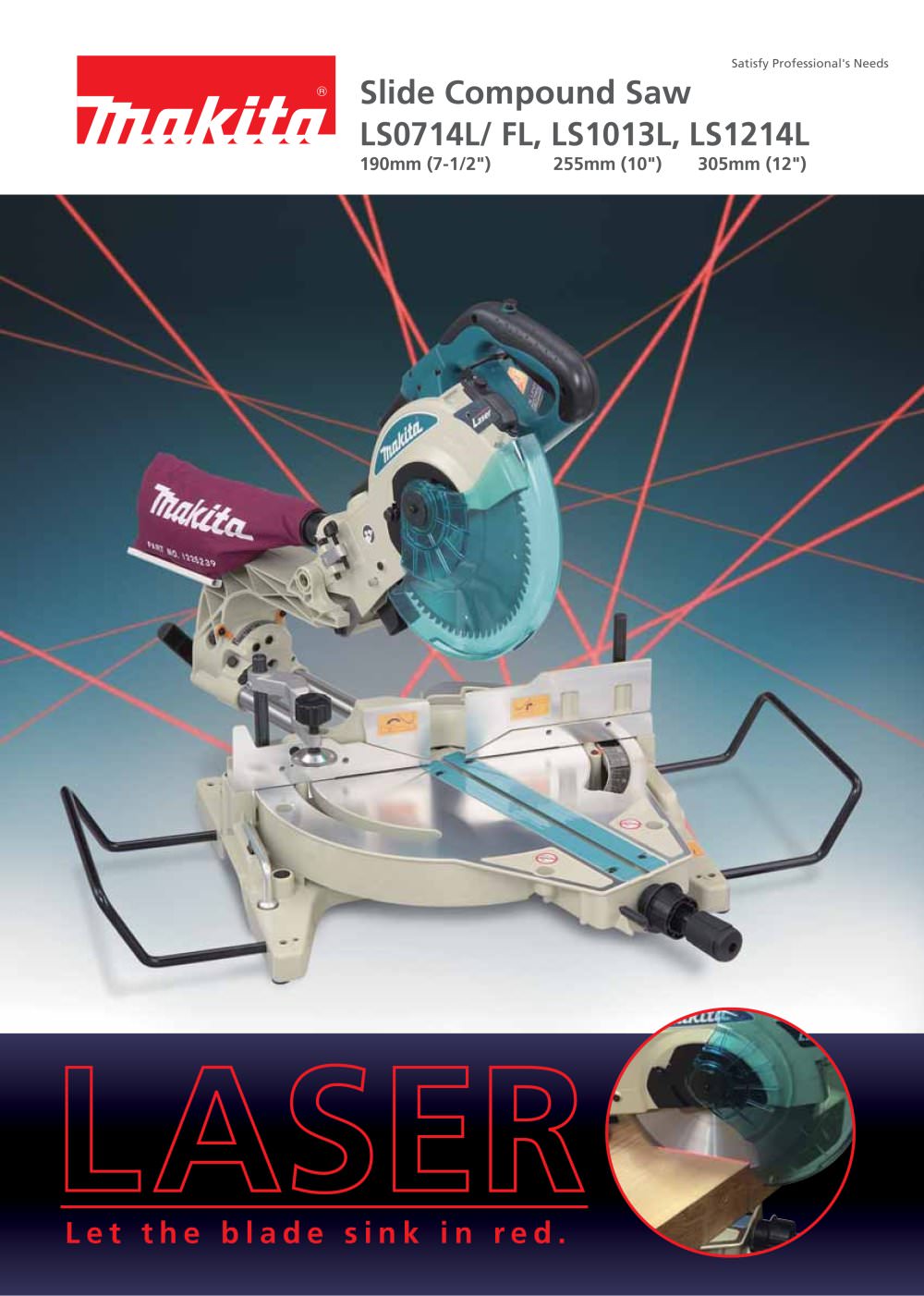

Slide Compound Saw

Slide Compound Saw

Product catalog summary

Overview: This document provides technical specifications and features of Makita's Slide Compound Saws, models LS0714L/FL, LS1013L, and LS1214L. These saws are designed to meet professional needs with a unique laser alignment system.

Specifications:

LS0714L/FL: 190mm (7-1/2") blade, 1,010W input, 6,000rpm, dimensions 670mm x 430mm x 458mm, weight 12.8kg, power cord 2.5m.
LS1013L: 255mm (10") blade, 1,430W input, 3,700rpm, dimensions 715mm x 520mm x 640mm, weight 22kg, power cord 2.5m.
LS1214L: 305mm (12") blade, 1,650W input, 3,200rpm, dimensions 723mm x 520mm x 718mm, weight 24kg, power cord 2.5m.

Features:

Laser Alignment System: Allows for precise cut line alignment with a laser marker that can be projected on either side of the blade. The laser guide is mounted on the blade case to minimize misalignment and can be controlled by an independent switch.
Cutting Capacity: Varies by model, with specific capacities at 90 and 45 degrees.
Additional Features: Double insulation, dust collecting, bevel cutting capabilities, electric brake, soft start, electronic speed control, and built-in job light (specific to certain models).

Standard Equipment: Includes T.C.T. saw blade, dust bag, holder set, vertical vise, socket wrench, and triangular rule. Note that items may vary by country.

Catalog excerpts

153 Double Insulation LS0714FLLS0714L at 90 degrees : 115mm x 218mm (4-1/2" x 8-9/16")305mm (12")3,200rpm723mm x 520mm x 718mm (28-1/2" x 20-1/2" x 28-1/4")24kg (52.9lbs)2.5m (8.2ft) > Laser Marker at 45 degrees : 115mm x 308mm (4-1/2" x 12-1/8") > Dust Collecting Bevel Cutting L45 R5 (LS0714L / FL only) Bevel Cutting 45 LR (LS1013L, LS1214 only) Electric brake at 90 degrees : 91mm x 220mm (3-5/8" x 8-5/8") 255mm - 260mm (10"-10-1/4")3,700rpm715mm x 520mm x 640mm (28-1/8" x 20-1/2" x 25-1/4")22kg (48.5lbs)2.5m (8.2ft) 1,650W > (LS1013L, LS1214 only) at 45 degrees : 91mm x 310mm (3-5/8" x 12-1/4")...
