Pneumatic Framing Nailer

Pneumatic Framing Nailer

Product catalog summary

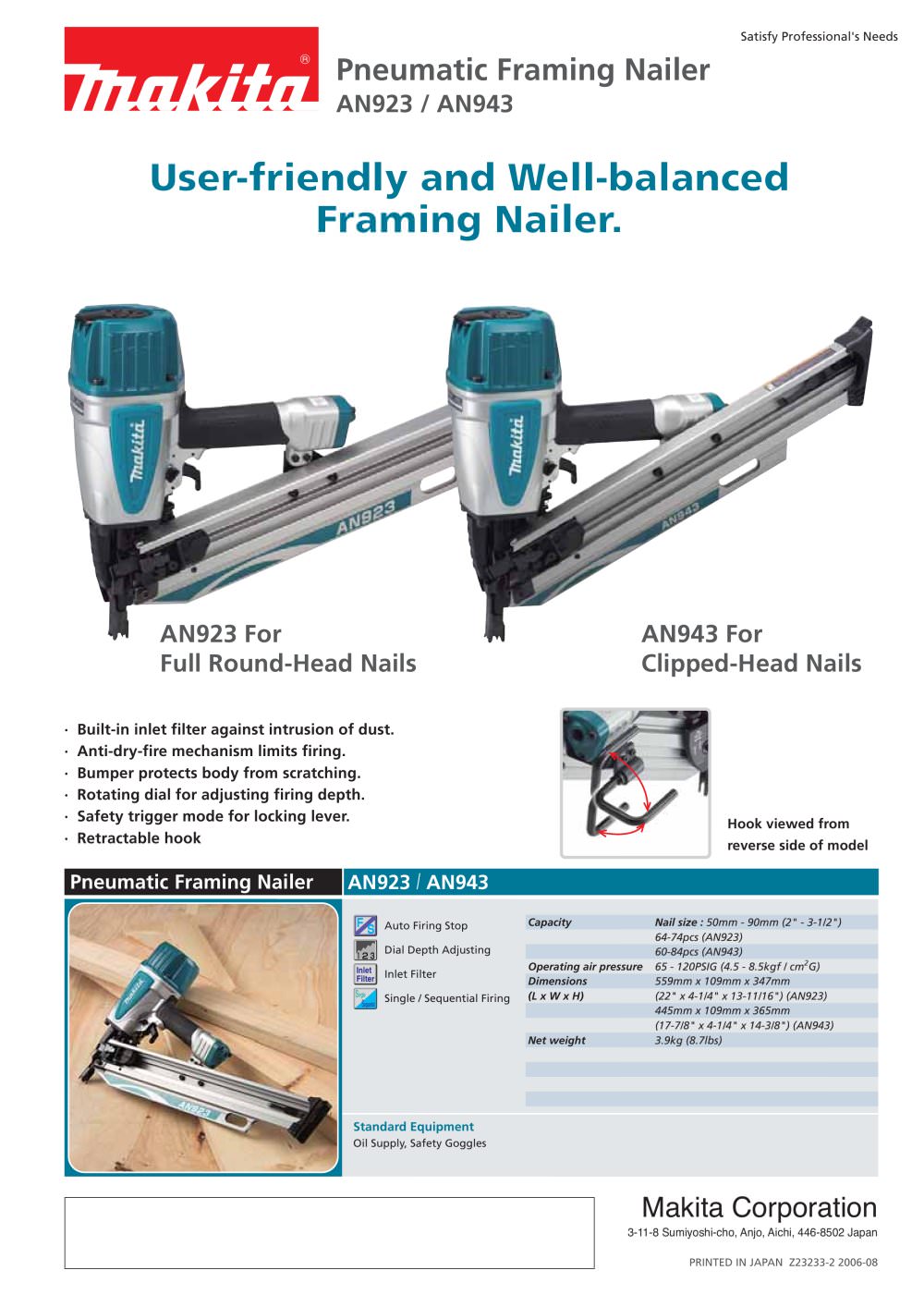

Overview: This document provides technical specifications and features for the Makita Pneumatic Framing Nailers, models AN923 and AN943, designed for professional use.

Specifications:

Nail Size: 50mm - 90mm (2" - 3-1/2").
Capacity: AN923 holds 64-74 nails, AN943 holds 60-84 nails.
Operating Air Pressure: 65 - 120 PSIG (4.5 - 8.5 kgf/cm²G).
Dimensions: AN923: 559mm x 109mm x 347mm (22" x 4-1/4" x 13-11/16"); AN943: 445mm x 109mm x 365mm (17-7/8" x 4-1/4" x 14-3/8").
Net Weight: 3.9 kg (8.7 lbs).

Features:

Auto Firing Stop: Prevents accidental firing.
Dial Depth Adjusting: Allows for precise control of nail depth.
Inlet Filter: Protects against dust intrusion.
Firing Modes: Single and sequential firing options.

Standard Equipment:

Built-in inlet filter to prevent dust intrusion.
Anti-dry-fire mechanism to limit firing when nails are low.
Bumper to protect the body from scratches.
Rotating dial for adjusting firing depth.
Safety trigger mode with a locking lever.
Retractable hook for convenience.

Model Specifics:

AN923: Suitable for full round-head nails.
AN943: Designed for clipped-head nails.

Manufacturer: Makita Corporation, 3-11-8 Sumiyoshi-cho, Anjo, Aichi, 446-8502 Japan.

Conclusion: The Makita AN923 and AN943 are user-friendly, well-balanced framing nailers that meet professional needs with their robust features and specifications.

Catalog excerpts

Auto Firing StopDial Depth AdjustingInlet FilterSingle / Sequential Firing > Oil Supply, Safety Goggles >
