MAKITA
Metal Cutter

Metal Cutter

1 / 2 PagesView full catalog

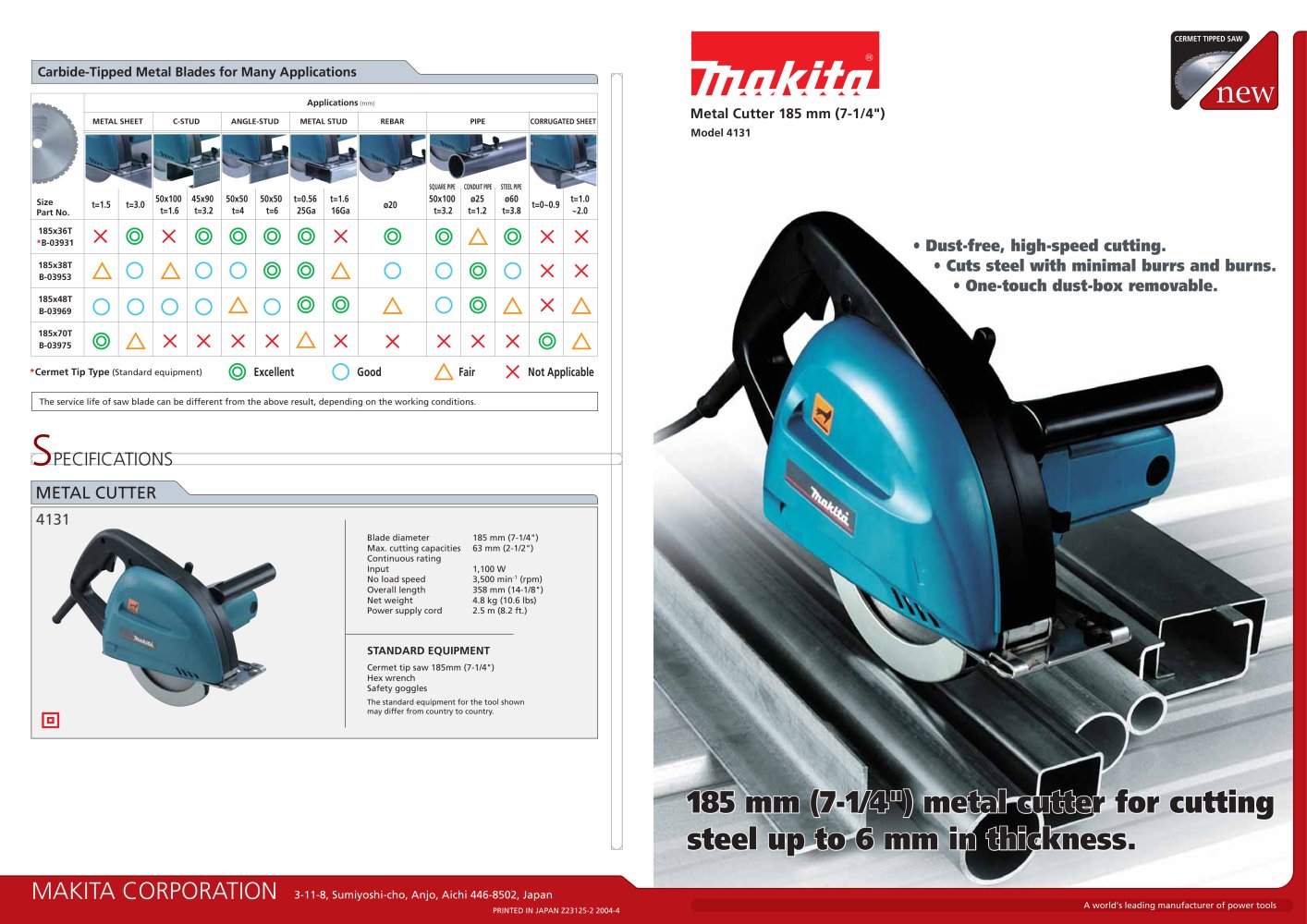

Metal Cutter

Product catalog summary

Specifications:

Blade Diameter: 185 mm (7-1/4 inches)
Max Cutting Capacity: 63 mm (2-1/2 inches)
Continuous Rating Input: 1,100 W
No Load Speed: 3,500 rpm
Overall Length: 358 mm (14-1/8 inches)
Net Weight: 4.8 kg (10.6 lbs)
Power Supply Cord: 2.5 m (8.2 ft)

Features:

Dust-free, high-speed cutting with minimal burrs and burns.
Equipped with a Cermet (Ceramic Metal) Tipped Saw Blade for longer service life.
Quick-release dust box for easy disposal and blade changes.
High temperature resistant motor suitable for heavy-duty applications.
Plunge lever for easy plunge cuts and sight line indicators for accurate cuts.
Stainless steel plate base for durability.

Standard Equipment:

Cermet tip saw 185mm (7-1/4 inches)
Hex wrench
Safety goggles

Applications:

Suitable for cutting various metal types including corrugated sheet, metal stud, rebar, pipe, and angle-stud.
Blade options available for different thicknesses and materials.

Performance Comparison:

Makita 4131 shows superior performance in terms of temperature rise and saw blade service life compared to competitors.

Catalog excerpts

A world ' s lead i ng manufacturer of power tools > Numbers i n chart below are relat i ve value when the results of the Compet i tor " P " are i ndexed at 100 . 80 o C 50mmt=6mm Rebar 60 o C NUMBERS CUT-OFF i ta 4131 > i tor " M " Mak Plastic cover for insulating the temperature of the aluminum dust box which stores hot metal saw dust. > 20mm o C The serv i ce l i fe of saw blade can be d i fferent from the above result, depend i ng on the work i ng cond i t i ons . size="-1">

Open the catalog to page 2
