Impact Wrench TW1000

Impact Wrench TW1000

Product catalog summary

Overview: The document provides detailed specifications and features of the Makita TW1000 Impact Wrench, a high-performance power tool designed for heavy-duty fastening tasks.

Specifications:

Max Fastening Torque: 1000 N.m (738 ft.lbs)
Continuous Rating Input: 1,200W
Capacity: Standard bolt: M24 - M30, High Tensile bolt: M22 - M24
Square Drive: 25.4 mm (1")
No Load Speed: 1,400 min-1
Overall Length: 382 mm (15")
Net Weight: 8.4 kg (18.5 lbs)
Power Supply Cord: 2.5 m (8.2 ft.)

Standard Equipment: Includes socket 41-80 and grip. Note that standard equipment may vary by country.

Optional Accessories: Socket extension bars with various lengths and part numbers are available.

Key Features:

High torque of 1000 N.m for powerful fastening.
Externally accessible carbon brushes for easy maintenance.
Soft grip and rocker switch for easy reversing.
Rubber bumper to protect tool housing.
Hanging hook for convenience.

Performance: The max fastening torque is defined by Makita standards, measured at 3 seconds after the start of driving. The TW1000 model demonstrates superior performance compared to competitors, as shown in the torque vs. time graph.

Catalog excerpts

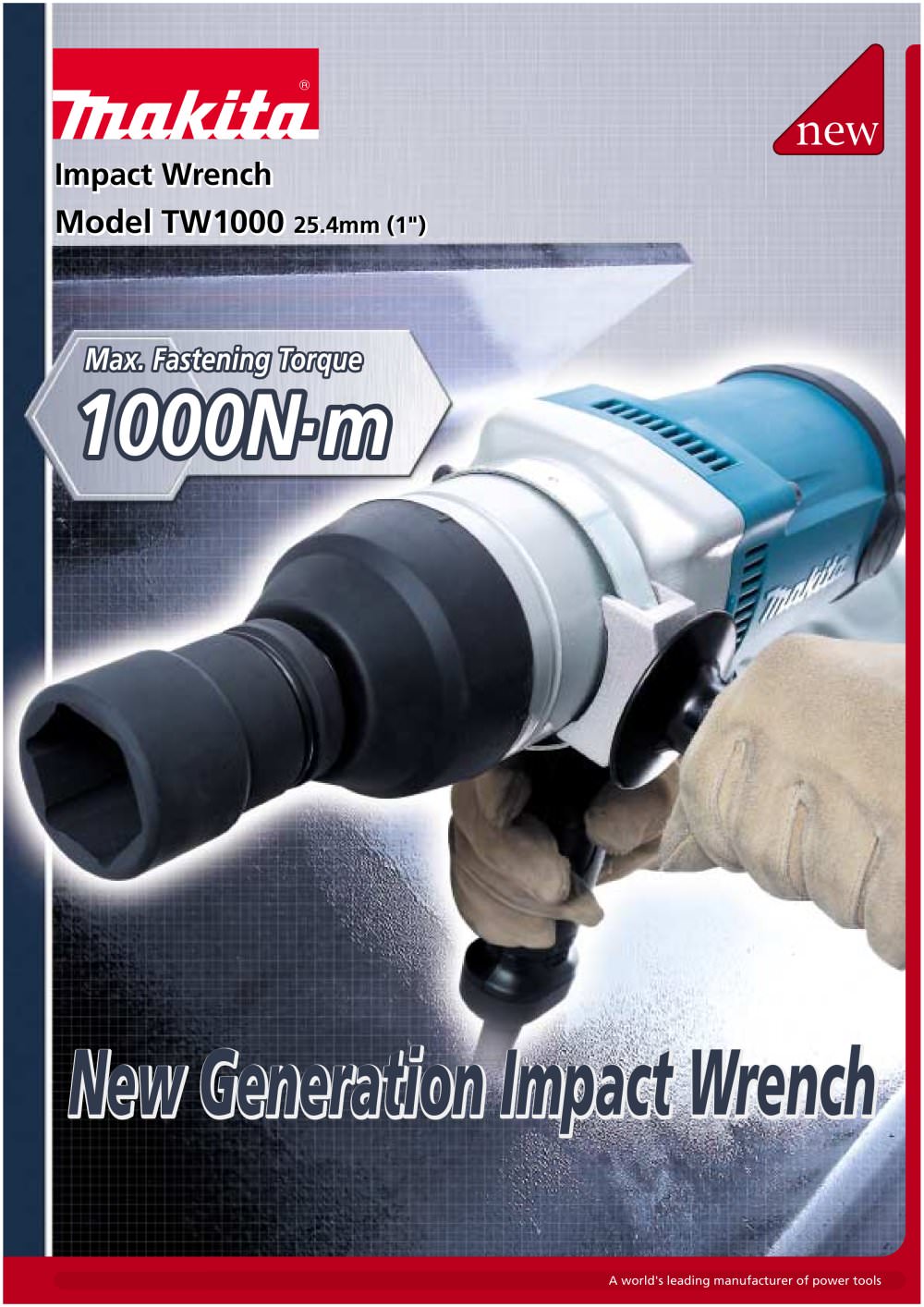

A world's leading manufacturer of power tools Impact Wrench Model TW1000 25.4mm (1") New Generation Impact Wrench Max. Fastening Torque 1000N.m

Open the catalog to page 1

A world's leading manufacturer of power tools MAKITA CORPORATION 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502, Japan PRINTED IN JAPAN Z23152-2 2004-12 SPECIFICATIONS STANDARD EQUIPMENT Socket 41-80, Grip Continuous rating Input Capacity Square drive No load speed Max. fastening torque Overall length Net weight Power supply cord 1,200W Standard bolt : M24 - M30 High Tencile bolt : M22 - M24 25.4 mm (1") 1,400 min-1 1,000 N.m (738ft.lbs) 382 mm (15") 8.4 kg (18.5 lbs) 2.5 m (8.2 ft.) OPTIONAL ACCESSORIES Items of standard equipment may differ from country to country. Specifications may differ from...

Open the catalog to page 2
