Angle Drill DA3010F / DA3010

Angle Drill DA3010F / DA3010

Product catalog summary

Overview: The document provides technical specifications and features of the 10 mm (3/8") Angle Drill models DA3010, DA3010F, DA3011, and DA3011F by Makita Corporation, a leading manufacturer of power tools. These models are designed for high efficiency and include features such as variable speed, double insulation, reversing capability, and built-in job lights for certain models.

Specifications:

Drilling Capacities: Steel up to 10 mm (3/8"), Wood up to 25 mm (1").
Continuous Rating Input: 450 W.
No Load Speed: 0 – 2,400 rpm.
Overall Length: 270 mm (10-5/8") for DA3010/F, 282 mm (11-1/8") for DA3011/F.
Net Weight: 1.4 kg (3.1 lbs).
Power Supply Cord: 2.5 m (8.2 ft.).

Features:

Variable Speed: Allows for speed adjustment via a dial stopper.
Built-in Job Light: Available in models DA3010F and DA3011F to illuminate the work area.
Double Insulation: Provides enhanced safety.
Reversing Capability: Includes a push-button type reverse switch.
Compact Design: Slim and lightweight body with a head height of 66 mm (2-5/8") for DA3010/F and 93 mm (3-5/8") for DA3011/F.

Performance Data: The document includes performance comparisons with competitor models, indicating superior efficiency in drilling speed and screw fastening capabilities. The data is presented in relative values, with Makita DA3000R's capacity set as a baseline of 100.

Standard Equipment: The standard equipment includes a chuck key S10, key holder 10, and grip 36 complete, though items may vary by country.

Catalog excerpts

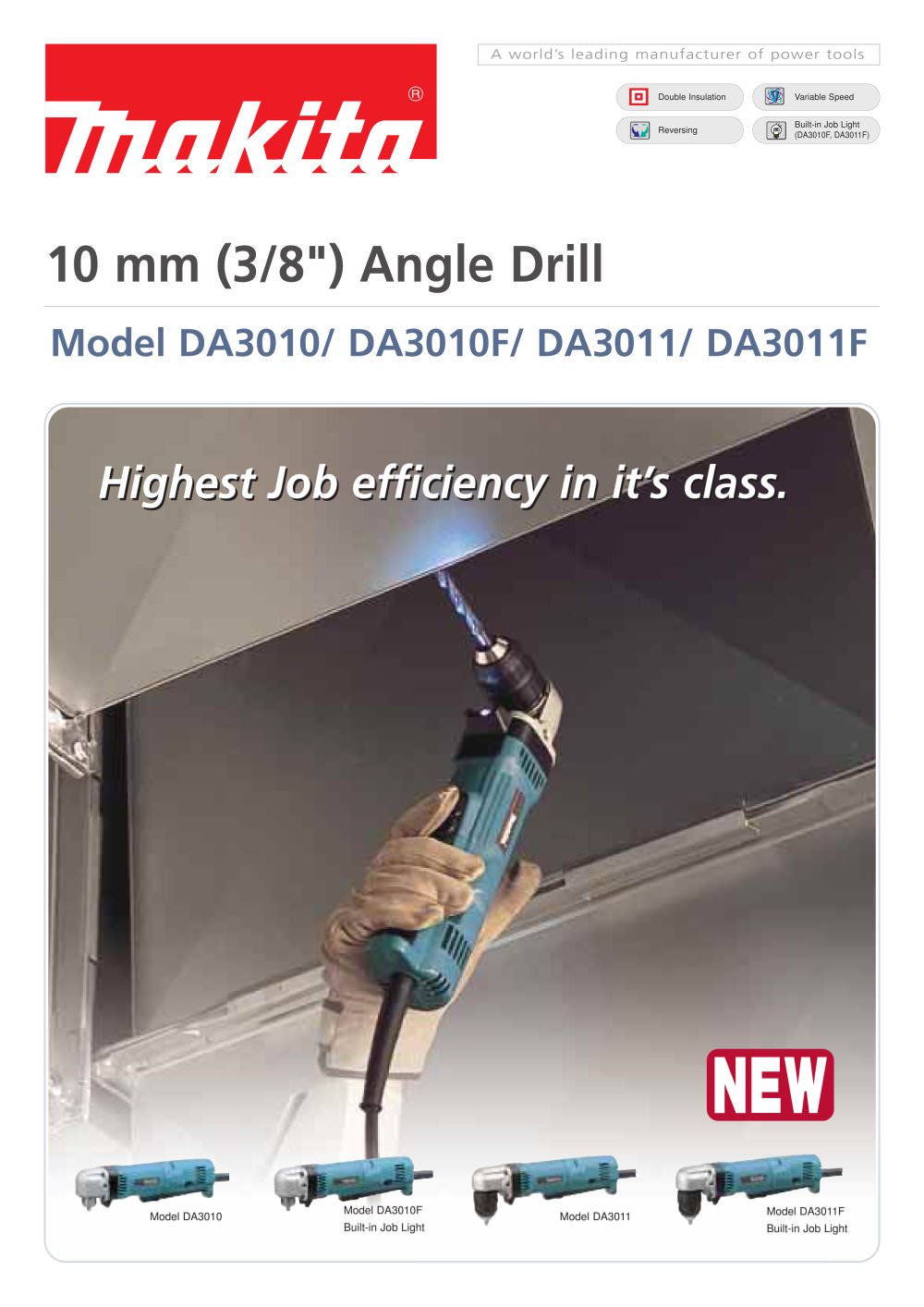

10 mm (3/8") Angle Drill Model DA3010/ DA3010F/ DA3011/ DA3011F A world’s leading manufacturer of power tools Double Insulation Variable Speed Reversing Built-in Job Light (DA3010F, DA3011F) Highest Job efficiency in it’s class. Model DA3010 Model DA3010F Built-in Job Light Model DA3011 Model DA3011F Built-in Job Light

Open the catalog to page 1

PRINTED IN JAPAN Z23056-2 2002-8 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502, Japan Standard equipment Items of standard equipment may differ from country to country. Chuck key S10 Key holder 10 Grip 36 complete DA3010/ DA3010F DA3011/ DA3011F Grip 36 complete Slim and light body, only 1.4 Kg (3.1 lbs) Dial stopper for pre-setting your desiring speed. Specifications Drilling capacities Steel 10 mm (3/8”) Wood 25 mm (1”) Continuous rating Input 450 W No load speed 0 – 2,400 min-1 (rpm) Overall length 270 mm (10-5/8”) (DA3010/F) 282 mm (11-1/8”) (DA3011/F) Net weight 1.4 kg (3.1...

Open the catalog to page 2
