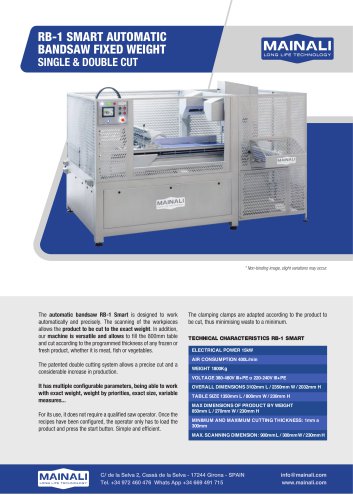

RB-1 SMART AUTOMATIC BANDSAW FIXED WEIGHT SINGLE & DOUBLE CUT * Non-binding image, slight variations may occur. The automatic bandsaw RB-1 Smart is designed to work automatically and precisely. The scanning of the workpieces allows the product to be cut to the exact weight. In addition, our machine is versatile and allows to fill the 800mm table and cut according to the programmed thickness of any frozen or fresh product, whether it is meat, fish or vegetables. The patented double cutting system allows a precise cut and a considerable increase in production. It has multiple configurable parameters, being able to work with exact weight, weight by priorities, exact size, variable measures... For its use, it does not require a qualified saw operator. Once the recipes have been configured, the operator only has to load the product and press the start button. Simple and efficient. The clamping clamps are adapted according to the product to be cut, thus minimising waste to a minimum. TECHNICAL CHARACTERISTICS RB-1 SMART ELECTRICAL POWER 15kW AIR CONSUMPTION 400L/min WEIGHT 1800Kg VOLTAGE 380-480V III+PE o 220-240V III+PE OVERALL DIMENSIONS 3102mm L / 2350mm W / 2032mm H TABLE SIZE 1350mm L / 800mm W / 230mm H MAX DIMENSIONS OF PRODUCT BY WEIGHT 850mm L / 270mm W / 230mm H MINIMUM AND MAXIMUM CUTTING THICKNESS: 1mm a 300mm MAX. SCANNING DIMENSION: 900mm L / 300mm W / 230mm H C/ de la Selva 2, Cassà de la Selva - 17244 Girona - SPAIN Tel. +34 972 460 476 Whats App +34 669 491 715 [email protected] www.mainali.com

SIERRA RB-1 SMART AUTOMÁTICA AUTOMATIC RB-1BANDSAW SMART PESO FIXED EXACTO WEIGHT CORTE SIMPLE SINGLE & DOUBLE Y DOBLE CUT TECHNICAL CHARACTERISTICS RB-1 SMART Large loading area with safety light barriers. Table for product placement made of FDA plastic. Scanning of the part by means of 3 integrated 3D laser cameras, 360° capacity. Automatic camera calibration system. Cutting by weight or part length, according to recipe. Single or double cutting system (patented). Single high-performance cutting by movement linking. The table and clamps are driven by servomotors with gearboxes. The table and...
