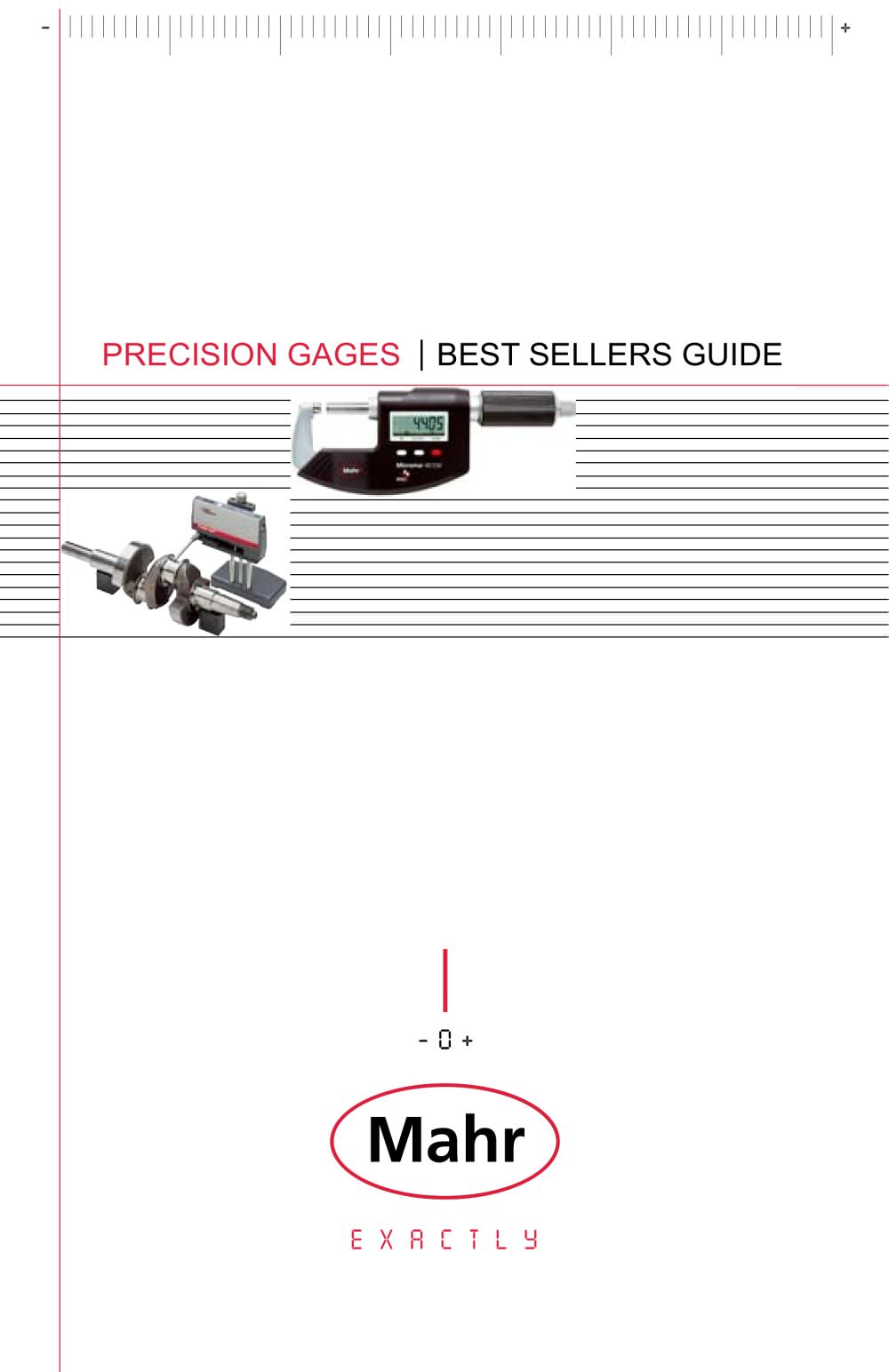

- + PRECISION GAGES BEST SELLERS GUIDE

- Lapped guide ways allow smooth and even movement Housing and operating buttons are made from Ultradur®, which has an excellent chemical resistance Large Display with 7.5 mm numerals Water resistant measuring system FPS (Fluid Protected measuring System) with sealed housing. Protection class IP67 according to EN 60529 Lapped measuring faces for accurate measurement Ergonomic thumb support mm/inch ON 0 OFF 1 mm/inch ON 0 OFF 2 1. First, set to Zero NEW: 8 and 12 inch versions are now available NEW Advantages of the Reference-Lock-Function • Zero position is secured • Operating error is...

+ NEW • Simple operation • Energy-saving function (Auto-off after 2 hrs) • Patented capacitive measuring system • High contrast LCD • Supplied with case and battery NEW: 12“ / 300 mm version now available Measuring Resolution Error limit Depth Order no. range G rod inch / mm inch / mm mm Without Data output 16 EX 6“ / 150 .0005“ / 0,01 0,03 round 4102201* 16 EX 6“ / 150 .0005“ / 0,01 0,03 flat 4102204* With Data output 16 EX 6“ / 150 .0005“ / 0,01 0,03 round 4102400 16 EX 6“ / 150 .0005“ / 0,01 0,03 flat 4102403 16 EX 8“ / 200 .0005“ / 0,01 0,03 flat 4102402 16 EX 12“ / 300 .0005“ / 0,01...

- • For connection with 16 EX, 16 EXC, 16 EXV, 18 EX, 30 EX, 30 EXN, 1075, 1080 Features Large dial face with high contrast graduations • Applicable as standard caliper (four measuring possibilities), with standard accessories to measure recesses, grooves, threads, bores. • Each of the measuring anvils for inside/outside measurements, depth measuring bridge, setting gauge, device for constant measuring force application. • Functions: ON/OFF RESET (zero setting) DATA (data transmission) PRESET (for entering any numerical value) inch/mm. • Patented capacitive measuring system with an...

- Series 49P O. D. Caliper Gages • The most widely used gages for checking medium tolerance dimensions on patterns, castings, forgings, dies, sheet metal. • Generous clearance on jaws reaches over non measured part protrusions for easy access to areas where thickness must meet critical dimensional specs. • Retraction lever is conveniently located for one hand operation. • .02mm or .1mm/.01in, .001 or 1/64in grads available. • Continuous reading dials with revolution counters normally provided. • Cylindrical radius steel contact tips normally furnished. *Ordinarily this gage is used as a...

- Measuring Readings Dial dia. Swivel Accuracy Order Range range of (inches) Grads (Inches) stylii fe no. 801 S ± 0.015 0.0005“ 1.1in .54in 0.0004“ 4305950 801 SG ± 0.015 0.0005“ 1.5in .54in 0.0004“ 4307950 801 SGM ± 0.004 0.0001“ 1.5in .54in 0.00012“ 4308970 801 SGE ± 0.004 0.00005“ 1.5in .54in 0.00012“ 4308985 801 SL ± 0.010 0.0005“ 1.1in 1.59in 0.0004“ 4306950 801 H ± 0.015 0.0005“ 1.1in .54in 0.0004“ 4303950 801 SR ± 0.030 0.0005“ 1.5in .54in 0.0004“ 4307960 801 V ± 0.015 0.0005“ 1.1in .54in 0.0004“ 4302950 The new generation of Test Indicators with coolant proof bezel and crystal •...

+ Dial Indicators You get more value with Mahr Federal dial indicators... • One piece case for strength and durability. • Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock and wear. • Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error. • Smooth adjusting bezels for easy setup. • Compliance with ANSI/AGD specifications. • Following is only a small representation of the hundred of indicators available from Mahr Federal. .025in .0001in 0-5-0 .010in ±.0001in 2015781 2 014761...

10 - Millimess. Dial Comparators Inductive Dial Comparator Millimess 2100 with backlit color changing display and flatness TOL (entering tolerance) LOCK: operating functions can be blocked via PC-Software. • Linearized inductive absolute measuring system. • Power supply via mains adapter. • Marconnect data output: optional Opto RS232C or Digimatic. • Dial Comparator can be operated by remote control via interface (Opto RS232C). • Functions: ON/OFF RESET (zero setting of digital and analog display) - 0 - (zero setting of analog display) PRESET (for entering a numerical value) mm/inch...

12 - Maxìm® III Remote Indicating Unit Order no. No Digital Output Port 2033001 Digital Output - 6pin (D, E1) 2033011 Digital Output with Hold & Reset -10pin (E2) 2033021 Stem Length Stem dia. Data Output Short Range Long Range 0.670“ / 17mm 0.375“ 2033101 2 033102* 1.50“ / 38mm 0.375“ 2033103 2 033104 0.670“ / 17mm 8.0 mm 2033105 2 033106* 1.50“ / 38mm 8.0 mm 2033107 2 033108 0.670“ / 17mm 0.375“ 2033111 2 033112* 1.50“ / 38mm 0.375“ 2033113 2 033114 0.670“ / 17mm 8.0 mm 2033115 2 033116* 1.50“ / 38mm 8.0 mm 2033117 2 033118 0.670“ / 17mm 0.375“ 2033121 2 033122* 1.50“ / 38mm 0.375“...

+ 13 Specifications For measuring shafts, bolts, spindles, and other cylindrical parts for thickness and length. 40 F Inch Micrometer Indicating Snap Gage 840 F Precision Bench Micrometer 40 TSZ Indicator Gages Measuring Thimble Order Range Readings Accuracy no. 0-1in .0001in .00008in 4150900 1-2in .0001in .00008in 4150901 0-25mm 0.01mm 2ìm 4150000 25-50mm 0.01mm 2ìm 4150001 Measuring Measuring Measuring Face Range Force (N) Flatness Parallelism Order ìm ìm no. 0-1“/0-25mm 7.5 0.2 1 4450000 1-2.36“/25-60mm 7.5 0.2 2 4450001 2-4“/50-100mm 7.5 0.2 2 4450002 4-6“/100-150mm 7.5 0.2 2 4450003...

14 - Order Range With Maxìm* With With Capacity ìMaxìm* .0001" Dial Indicator 0-1in/0-25mm EMD-300P-1 EDI-300P-1 3 00P-1 1-2in/25-50mm EMD-300P-2 EDI-300P-2 3 00P-2 BA-26 Base sold separately 36B-10 Indicator Gages • Patented “Channel Lock” design assures precisely parallel anvil surfaces throughout the full 1in/25mm range of adjustment. • Fully adjustable with position locking at any point within the range. • 0.020in/0.50mm in range of Sensitive Contact. • Snap Gages available over a wide range of sizes, styles and readout configurations. • Large .61in/15.5mm square tungsten carbide anvils...
