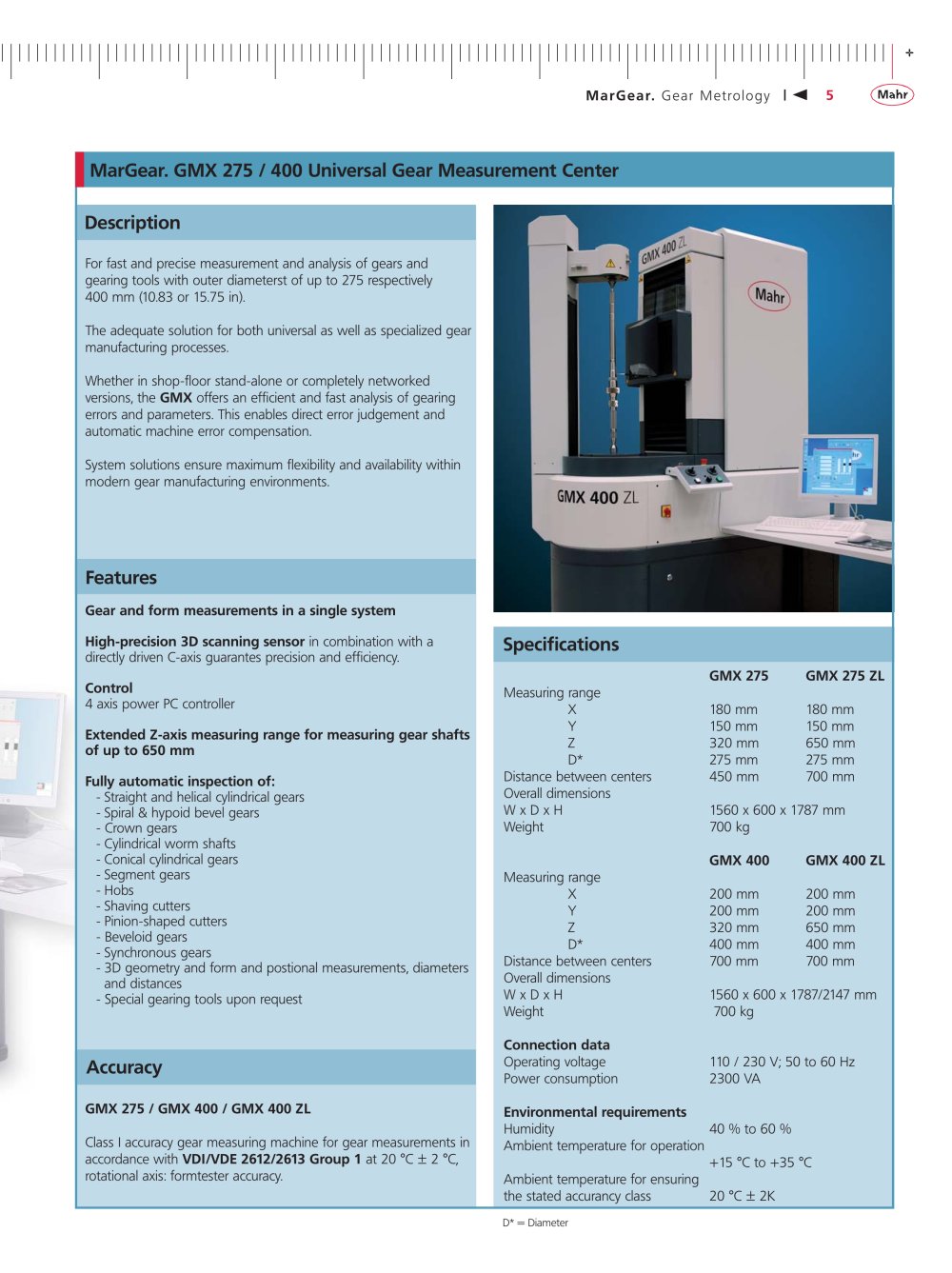

MarGear. Gear Metrology 5 > For fast and precise measurement and analysis of gears and gearing tools with outer diameterst of up to 275 respectively 400 mm (10.83 or 15.75 in).The adequate solution for both universal as well as specialized gear manufacturing processes.Whether in shop-floor stand-alone or completely networked versions, the GMX offers an efficient and fast analysis of gearing errors and parameters. This enables direct error judgement and automatic machine error compensation.System solutions ensure maximum flexibility and availability within modern gear manufacturing environments. GMX 275 / GMX 400 / GMX 400 ZL Class I accuracy gear measuring machine for gear measurements in accordance with VDI/VDE 2612/2613 Group 1 at 20 C б 2 C, rotational axis: formtester accuracy. 20 аC 2K > Connection data GMX 400 GMX 400 ZL Operating voltage 110 / 230 V; 50 to 60 Hz Power consumption 2300 VA Gear and form measurements in a single systemHigh-precision 3D scanning sensor Measuring range X 200 mm 200 mm Y 200 mm 200 mm Z 320 mm 650 mm D* 400 mm 400 mm Distance between centers 700 mm 700 mmOverall dimensions W x D x H 1560 x 600 x 1787/2147 mm Weight 700 kg Environmental requirements Humidity 40 % to 60 % Ambient temperature for operation +15 ѰC to +35 C Ambient temperature for ensuring the stated accurancy class in combination with a directly driven C-axis guarantes precision and efficiency. > GMX 275 GMX 275 ZL Control Measuring range X 180 mm 180 mm Y 150 mm 150 mm Z 320 mm 650 mm D* 275 mm 275 mm Distance between centers 450 mm 700 mm Overall dimensions W x D x H 1560 x 600 x 1787 mm Weight 700 kg 4 axis power PC controller Extended Z-axis measuring range for measuring gear shafts of up to 650 mm Fully automatic inspection of: - Straight and helical cylindrical gears - Spiral & hypoid bevel gears - Crown gears - Cylindrical worm shafts - Conical cylindrical gears - Segment gears - Hobs - Shaving cutters - Pinion-shaped cutters - Beveloid gears - Synchronous gears - 3D geometry and form and postional measurements, diameters and distances - Special gearing tools upon request >
