MarCal Waterproof Digital Caliper 16 EW according to IP67

Product catalog summary

Specifications:
The MarCal Calipers feature a large display with 7.5 mm high numerals and are water-resistant with a Fluid Protected measuring System (FPS) and sealed housing, achieving protection class IP67 according to IEC 60529. The calipers have lapped measuring faces for accuracy and ergonomic thumb support. The housing and buttons are made from Ultradur®, known for its excellent chemical resistance.

Procedures:
To operate, first set the caliper to zero and activate the lock function. The sensitive friction wheel is optional.

Protection Standards:
The calipers are dust-tight and protected against temporary immersion in water, classified as IP67. The Reference Lock Function ensures the zero position is secured, preventing operating errors and keeping the caliper ready for measurement.

Features:
The Digital Caliper 16 EW includes an inductive waterproof measuring system with Reference Lock Function, integrated dirt wipers, a battery life of approximately 2 years, and a maximum measuring speed of 1.5 m/sec. It has a high contrast LCD with 7.5 mm digits, lapped guide way, and is made of hardened stainless steel. It includes measuring blades for inside measurement, a step measuring function, and a locking screw. The caliper is supplied with a case, battery, and operating instructions.

Technical Data:
Measuring range options include 150 mm (6”), 200 mm (8”), and 300 mm (12”) with a resolution of 0.01 mm/.0005” and error limits of 0.03 mm/.0015” for 150 mm and 200 mm, and 0.04 mm/.0016” for 300 mm. Accessories include a depth measuring bridge and a 3V battery, type CR 2032.

Dimensions:
Dimensions vary by size: 150 mm/6” (10 mm x 40 mm x 16 mm x 233 mm x 16 x 3 mm), 200 mm/8” (10 mm x 40 mm x 16 mm x 285 mm x 16 x 3 mm), and 300 mm/12” (14 mm x 64 mm x 18 mm x 388 mm x 16 x 4 mm).

Catalog excerpts

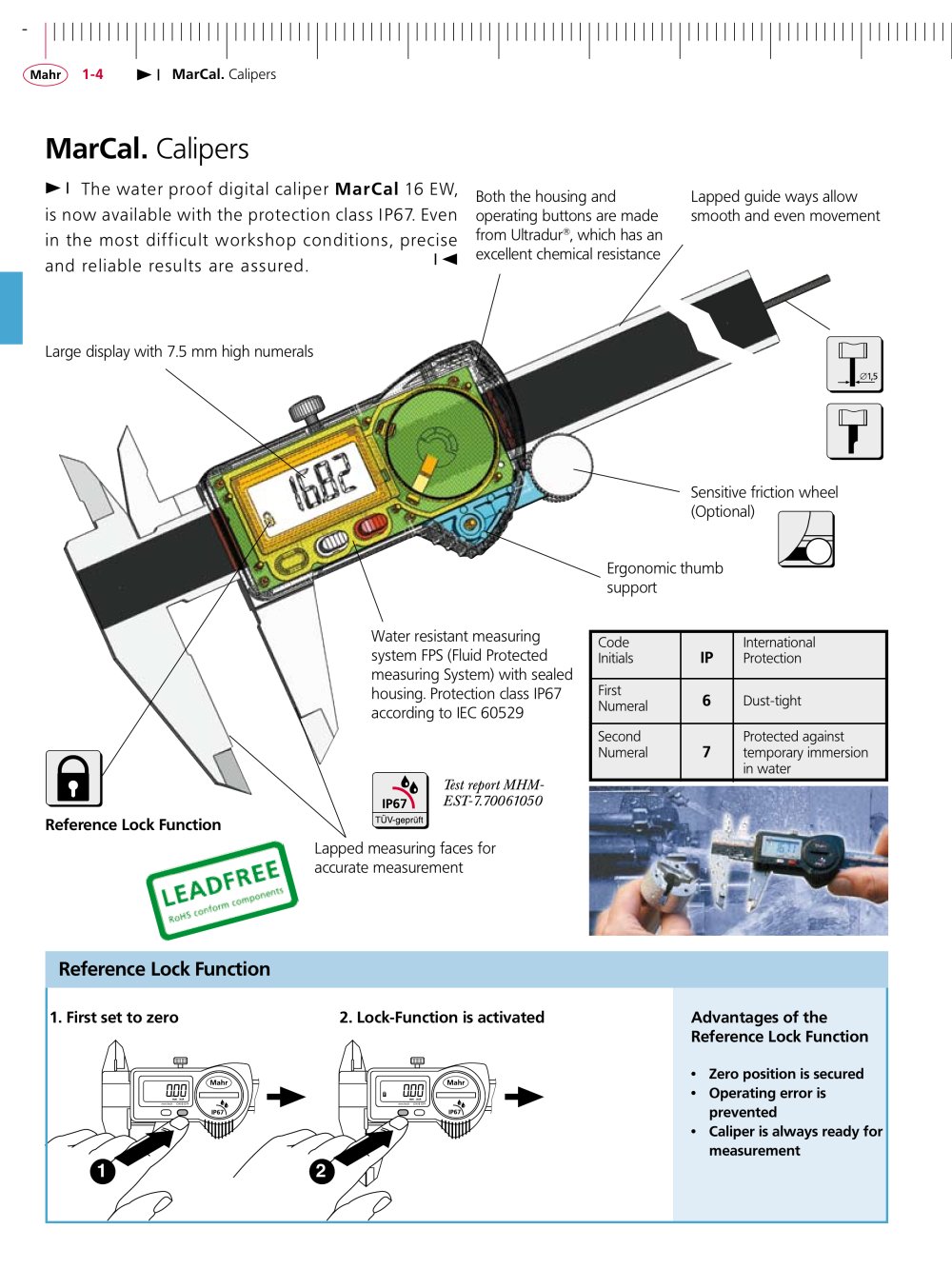

MarCal Waterproof Digital Caliper 16 EW according to IP67-1

Code International Initials ProtectionFirstNumeralSecond Protected against Numeral temporary immersion in water > Dust-tight Test report MHM-EST-7.70061050 > Ε Zero position is secured > mm/inchON OFF mm/inchON OFF Operating error is prevented Օ Caliper is always ready for measurement >

Open the catalog to page 1

MarCal Waterproof Digital Caliper 16 EW according to IP67-2

according to protection class IP67 > Functions: Inductive waterproof measuring system FPS (Fluid Protected measuring System) with Reference Lock FunctionՕ Dirt wipers are integrated in the slide Life of the battery ca. 2 yearsՕ Max measuring speed 1.5 m/sec (60/sec) ӕ High contrast Liquid Crystal Display with 7.5 mm high digits Lapped guide way Օ Slide and beam made of hardened stainless steel Measuring blades for inside measurementՕ Step measuring function Locking screwՕ Supplied with: Case, battery. operating instructions ON/OFF 0 (Zero setting) mm/inch Reference Lock Unlock > Order no. 16...
