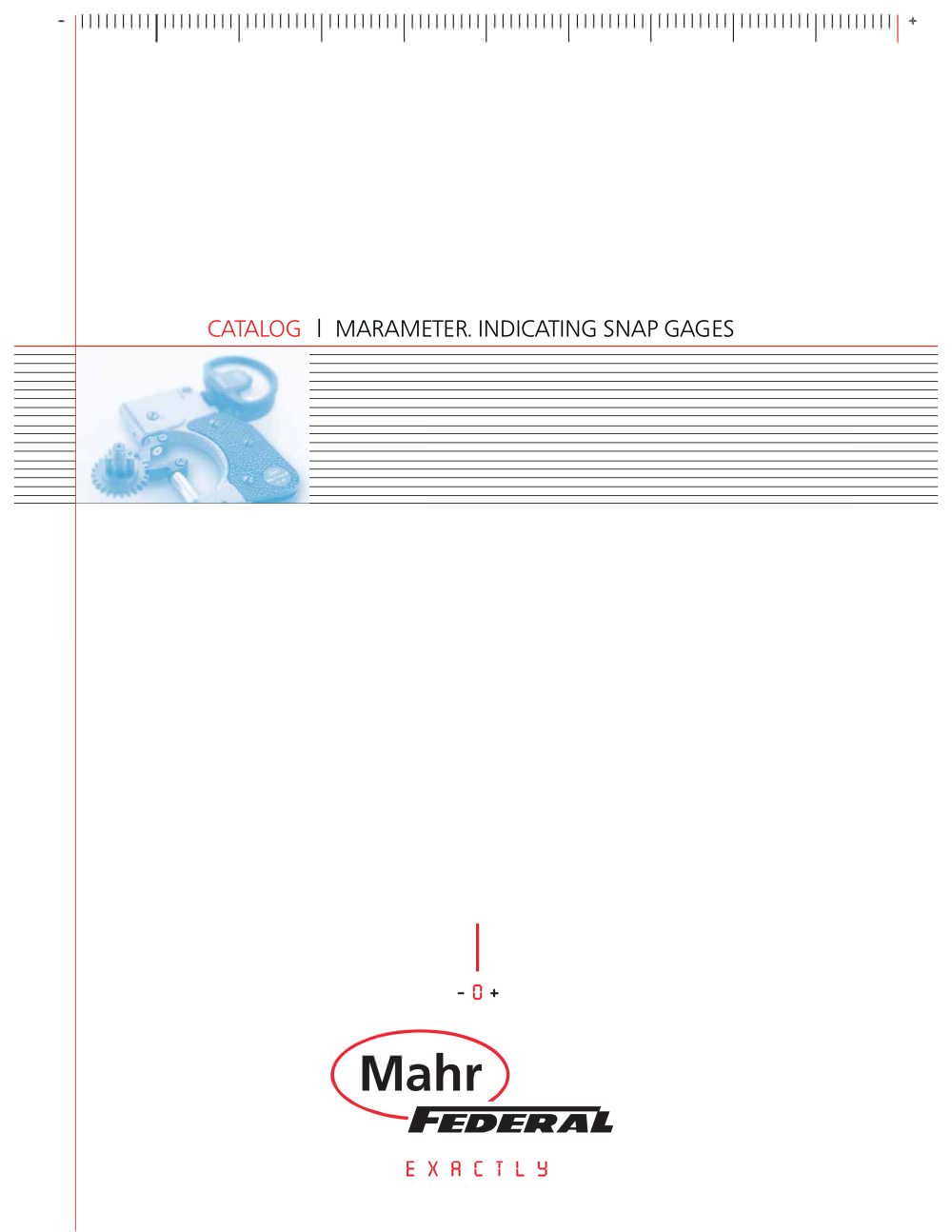

- + CATALOG MARAMETER. INDICATING SNAP GAGES

2 - MaraMeter 300P1. The Indicating Snap Gage is ideal for highly accurate and reliable results on cylindrical work pieces with a narrow tolerance. MaraMeter. Indicating Measuring Instruments for Outside Dimensions Patented “Channel Lock” design assures precisely parallel anvil surfaces throughout the full 25 mm/ 1“ range of adjustment. • All Series 300P Snap Gages are fully adjustable with positive position locking at any point within the range. • Snap Gages available over a wide range of sizes, styles, and readout configurations. • Optional lift-lever model (301P) available for retracting the...

3 + MaraMeter. Indicating Measuring Instruments for Outside Dimensions Ordering Information 300P Snap Gages for Outside Diameters Plain Anvils (Anvils included in price – choose from list below) No No Indicator With Dial Indicator Indicator With With with 8 mm With No 8 mm Maxìm®III Maxìm With Adaptor & No Lift Lift Indicator Adaptor Indicator Indicator AirProbe® Lift Lever Lever Lever Capacity OMI-300P-1 2003100 EMD-300P-1 EDI-300P-1 A300P-1 2003110 300P-1 301P-1 0-25 mm/ 0-1” OMI-300P-2 2003101 EMD-300P-2 EDI-300P-2 A300P-2 2003111 300P-2 301P-2 25-50 mm/ 1-2” OMI-300P-3 2003102 EMD-300P-3...

4 - Measuring Measuring** Distance of Measuring face Order no.* Order no. range force moveable anvil Flatness Parallelism Wooden case mm (inch) N mm (inch) ìm ìm 840 F 0 - 25 (0 - 1“) 7.5 2 (0.079“).. .. 0.2 .. 1 4450000 4450010 25 - 60 (1 - 2.36“) 7.5 2 (0.079“).. .. 0.2 .. 2 4450001 4450011 50 - 100 (2 - 4“) 7.5 2.5 (0.098“).. .. 0.2 .. 2 4450002 4450012 100 - 150 (4 - 6“) 7.5 2.5 (0.098“).. .. 0.2 .. 2 4450003 4450013 150 - 200 (6 - 8“) 7.5 2.5 (0.098“).. .. 0.2 .. 2 4450004 4450014 840 FC 0 - 25 (0 - 1“) 7.5 2 (0.079“).. .. 0.2 .. 1 4450100 4450010 25 - 60 (1 - 2.36“) 7.5 2 (0.079“).. .....

5 + MaraMeter. Indicating Measuring Instruments for Outside Dimensions Work piece tolerance ìm Uncertainty U in % 0 10 20 30 40 50 60 15 20 25 30 35 40 45 50 Micrometer Indicating Snap Gage • Reduced Measuring Uncertainity Snap Gages have a notably reduced measuring uncertainty in comparison to to a Micrometer. • Better utilization of the tolerance zone Example: Work piece tolerance 25 ìm/.001“ The measured value in the uncertainty range can lie outside of the tolerance range, therefore the utilized tolerance of the micrometer is reduced to only 32% (8 ìm)/.0003“. With a Snap Gage 83% (20,8 ìm/.0008“)...

6 - • Statistical Process Control • Setting up and/or adjusting a processing machine • Well timed tool change, for example the replacement of a grinding wheel. • No numerical value or measurement is obtained, therefore the manufacturing process cannot be steered appropriately. • Changes to manufacturing processes cannot be identified in time. • With the constant measuring force eliminates the influence of the worker upon the measuring results. • The influence of the worker on a test / inspection results can be substantially affected through incorrect handling (bending upwards). No Go Go The Measuring...

7 + • Minimum wear due to non-contact positioning of the work piece with the retracting sensitive anvil • Reduced wear due to the carbide tipped measuring faces • High abrasion of the measuring faces due to the actual physical strain upon the measuring faces • Can be quickly adjusted within the dimension and fit of the measuring range • Additional costs are reduced (administration of measuring equipment, calibration) • Requires more storage, money is tied up in having a broader selection of snap gages • Additional costs are thus higher (administration of measuring equipment, calibration, storage)....

8 - Mahr Federal, Inc. • 1144 Eddy Street, Providence, RI 02905 • Tel. 1-800-343-2050, Fax 1-401-7843246 • E-mail: [email protected] A-225 1205 5M Your Mahr Partner: We reserve the right to make changes to our products, especially due to technical improvements and further developments. All illustrations and technical data are therefore without guarantee. © by Mahr Federal, Inc. Our Catalog - Dimensional Metrology is available upon request! • Our yardstick is your success. As one of the world’s largest and most innovative manufacturers of measuring equipment, we make it our task to ensure that...
