digital test indicator

digital test indicator

Product catalog summary

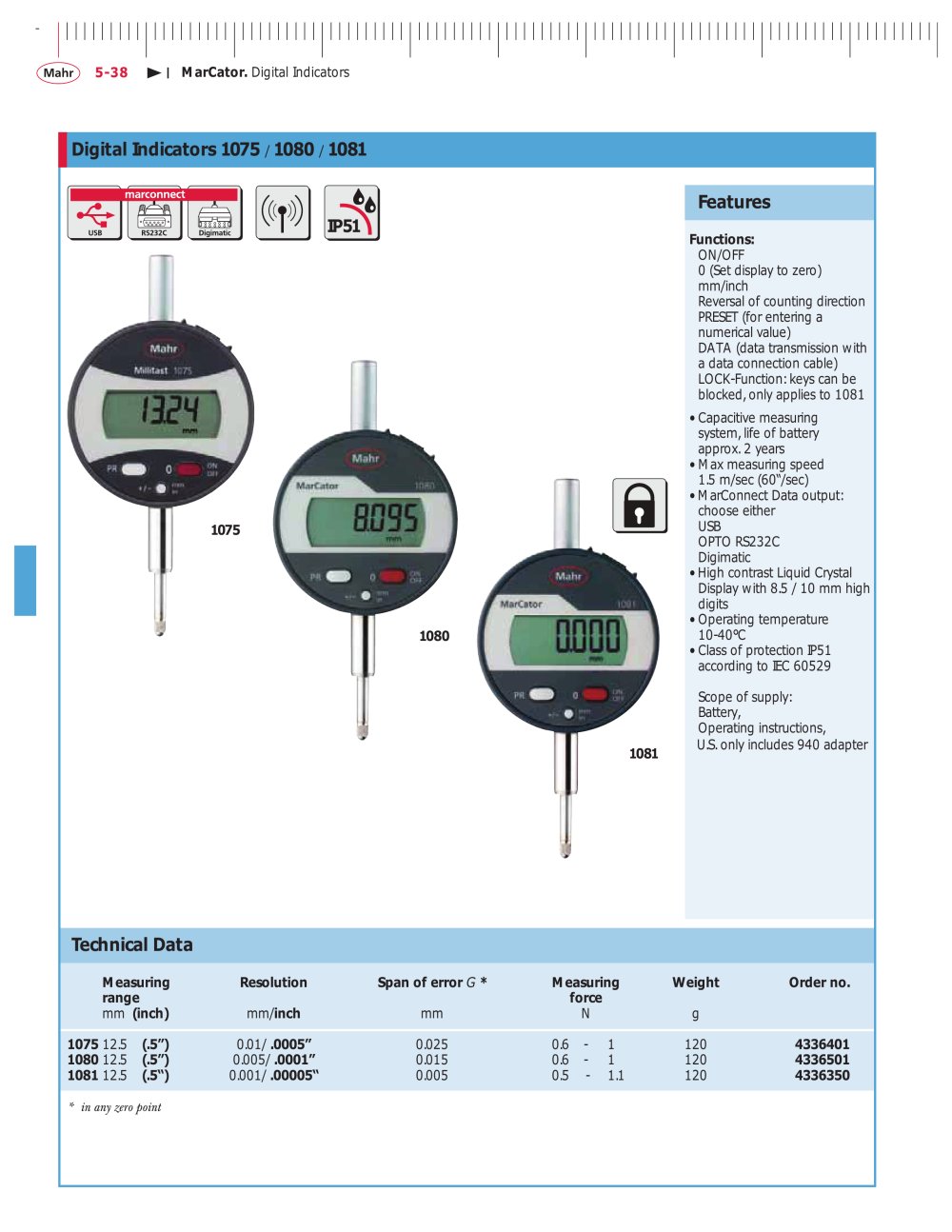

Overview: This document provides technical specifications and accessory details for MarCator Digital Indicators models 1075, 1080, and 1081. These indicators are used for precise measurement tasks and come with various features and accessories to enhance their functionality.

Specifications:

Model 1075: Measuring range of 12.5 mm (0.5”), resolution of 0.01 mm (0.0005”), and a span of error of 0.025 mm.
Model 1080: Measuring range of 12.5 mm (0.5”), resolution of 0.005 mm (0.0001”), and a span of error of 0.015 mm.
Model 1081: Measuring range of 12.5 mm (0.5”), resolution of 0.001 mm (0.00005”), and a span of error of 0.005 mm.

Functions:

ON/OFF switch
Zero setting
mm/inch conversion
Reversal of counting direction
PRESET for entering numerical values
Data transmission capability
LOCK function for model 1081

Technical Data:

Capacitive measuring system with a battery life of approximately 2 years
Maximum measuring speed of 1.5 m/sec (60”/sec)
Data output options: USB, OPTO RS232C, Digimatic
High contrast LCD with 8.5/10 mm high digits
Operating temperature range: 10-40°C
Protection class IP51 according to IEC 60529

Accessories:

Battery 3V, Type CR 2032
Data connection cables for USB, Opto RS232C, and Digimatic
Adapter bush for mounting shank conversion
Lug back for model 1075
Various contact points and measuring spindle extensions

Additional Features:

Contact points available in different materials such as steel, carbide, and ruby
Special holders and sensor levers for specific measurement tasks
Measuring spindle extensions available in various lengths

Catalog excerpts

+ MarCator. Digital Indicators 5-39 / > 1 Protection cap for lifter2 Measuring spindle lifter 3 Display 4 Operating buttons 5 Mounting shank 6 Measuring spindle 7 Contact point 901 8 Data output 9 Battery compartment > 34-9 28-9 59i7 2533-6 Additional Accessories Page > 7 N!3-6 Shown with Mounting Lug Order no. Battery 3V, Type CR 2032 4102520 Data Connection Cable USB (2 m) 16 EXu 4102357Data Connection Cable Contact Points 901-913 5-52 Special Holder 941 5-53 Opto RS232C(2 m), with SUB-D jack 9-pin Sensor Lever 943 5-53 16 EXr 4102410 Data Connection Cable Accessories for Data Processing see...

Open the catalog to page 2

for Dial Indicators, Dial Comparators and Probes > Ball dia. 3 mm with steel ball 4360001901 H > M 2,5 with carbide ball 4360002901 R > M 2,5 M 2,5 Catalog no. Order no. 901 with ruby ball 4360003 > l 65 l R 1,5 4 4,2 R 6 踸4,2 4,2 902 902 H 903 903 H Steel Carbide Steel Carbide contact face tippedLength > M 2,5 Concentricity error 3 m Cylindrical Roller 909 A 4360220 Radiused Roller, R = 5 mm 909 B 4360221 MarCator. Order no. > 18 10 4 size="-2">

Open the catalog to page 3

+ MarCator. Dial Indicators 5-53 > for Dial Indicators, Dial Comparators and Probes > Order no. > 5 with parallel adjustable carbide blades 910 H 4360230 > 33 dia. 1 mm, flat Length > 7 4 l Order no. Length l Order no. mm mm 15 4360280 35 4360284 20 4360281 40 4360285 25 4360282 50 4360286 > 6 Order no. > l 21 3 Carbide tipped, dia 1 mm, flat 911 H1 4360240 > 鹹 2 M 2,5 27 Carbide tipped, dia 1.5 mm, flat 911 H2 4360241 > 22 2-6 Length l Order no. Length l Order no. mm mm 10 4360250 35 4360254 > 鸸12 For all types of measuring equipmentFor placing a dial indicator at a certain distance or angle...

Open the catalog to page 4

digital test indicator

digital test indicator
