Digital Micrometer 40 EW

Product catalog summary

Overview: The document provides technical specifications and features of the Micromar 40 EW digital micrometer, highlighting its precision, durability, and ease of use in various conditions.

Specifications: The Micromar 40 EW is a digital micrometer with a waterproof measuring system compliant with IP65 standards, ensuring protection against dust and powerful water jets. It features a stainless steel, hardened spindle and a sturdy satin chrome steel frame.

Functions: The micrometer includes several functions such as RESET for zero setting, ABS for switching between relative and absolute measurement, mm/inch conversion, and PRESET for reference setting.

Data Interface: The device supports multiple data interfaces including USB, Digimatic, and Mahr Opto RS232C, allowing for direct connection to PCs and other evaluation instruments without the need for an interface box.

Features: Key features include a large display with 8.5 mm high digits, an integrated ratchet in the thimble for one-handed operation, and operating buttons made from Ultradur® for excellent chemical resistance. The micrometer also has a patented capacitive measuring system with a battery life of approximately two years.

Technical Data: The micrometer is available in various measuring ranges from 0-25 mm to 75-100 mm, with a resolution of 0.001 mm/.00005”. It includes a rapid drive and is supplied with a case, battery, operating instructions, and setting standards for certain ranges.

Accessories: Accessories include data connection cables for USB, Opto RS232C, and Digimatic interfaces, as well as a digital micrometer set with additional data processing options available in the main catalog.

Catalog excerpts

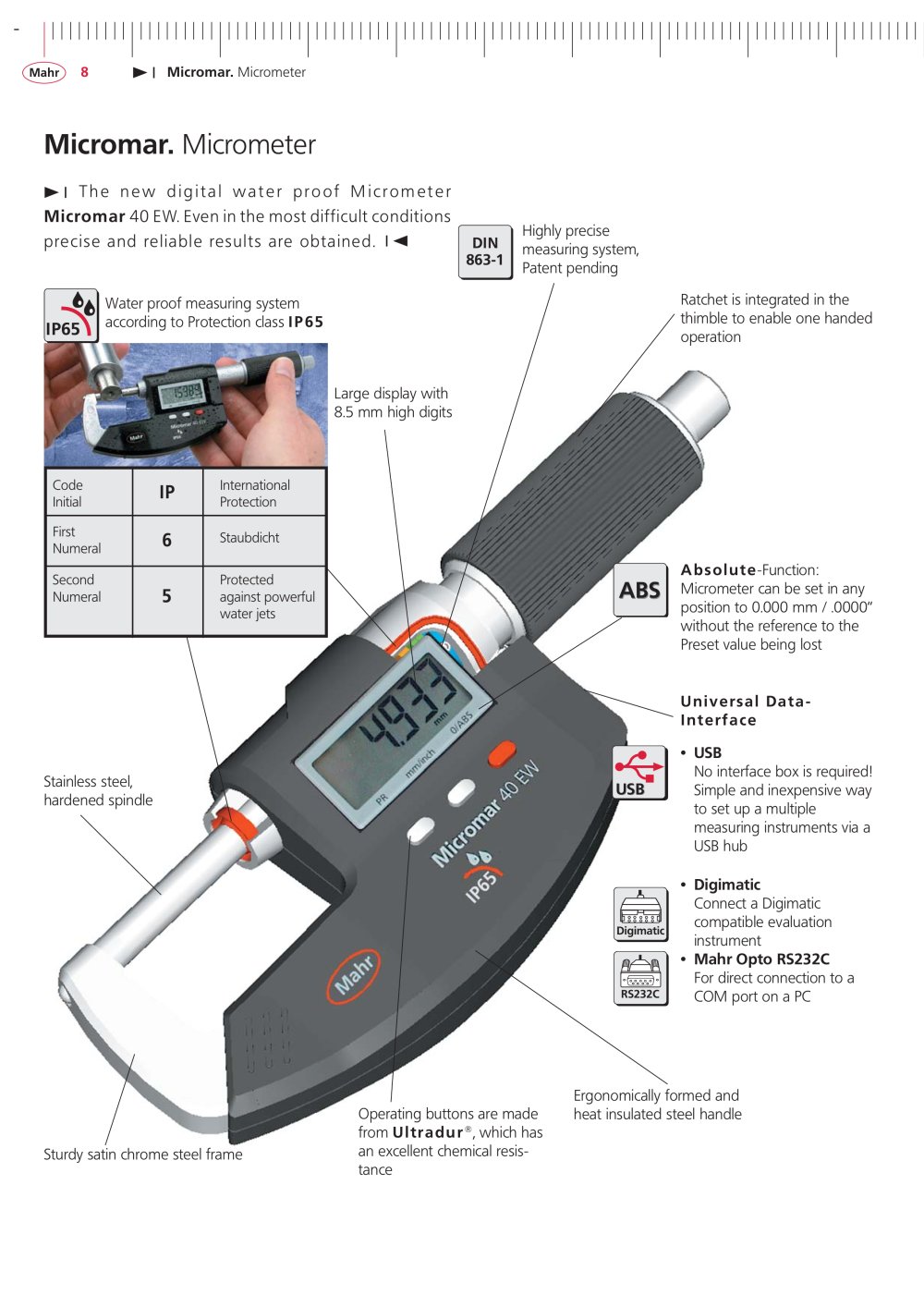

Water proof measuring system according to Protection class Ratchet is integrated in the thimble to enable one handed operation Operating buttons are made from > IP65 > Code International Initial ProtectionFirst Numeral Second Protected Numeral against powerful water jets Staubdicht Absolute -Function:Micrometer can be set in any position to 0.000 mm / .0000 without the reference to the Preset value being lost Large display with 8.5 mm high digits Stainless steel, hardened spindle Universal Data-Interfaceӕ USB > No interface box is required! Simple and inexpensive way to set up a multiple measuring instruments via a USB hub For direct connection to a COM port on a PC Mahr Opto RS232C Օ Digimatic Connect a Digimatic compatible evaluation instrument > Digimatic RS232C Ultradur > , which has an excellent chemical resis- tanceErgonomically formed and heat insulated steel handle Sturdy satin chrome steel frame Highly precise measuring system, Patent pending >

Open the catalog to page 1

Functions: DATA (Data transmission via connection cable) Patented, capacitive measuring system, life of battery ca. 2 yearsՕ MarConnect data output, choose alternatively USB OPTO RS232C Digimatic High contrast Liquid Crystal Display with 8.5 mm high digitsՕ Stain chrome steel frame, heat insulated Spindle and anvil are carbide tippedՕ Spindle is made of stainless steel, hardened throughout and ground Ratchet is integrated in the thimbleՕ Rapid drive Supplied with: Case, battery, operating instructions and setting standard (from measuring range 25-50 mm) RESET (Zero setting the display for Relative...
