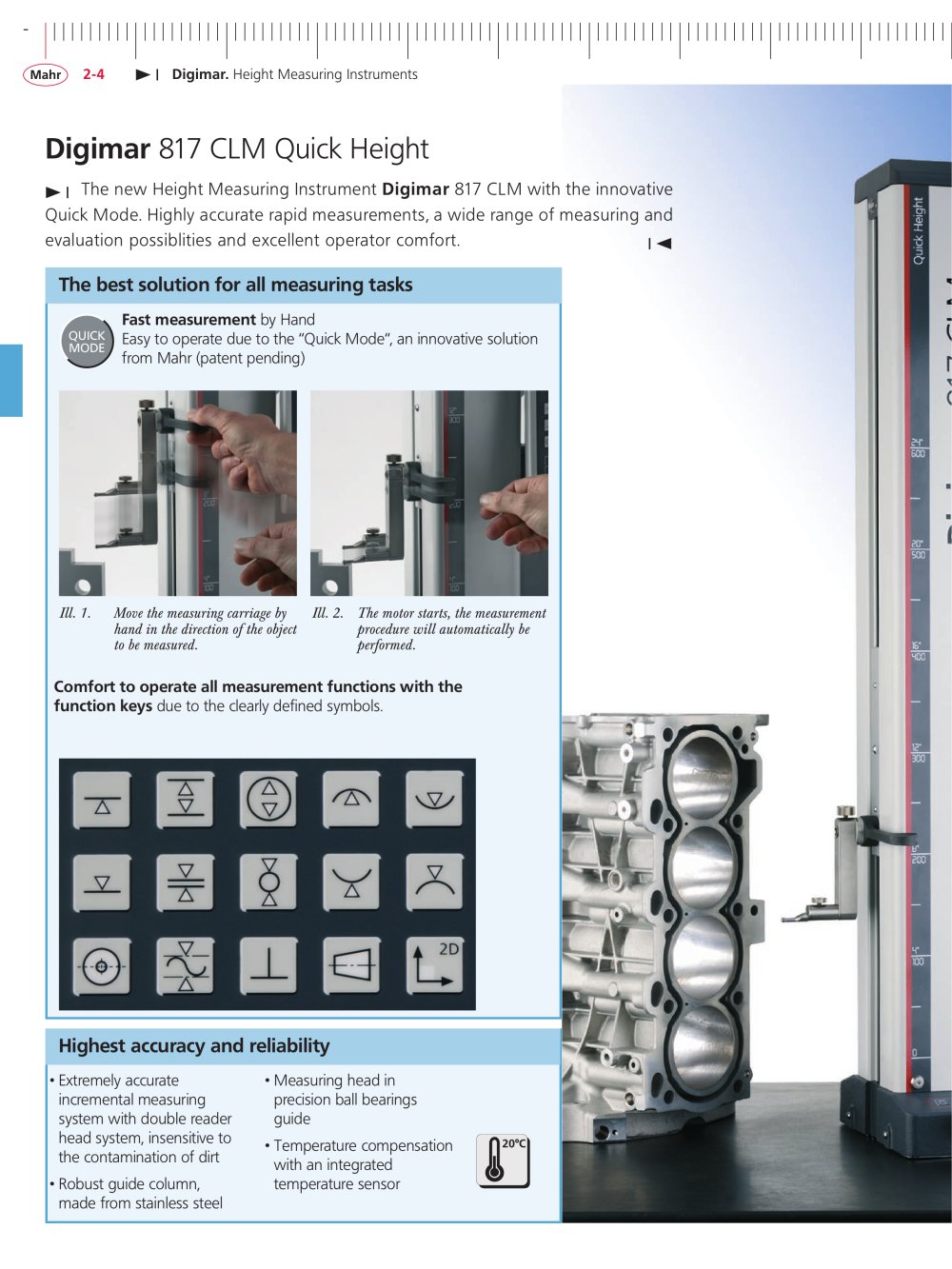

Overview: The Digimar 817 CLM is a height measuring instrument designed for rapid and accurate measurements with a focus on operator comfort. It features an innovative Quick Mode for easy operation and a wide range of measurement and evaluation possibilities.

Specifications: The instrument includes a highly accurate incremental measuring system with a double reader head, a robust stainless steel guide column, and a motorized measuring carriage. It offers temperature compensation with an integrated sensor and operates with a rechargeable battery for up to 16 hours.

Measurement Capabilities: The Digimar 817 CLM supports both 1D and 2D measurements, with dynamic functions such as automatic perpendicularity and straightness measurements. It can perform chain and distance measurements, and offers extensive evaluation possibilities including statistical evaluations and data transmission to PCs via RS232 or USB.

Display and Operation: The instrument features a large, back-lit display with self-explanatory icons and function keys. It supports multiple languages and allows for additional zero points on workpieces. The display unit is ergonomically designed and can be freely positioned.

Technical Data: The measuring range varies from 350 mm to 1000 mm, with a resolution down to 0.0001 mm. The instrument is designed to operate in temperatures from 10°C to 40°C and supports a relative humidity of up to 65%.

Accessories: A variety of probes and carriers are available, including spherical, disc, cylindrical, and taper probes. The instrument also supports additional hand measuring instruments via an Opto-RS232 interface.

Additional Features: The Digimar 817 CLM includes features such as automatic stand-by mode, selectable auto-off function, and the ability to save measured data on an integrated USB memory. It also supports software updates for future enhancements.
