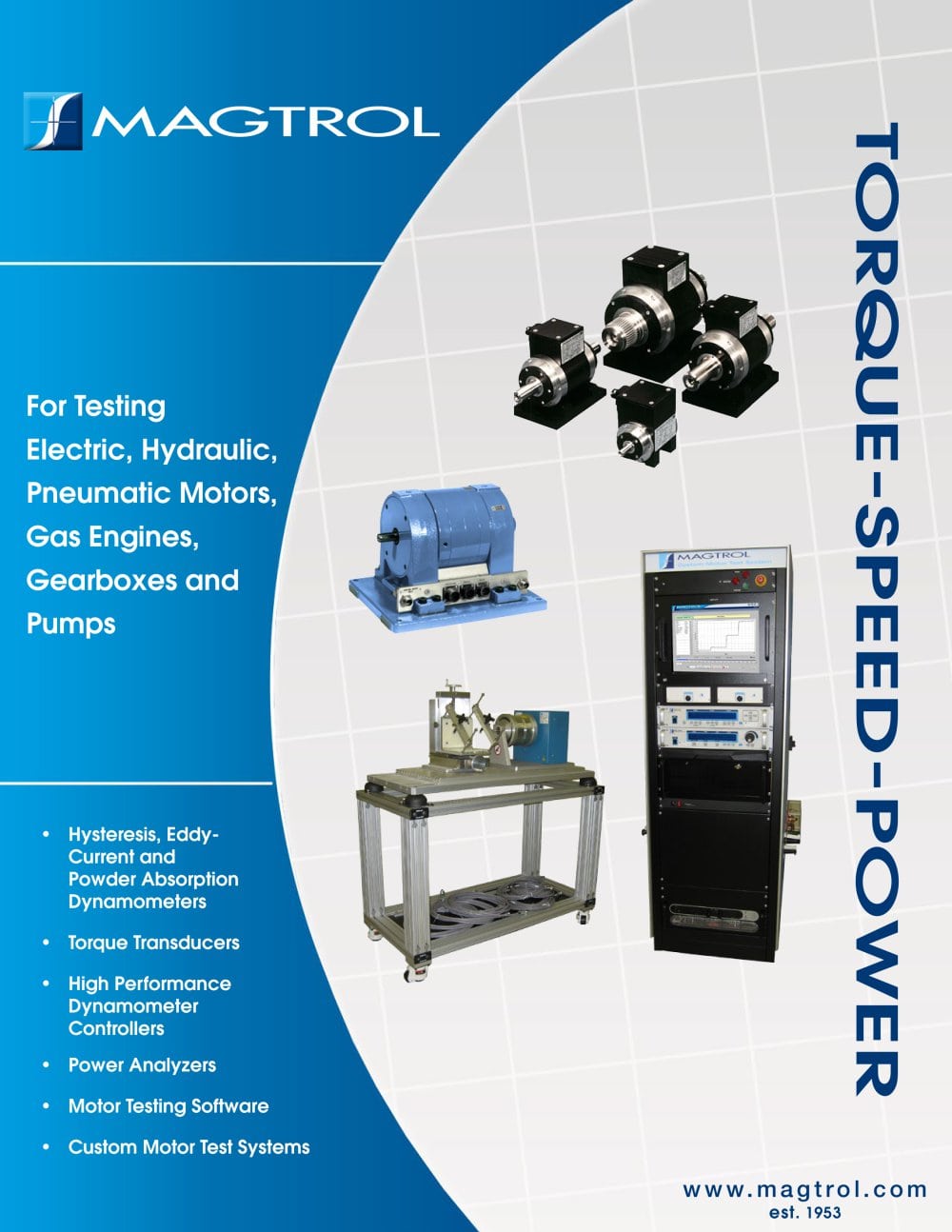

Torque-Speed-Power - 1

For Testing Electric, Hydraulic, Pneumatic Motors, Gas Engines, Gearboxes and Pumps • Hysteresis, EddyCurrent and Powder Absorption Dynamometers • Torque Transducers • High Performance Dynamometer Controllers • Power Analyzers • Motor Testing Software • Custom Motor Test Systems

Open the catalog to page 1
Torque-Speed-Power - 2

Torque Transducers TM 316 In-Line Torque Transducer TM, TMHS & TMB In-Line Transducers Magtrol's In-Line Torque Transducers deliver precise torque and speed measurement over a very broad range. Each model has an integrated conditioning electronic module providing 0 to ±10 V DC torque output and an open collector speed output. TF Torque Flange Sensors Based on strain-gauge technology, the TF Sensor’s precise telemetry system enables highly accurate signal transmission between its measuring flange, HF transmitter and receiver/conditioner. Special designs available on request. Nominal Rated...

Open the catalog to page 2
Torque-Speed-Power - 3

Motor Test Equipment MICRO DYNE Micro Dyne System Magtrol’s Micro Dyne, capable of measuring extremely low torques (2.0 mN·m can be resolved to 0.0004 mN·m), is designed exclusively for testing miniature and micro (low-torque) motors. WB23/wb27 Dynamometer 1WB23 and 1WB27 Eddy-Current Dynamometers Magtrol’s 1WB23 and 1WB27 Eddy-Current Brake Dynamometer is designed for very-high-speed motor testing applications up to 100,000 rpm. Custom Motor Test Systems Magtrol’s Customized Motor Test Systems (CMTS) are PC-based, turnkey systems custom designed and built to meet your specific motor...

Open the catalog to page 3
Torque-Speed-Power - 4

DYNAMOMETERS HYSTERESIS DYNAMOMETERS Model Maximum Torque Range Hysteresis Brake Dynamometers (HD) Hysteresis Brake Dynamometers (HD series) are versatile and ideal for testing in the low to middle power range (max. 14 kW intermittent duty). Hysteresis Brakes do not require speed to create torque, and therefore can provide a full motor ramp from free-run to locked rotor. Brake cooling is provided by convection (no external source) or by air (compressed air or dedicated blower) depending on the model. Magtrol HD-100 Dynamometer shown with Adjustable Motor Fixture, and PT 25 Base Plate *...

Open the catalog to page 4
Torque-Speed-Power - 5

Motor Testing Software In addition to M-TEST 7, Magtrol offers EM-TEST 2.0 specifically designed for endurance motor testing and DUALTEST 7 fully independent dual channel control software. Typical motor curve Manual test Standard Features • Graphical User Interface with tabbed pages for quick navigation. • Optional Analog and Digital I/O. • DSP7000 Programmable Controller Support. • Expanded power analyzer and power supply selections. • Additional test choices (coast and overload to trip). • Two page report generates a five-axis graph on second page. Dynamometer Controller DSP7000...

Open the catalog to page 5
Torque-Speed-Power - 6

Other Magtrol Products Load-Force-Weight Measurement • • • • Nominal value : up to 2,500 kN Accuracy class : < 0.5% Overload at rupture : up to 500% Test and certificate for component to CE standards and material certificate on request • Signal conditioner : - Analog or digital - Inputs : up to 2 channels - Outputs : 0 to 10 V, 4 to 20 mA or bus interface • Digital display Brakes and Clutches Hysteresis • • • • Torque : up to 26 N·m Speed : up to 25,000 rpm Power : up to 5,300 W (AHB) Air-cooled version (AHB) available for basic motor test rig configuration • Standard or customized brakes...

Open the catalog to page 6
