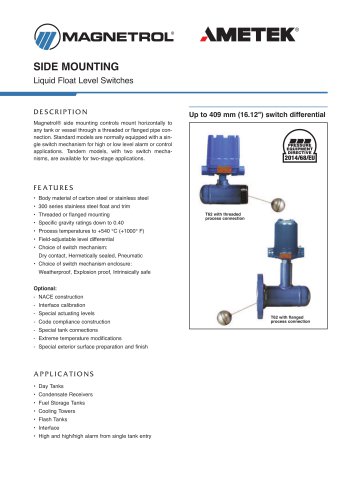

AMETEKSiDE MOUNTiNGLiquid Float Level SwitchesDESCRIPTION Magnetrol® side mounting controls mount horizontally to any tank or vessel through a threaded or flanged pipe connection. Standard models are normally equipped with a single switch mechanism for high or low level alarm or control applications. Tandem models, with two switch mechanisms, are available for two-stage applications. FEATURES • Body material of carbon steel or stainless steel • 300 series stainless steel float and trim • Threaded or flanged mounting • Specific gravity ratings down to 0.40 • Field-adjustable level differential • Choice of switch mechanism: Dry contact, Hermetically sealed, Pneumatic • Choice of switch mechanism enclosure: Weatherproof, Explosion proof, Intrinsically safe - NACE construction - Interface calibration - Special actuating levels - Code compliance construction - Special tank connections - Extreme temperature modifications - Special exterior surface preparation and finish • Condensate Receivers • Fuel Storage Tanks • Cooling Towers • Flash Tanks • High and high/high alarm from single tank entry

Side mounting units employ permanent magnetic force as the only link between the float and the switching element. As the pivoted float follows liquid level changes, it moves a magnetic sleeve ➀ into or out of the field of a switch actuating magnet ➁ causing switch operation. A nonmagnetic barrier tube ➂ effectively isolates the switch mechanism from the controlled liquid. snap switch falling level return spring rising level

Series B, C, D, R & U Dry contact switches ® • Series B and C switches are general purpose units with a selection of maximum liquid temperature ratings • Series D switch is designed for high DC current applications • Series U switches have gold alloy contacts • Series R switches are designed for the highest temperature applications up to +540 °C (+1000 °F) • Suited for process industry applications in hazardous locations or where electrical power is not available • Series J bleed type switch is intended for general purpose applications • Series K switch is specially designed to provide nonbleed...

Level differential in mm (inches) Models All units are factory set at minimum differential unless otherwise specified. Consult factory for differentials not shown. © Nozzle length is dimension L from end of standard control body to opening in tank having minimum diameter listed for each model.

SELECTION DATA T62/T64 SINGLE SWITCH A complete measuring system consists of: Order code for T62 models: MODEL NUMBER CODE AND MATERIALS OF CONSTRUCTION MECHANISM & HOUSING (next page) complete order code for T64 models ^ X = product with a specific customer requirement

SELECT ELECTRIC SWITCH MECHANISM & HOUSING T62-A & T64-A Models Switch Description Series B Snap switch Series C Snap switch Process ➀ Temperature Range °C (°F) Cast Iron (ATEX only) Series 9 1x SPDT High temperature -40 to +540 ¬ Hermetically (-40 to +1000) sealed 1x DPDT Snap switch Process ➀ Temperature Range °C (°F) Series 9 1x SPDT 92P High temperature -45 to +400 Hermetically (-50 to +750) sealed 1x DPDT 98P Snap switch Series R High temperature Snap switch Series R -40 to +400 1x SPDT High temperature (-40 to +750) 1x DPDT Snap switch Switch Description Cast Iron (ATEX only) Series 8 Hermetically...

A complete measuring system consists of: Order code for T67 models: MODEL NUMBER CODE AND MATERIALS OF CONSTRUCTION complete order code for T67 models X = product with a specific customer requirement

SELECT ELECTRIC SWITCH MECHANISM & HOUSING T67-A Models Switch Description Series B Snap switch Series C Snap switch Process ➀ Temperature Range °C (°F) Series R High temperature Snap switch Cast Iron (ATEX only) M20x1,5 Process ➀ Temperature Range °C (°F) Series 9 2x SPDT 94A High temperature -45 to +400 Hermetically (-50 to +750) sealed 2x DPDT 91A Snap switch Switch Description Cast Aluminium Series R -40 to +400 2x SPDT R4B R3B RL9 RD9 High temperature (-40 to +750) 2x DPDT RHB REB RP9 RG9 Snap switch Series 8 Hermetically sealed Snap switch Cast Iron (ATEX only) Series d -40 to +120 2x SPDT...

PHYSICAL SPECIFICATIONS ELECTRICAL CONNECTION

this dimension equals float, + stem length, minus 66 (2.60) WeatherproofFM (NEMA 7/9) ATEX (Cast Alu) ATEX (Cast Iron) Pneumatics Switch Module J Pneumatics Switch Module K model t62/t67 flanged min level differential 32 (1.25) this dimension equals float, + stem length, minus 76 (3.00) * dimensions for all housings, except for cast iron housing, add for these 76 mm (3") Housing type Allow 200 mm (7.87") overhead clearance / All housings are 360 ° rotatable M20 x 1,5 (*) or 1" NPT (2 entries - 1 plugged) (*) not for FM (neMA 7/9) M20 x 1,5 or 3/4" NPT (single entry - 2 entries at request) 1/4"

THE QUALITY ASSURANCE SYSTEM IN PLACE AT MAGNETROL GUARANTEES THE HIGHEST LEVEL OF QUALITY DURING THE DESIGN, THE CONSTRUCTION AND THE SERVICE OF CONTROLS. OUR QUALITY ASSURANCE SYSTEM IS APPROVED AND CERTIFIED TO iSo 9001 AND OUR TOTAL COMPANY IS COMMITTED TO PROVIDING FULL CUSTOMER SATISFACTION BOTH IN QUALITY PRODUCTS AND QUALITY SERVICE. PRoduCt WARRAntY ALL MAGNETROL MECHANICAL LEVEL CONTROLS ARE WARRANTED FREE OF DEFECTS IN MATERIALS AND WORKMANSHIP FOR 3 FULL YEARS FROM THE DATE OF ORIGINAL FACTORY SHIPMENT. IF RETURNED WITHIN THE WARRANTY PERIOD; AND, UPON FACTORY INSPECTION OF THE CONTROL,...
