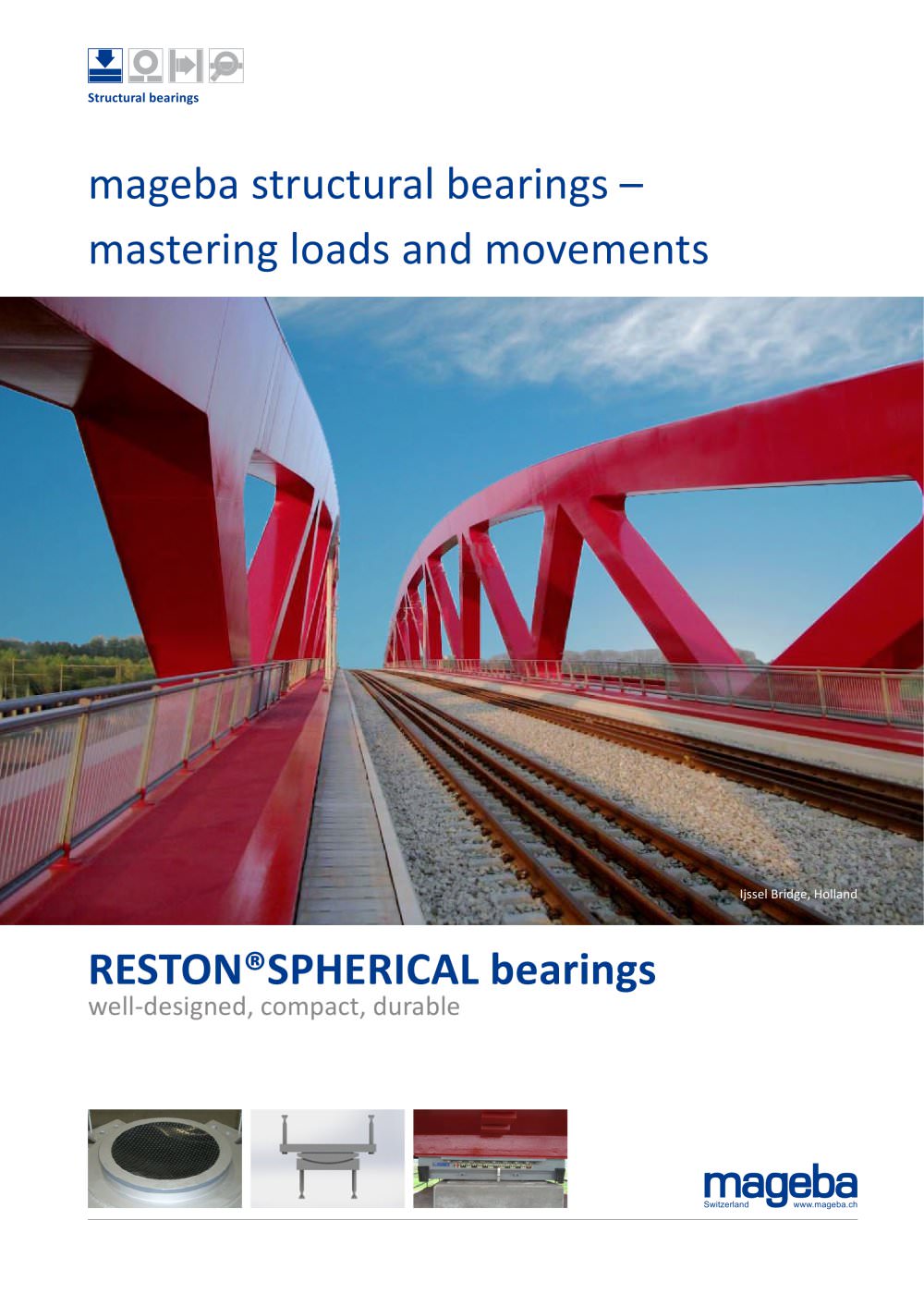

Structural bearings mageba structural bearings – mastering loads and movements Ijssel Bridge, Holland RESTON®SPHERICAL bearings well-designed, compact, durable

Open the catalog to page 1

Structural bearings Design and types Principle mageba RESTON®SPHERICAL bearings ensure the controlled transfer of loads between a structure’s superstructure and its substructure. They also accommodate rotations about any axis and – where appropriate – movements of the superstructure. Vertical and horizontal forces are transmitted to the substructure, while rotations are facilitated by a spherical calotte in a matching lower part concave. RESTON®SPHERICAL bearings are suitable for use in structures with medium to high loads, and structures with limited space for bearings. The design of...

Open the catalog to page 2

Structural bearings Properties and installation Anchoring Depending on design, bearings are connected to the superstructure and substructure by means of anchor dowels or threaded sockets, or by anchor plates with shear studs. Anchor dowels are suitable for the transmission of horizontal forces in the case of guided sliding (KE) and fixed (KF) bearings. Threaded sockets are suitable for free sliding (KA) bearings without anchor plates. The use of anchor plates simplifies future bearing replacement. The number of shear studs on each anchor plate depends on static design requirements. Mixed...

Open the catalog to page 3

Structural bearings Quality and support Quality Over the past five decades, mageba has supplied over 50,000 structural bearings for projects all around the world. The quality and durability of mageba bearings is thus ensured not only by their well-proven product properties, but also by the extensive experience of our personnel. RESTON®SPHERICAL bearings with ROBO®SLIDE are certified (ETA-08/0115) for use in Europe by the German Institute for Construction Technology (DIBt), on behalf of the European Organisation for Technical Approvals (EOTA). Quotations are provided on the basis of the...
