SCANplus 130 x 85

SCANplus 130 x 85
1 / 1 PageView full catalog

SCANplus 130 x 85

Product catalog summary
Order Information
Order No.: 48-24-651-0000, 4 mm ball screw pitch
Product Features
  • Integrated MR measuring system
  • Exchangeable stage inserts for various applications, including micro titer plates or 4 slides upon request
  • User-friendly design with a lowered motor axis
  • 5-year guarantee when used with Märzhäuser TANGO controller
  • Continuously adjustable optical light beam for travel range limitation
Accessories
  • Stage insert for 4 slides (Order No.: 48-24-520-3000, not included)
  • Stage insert for 1 or 2 slides (Order No.: 48-24-520-2000, not included)
Scanning Stage SCANplus 130 x 85 for Olympus BX Series
  • Travel range: 130 x 85 mm
  • Repeatability: < 1 µm (bi-directional, VDI / DGQ 3441)
  • Accuracy: +/- 1 μm (VDI / DGQ 3441)
  • Resolution: 0.05 µm (smallest step size)
  • Orthogonality: < 10 arc sec
  • Motor: 2-phase stepper motor
  • Max. travel speed: 240 mm/s, with 4 mm ball screw pitch
  • Limit switches: Continuously adjustable optical light beam
  • Material: Aluminium with anodic coating, black lacquered
  • Weight: 4,400 g
  • WEEE classification: Product group 9, WEEE weight: 220 g
Additional Information
  • Specifications are subject to change without notice
  • Specifications valid with Märzhäuser stage controller only
  • Issue Date: March 2012
Contact Information
Märzhäuser Wetzlar GmbH & Co. KG
In der Murch 15, D-35579 Wetzlar
Tel.: +49 6441 9116-0
Fax: +49 6441 9116-40
Email: [email protected]
Website: www.marzhauser.com
See more

Catalog excerpts

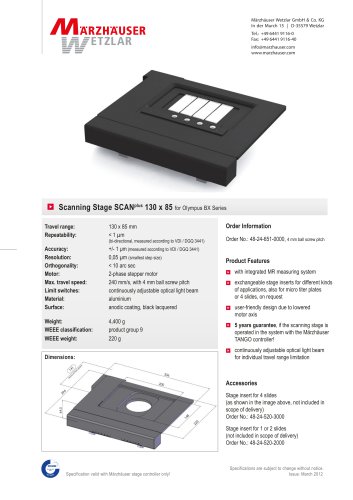

SCANplus 130 x 85-1

Marzhauser Wetzlar GmbH & Co. KG In der Murch 15 | D-35579 Wetzlar 71/Iarzhauser |=/ETZLAR□ Scanning Stage SCANplus 130 x 85 for Olympus BX Series Travel range: Repeatability: Max. travel speed: Limit switches: Material: WEEE classification: product group 9 (bi-directional, measured according to VDI / DGQ 3441) +/- 1 pm (measured according to VDI / DGQ 3441) 0,05 pm (smallest step size) 240 mm/s, with 4 mm ball screw pitch continuously adjustable optical light beam aluminium anodic coating, black lacquered Order Information Order No.: 48-24-651-0000, 4 mm ball screw pitch Product Features □ with integrated MR measuring system □ exchangeable stage inserts for different kinds of applications, also for micro titer plates □ user-friendly design due to lowered motor axis □ 5 years guarantee, if the scanning stage is operated in the system with the Marzhauser TANGO controller! □ continuously adjustable optical light beam for individual travel range limitation Accessories Stage insert for 4 slides (as shown in the image above, not included in Stage insert for 1 or 2 slides (not included in scope of delivery) Specification valid with Marzhauser stage controller only! Specifications are subject to change without notice.

 Open the catalog to page 1

All Märzhäuser Wetzlar catalogs and technical brochures

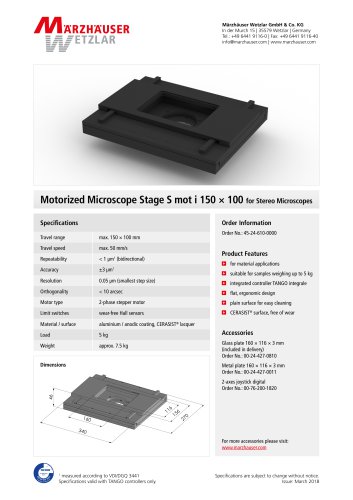

  1. S mot i 150 x 100
    S mot i 150 x 100

    1  Page

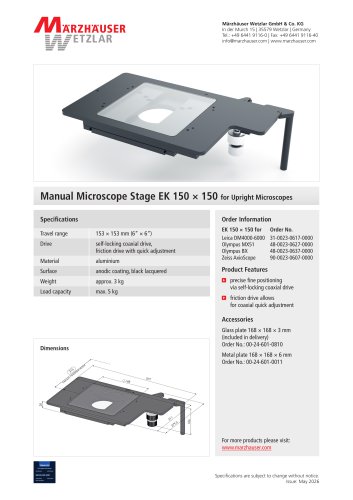

  2. EK 150 x 150
    EK 150 x 150

    1  Page

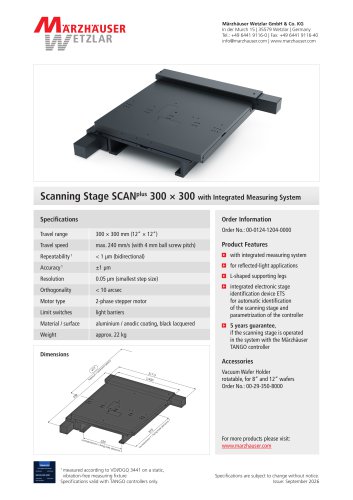

  3. SCANplus 300 x 300
    SCANplus 300 x 300

    1  Page

  4. EK 150 x 150
    EK 150 x 150

    1  Page

  5. SCAN IM 120 x 80
    SCAN IM 120 x 80

    1  Page

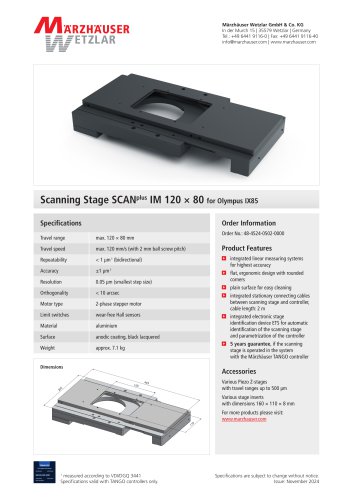

  6. SCANplus IM 120 x 80
    SCANplus IM 120 x 80

    1  Page

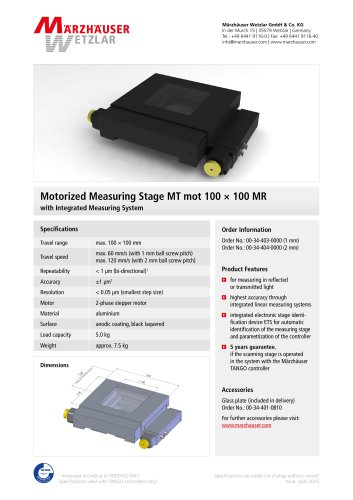

  7. MT mot 100 x 100 MR
    MT mot 100 x 100 MR

    1  Page

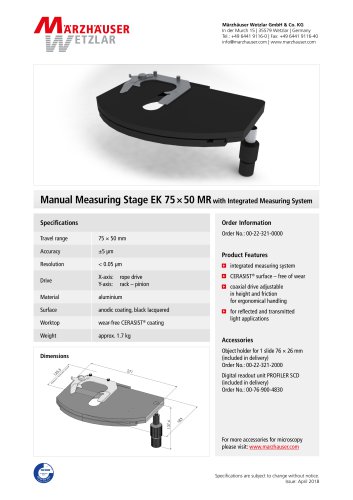

  8. EK 75 x 50 MR
    EK 75 x 50 MR

    1  Page

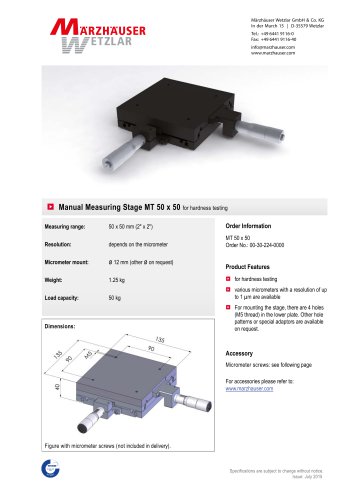

  9. MT 50 x 50
    MT 50 x 50

    2  Pages

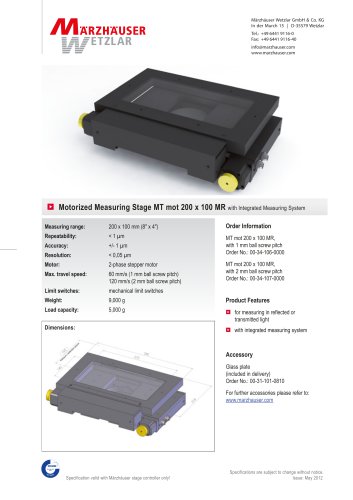

  10. MT mot 200 x 100 MR
    MT mot 200 x 100 MR

    1  Page

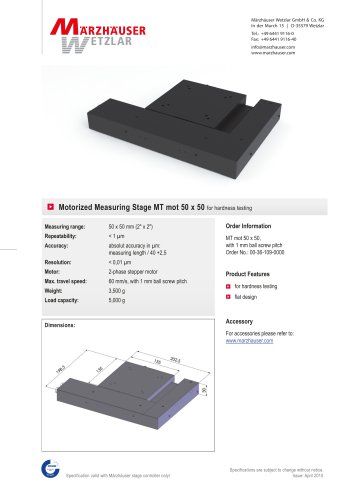

  11. MT mot 50 x 50
    MT mot 50 x 50

    1  Page

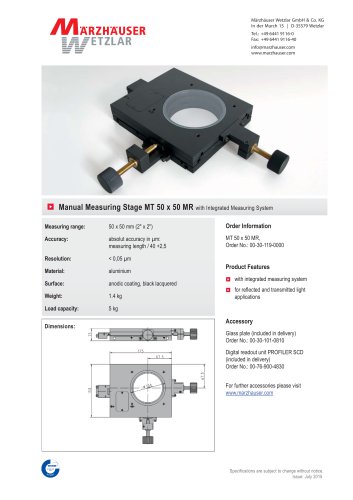

  12. MT 50 x 50 MR
    MT 50 x 50 MR

    1  Page

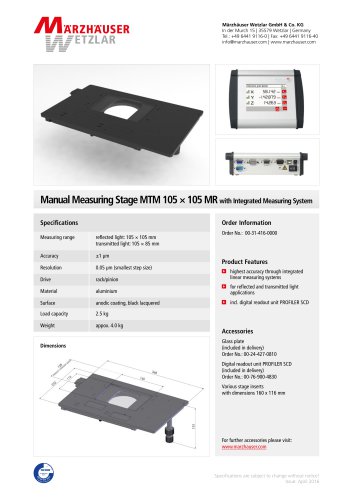

  13. MTM 105 x 105 MR
    MTM 105 x 105 MR

    1  Page

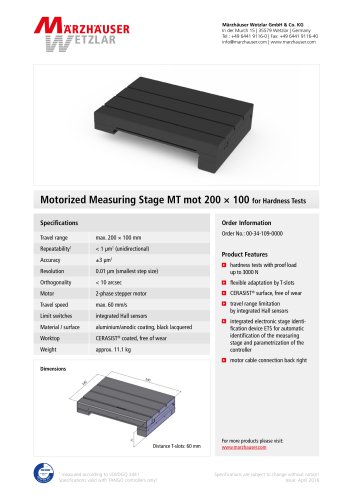

  14. MT mot 200 x 100
    MT mot 200 x 100

    1  Page

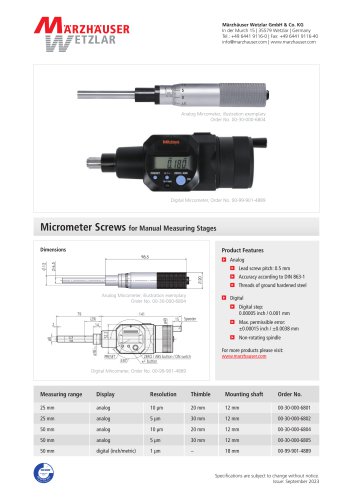

  15. Micrometer screw
