MALiS Multi Adaptive Lifting System für kundenspezifische Plattformen

Product catalog summary
Product Overview
The document provides technical specifications and ordering information for the MALiS (Multi Adaptive Lifting System) and SCANplus 70 × 70, developed by Märzhäuser Wetzlar GmbH & Co. KG. These systems are designed for custom platforms and are prepared for mounting on optical breadboards.

Specifications
  • Travel Range: XY: 70 × 70 mm, Z: 100 mm
  • Sample Stage Height: 225–325 mm, extendable to 425 mm with spacers
  • Travel Speed: XY: max. 100 mm/s, Z: max. 14 mm/s
  • Spindle Pitch: XY: 2 mm, Z: 0.79 mm
  • Accuracy: XY: ±1 µm, Z: ±2 µm
  • Repeatability: < 1 µm
  • Resolution: 0.05 µm
  • Motor Type: 2-phase stepper motor
  • Measurement System: Optical
  • End Switches: Wear-free Hall sensors
  • Material/Surface: Aluminum with black anodized coating
  • Working Surface: Wear-free CERASIST® surface
  • Load Capacity: 30 kg
  • Weight: XY: approx. 16 kg, Z: approx. 11 kg

Features
The system includes high-precision synchronous movement in the Z-axis through integrated optical measurement systems, customizable presets for Z-positioning, and autonomous Z-axis operation via joystick or control panel. It is configurable with alternative XY positioning systems, grid plates, or custom components.

Ordering Information
  • MALiS Order Number: 00-1547-0405-0000
  • SCANplus 70 × 70 Order Number: 00-5524-0302-0000

Additional Information
Specifications are valid only with TANGO controllers. For compatible accessories, visit the manufacturer's website.
See more

Catalog excerpts

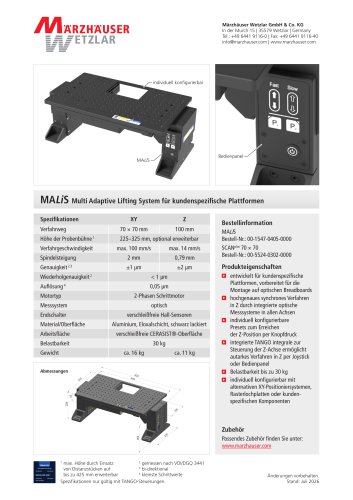

MALiS Multi Adaptive Lifting System für kundenspezifische Plattformen-1

Marzhauser Wetzlar GmbH & Co. KG In der Murch 15 | 35579 Wetzlar | Germany Tel.: +49 6441 9116-0 | Fax: +49 6441 9116-40 [email protected] | www.marzhauser.com individuell konfigurierbar Bestellinformation MALiS Produkteigenschaften □ entwickelt fur kundenspezifische Plattformen, vorbereitet fur die Montage auf optischen Breadboards □ hochgenaues synchrones Verfahren in Z durch integrierte optische Messsysteme in allen Achsen □ individuell konfigurierbare Presets zum Erreichen □ integrierte TANGO integrale zur Steuerung der Z-Achse ermoglicht autarkes Verfahren in Z per Joystick oder Bedienpanel □ individuell konfigurierbar mit alternativen XY-Positioniersystemen, Rasterlochplatten oder kunden-spezifischen Komponenten Anderungen vorbehalten. Stand: Juli 2026

 Open the catalog to page 1
