T-slot sensors
2Pages

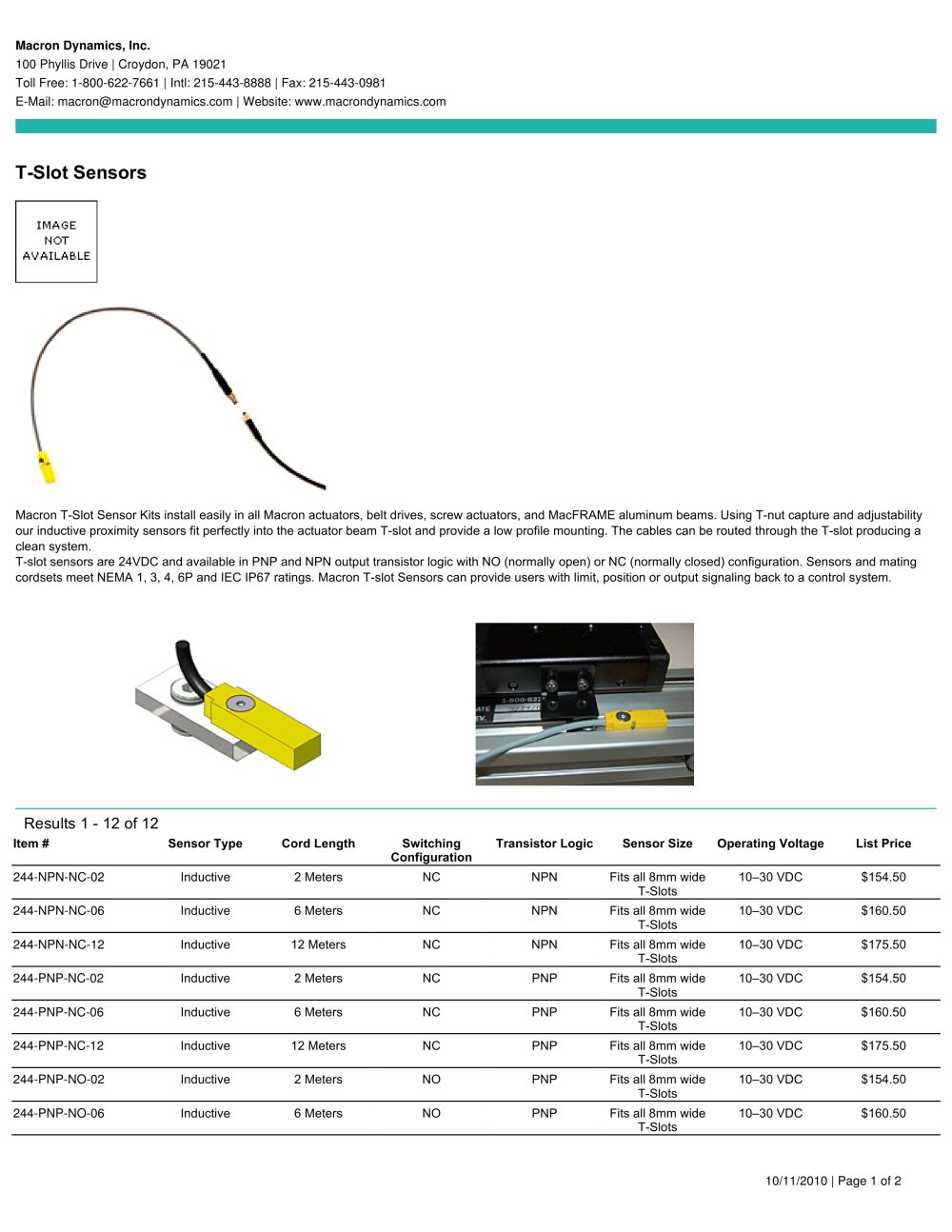

Macron Dynamics, Inc. 100 Phyllis Drive | Croydon, PA 19021 Toll Free: 1-800-622-7661 | Intl: 215-443-8888 | Fax: 215-443-0981 E-Mail: macron@macrondynamics.com | Website: www.macrondynamics.com T-Slot Sensors Macron T-Slot Sensor Kits install easily in all Macron actuators, belt drives, screw actuators, and MacFRAME aluminum beams. Using T-nut capture and adjustability our inductive proximity sensors fit perfectly into the actuator beam T-slot and provide a low profile mounting. The cables can be routed through the T-slot producing a clean system. T-slot sensors are 24VDC and available in PNP and NPN output transistor logic with NO (normally open) or NC (normally closed) configuration. Sensors and mating cordsets meet NEMA 1, 3, 4, 6P and IEC IP67 ratings. Macron T-slot Sensors can provide users with limit, position or output signaling back to a control system. Results 1 - 12 of 12 Item # Sensor Type Cord Length Switching Configuration Transistor Logic Sensor Size Operating Voltage List Price 244-NPN-NC-02 Inductive 2 Meters NC NPN Fits all 8mm wide T-Slots 10–30 VDC $154.50 244-NPN-NC-06 Inductive 6 Meters NC NPN Fits all 8mm wide T-Slots 10–30 VDC $160.50 244-NPN-NC-12 Inductive 12 Meters NC NPN Fits all 8mm wide T-Slots 10–30 VDC $175.50 244-PNP-NC-02 Inductive 2 Meters NC PNP Fits all 8mm wide T-Slots 10–30 VDC $154.50 244-PNP-NC-06 Inductive 6 Meters NC PNP Fits all 8mm wide T-Slots 10–30 VDC $160.50 244-PNP-NC-12 Inductive 12 Meters NC PNP Fits all 8mm wide T-Slots 10–30 VDC $175.50 244-PNP-NO-02 Inductive 2 Meters NO PNP Fits all 8mm wide T-Slots 10–30 VDC $154.50 244-PNP-NO-06 Inductive 6 Meters NO PNP Fits all 8mm wide T-Slots 10–30 VDC $160.50 10/11/2010 | Page 1 of 2

244-PNP-NO-12 Inductive 12 Meters NO PNP Fits all 8mm wide T-Slots 10–30 VDC $175.50 244-NPN-NO-02 Inductive 2 Meters NO NPN Fits all 8mm wide T-Slots 10–30 VDC $154.50 244-NPN-NO-06 Inductive 6 Meters NO NPN Fits all 8mm wide T-Slots 10–30 VDC $160.50 244-NPN-NO-12 Inductive 12 Meters NO NPN Fits all 8mm wide T-Slots 10–30 VDC $175.50 Results 1 - 12 of 12 10/11/2010 | Page 2 of 2
