MACRON CLEANLINE CONVEYORS

MACRON CLEANLINE CONVEYORS

Product catalog summary

Overview: Macron Dynamics' Cleanline Conveyors are designed for commercial and light industrial use, featuring extruded aluminum construction for a clean look and durability against corrosion and wear.

Specifications: The conveyors include aluminum rollers with a clear anodized finish, polypropylene bearings with stainless steel balls, and various guard rail configurations. They have a roller capacity of 15 pounds, with optional plastic rollers. Standard straight sections are 10 feet long, with custom lengths available.

Design Features: The conveyors are designed without exposed bolts or fittings to prevent contamination, making them ideal for food and meat tray handling due to their hygienic and easy-to-clean design.

Conveyor Types: Different types are available based on guard rail configurations: HH (no guard rails), LL (high guard rails), TT (low guard rails), TH (low on one side), LH (high on one side), and LT (high on one side, low on the other).

Product Variants: Tables in the document detail various conveyor models, dimensions, roller centers, catalog numbers, and weights. Curve sections for 90º and 45º angles are also specified, including inner and outer radii, roller centers, and frame types.

Supports and Load Capacity: Supports are available for different widths, with load capacities ranging from 250 to 500 pounds. Each support includes braces, and adjustable double-deck stands are available.

Recommendations: Users must assess the suitability of conveyors for their applications. Defective products will be replaced if returned promptly, but liability is limited to replacement.

Additional Specifications: Uprights are made from 1” square x 1/8” wall aluminum anodized tubes, standing 6’ high with aluminum foot pads. Cross members are 7/8” round steel tubing with a vertical channel and set screws. Available widths include 12”, 15”, 18”, 21”, 27”, and 33” inside clearance.

Materials and Finish: Uprights are aluminum with foot pads, and cross members are PVC tubing reinforced with threaded rods. Steel parts are zinc plated.

Product Information: Catalog Number CL006-00000 weighs 2 lbs. Contact information for Macron Dynamics, Inc. is provided for further inquiries.

Gates and Wall Supports: Conveyor widths and catalog numbers are listed with weights and load capacities. Assembly fasteners are included, but wall fastening bolts or screws are not.

Gate Specifications: Various gate lengths and roller centers are listed with catalog numbers and weights. Gates should open against material flow, with hinges made from zinc plated steel channel.

Additional Features: CLEANLINE conveyors offer special fittings for easy installation, curve sections for layout adaptation, and design flexibility for special assemblies like double-deck conveyors.

Catalog excerpts

MACRON DYNAMICS, INC. 460 CAREDEAN DRIVE • HORSHAM, PA 19044 1-800-MACRON-1 (1-800-622-7661) 215-443-8888 • Fax 215-443-0981 E-mail: [email protected] www.macrondynamics.com 66 MACRON CONVEYORS The specifications and data in this publication are believed to be accurate and reliable. However it is the responsibility of the product user to determine the suitability of Macron Dynamics, Inc products for a specific application. While defective products will be replaced without charge if promptly returned, no liability is assumed beyond such replacement.

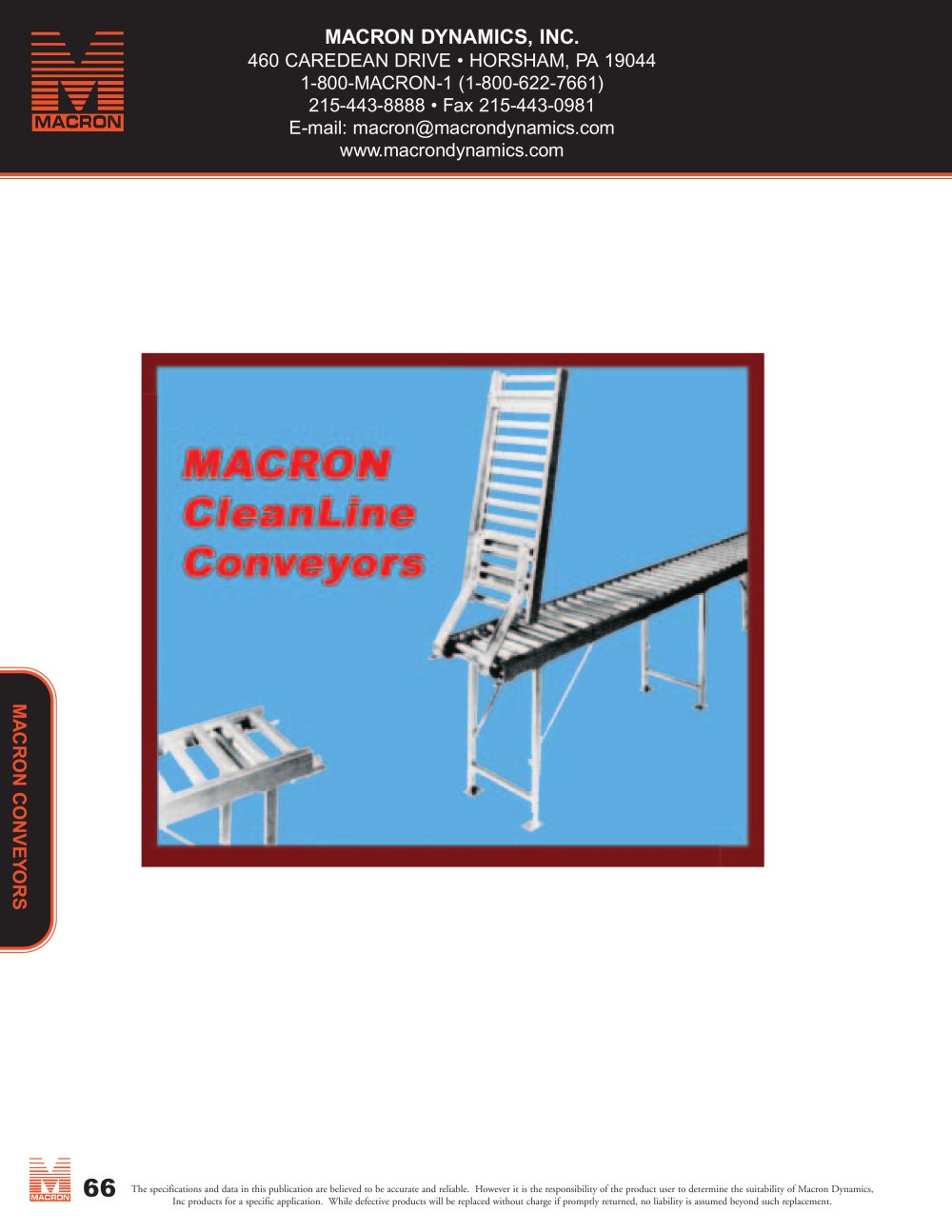

Open the catalog to page 1
