The Macpresse two-stage shear design and the heavy construction of the ram combined with the 170 tons of thrust allows the baler to cut the most difcult material without shock. This is accomplished due to the fact that the compacting cylinder and the bale extrusion channel adjusts automatically as required by the material to be compacted. The MSS diagnostic system is composed of a Siemens-type operator panel and a control program patented by Macpresse. This feature assist the personnel identify electrical, mechanical or hydraulic malfunctions easily. A fault is identied with a digital photograph highlighting the area of concern. Additionally, detailed reports are generated documenting production data, number of bales made by grade, downtime, electric power consumption per ton, average hourly production and labour cost per ton. This information and analysis is stored using an Excel format. The operator panel comes with a modem that permits remote maintenance of the baler functions. In order to decrease the density of heavy incoming materials such as coated paper and magazines, upon request the baler can be equipped with a hydraulically powered leang device that avoids the unnecessary use of the chopper. The electric system is equipped with special “SCART” connection plugs providing quick wiring on the main control panel, the hopper and the binder. Bale dimensions on the 111AS/1 have been studied to optimise loading of sea container, truck and railway cars. Load of bales on sea containers www.danilogaleazzi.it TECHNICAL CARD Loading hopper Bale dimensions (H x W) Number of wires Baler weight Weight of the baler with uffer Main motor power Maximum thrust of the trolley Side press ap Load of PET bottles on truck Specic pressure of the trolley Loading volume Cycles per minute OCC Load of loose bales wrapped in protective lm for sea cargo Load of bales on railcars MAC 111AS/1 2100 x 1020 mm 82½” x 40” 1100 x 1100 mm 43” x 43” 5 45.200 Kg. 99.643 Lbs 50.200 Kg 110.666 Lbs 2 x 75 Kw 170.000 Kg 374.765 Lbs 14 Kg/cm² 200 PSI 2,9 m³ 103 Cu/Ft 4 Steel cans HARDOX © Patented application system Macpresse reserves the right to modify its machinery as required without notice. PET bottles High grade The MAC 111AS/1 Series baler has 170 tons of power. The unique Macpresse pre-set pressure system, automatically manages the maximum density possible for each type of recyclable material. An optional proportional valve can be added to the hydraulic circuit that permits the manual setting of the desired compacting pressure for each grade. This permits the compaction of different materials such as paper, plastic, and waste and provides the materials with the ideal pressures of thrust and braking to obtain the maximum density of the bales. E U R O PA Balers - Conveyor belts - Shredders - Sorting plants Presse - Nastri trasportatori - Trituratori - Impianti di selezione Loc. S. Giuseppe 20080 Vernate - Milano - Italy Tel. +39-02.905.24.20 - Fax +39-02.905.28.93 www.macpresse.com mail: [email protected] MAC 111AS/1

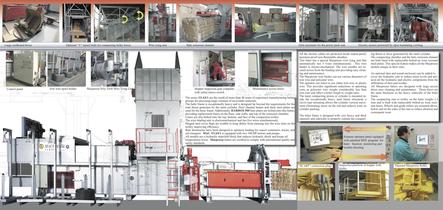

Large cardboard boxes Control panel Optional “V” tunnel belts for compacting bulky boxes Iron wire spool holder Macpresse Poly-Tie® Wire Tying Unit Wire tying unit Bale extrusion channel Hopper inspection gate complete with safety micro-switch Dust enclosure for the power pack unit Maintenance access doors The series 111AS/1 are the result of more than 40 years of experience manufacturing baling presses for procesing large volumes of recyclable materials. The baler frame is exceptionally heavy and is designed far beyond the requirements for the total thrust generates by the main cylinder. Steel...
