Mac 110/1

Product catalog summary

Overview: The MAC 110/1 and MAC 111/1 are advanced baling presses designed for handling large volumes of recyclable materials. These machines are the culmination of over 40 years of experience in the field.

Specifications:

Loading Hopper: 1800 x 1020 mm (70” x 40”)
Bale Dimensions: 1100 x 1100 mm (43” x 43”)
Number of Wires: 5
Baler Weight: MAC 110/1: 44,300 Kg (97,650 Lbs), MAC 111/1: 44,500 Kg (109,122 Lbs)
Main Motor Power: MAC 110/1: 92 Kw, MAC 111/1: 2 x 55 Kw
Maximum Thrust: 170,000 Kg (374,765 Lbs)
Specific Pressure: 14 Kg/cm² (200 PSI)
Loading Volume: 2.7 m³ (100 Cu/Ft)
Cycles per Minute: MAC 110/1: 4, MAC 111/1: 5

Design and Features:

The baling press frame is robustly constructed to handle high hydraulic pressures.
Compaction chambers are lined with replaceable liners for durability.
The binding unit uses an electromechanical system with horizontal wires to prevent material interference.
MAC 110/1 features a single motor unit, while MAC 111/1 has a dual motor hydraulic system.
Hydraulic manifold block enhances heat dissipation and reduces hydraulic shock.
Flameproof conduit protects electrical cables.

Technology and Safety:

Equipped with Siemens Simatic industrial PC for management data and diagnostics.
Certified to meet international safety and quality standards.
Features include dust control, sound and dust enclosures for motors, and a patented MSS program for monitoring and troubleshooting.

Additional Features:

Optional PET perforator for increased baling efficiency.
Maintenance access doors and inspection platforms for ease of service.

Catalog excerpts

Plastic film Aluminum cans White ledger WWW.MACPRESSE.COM MAC 110/1 MAC 111/1 Loading hopper 1800 x 1020 mm 70” x 40” 1100 x 1100 mm 43” x 43” 5 44.300 Kg. 97.650 Lbs 49.300 Kg. 108.700 Lbs 92 Kw 170.000 Kg. 374.765 Lbs 1800 x 1020 mm 70” x 40” 1100 x 1100 mm 43” x 43” 5 44.500 Kg. 109.122 Lbs 49.500 Kg. 109.122 Lbs 2 x 55 Kw 170.000 Kg. 374.765 Lbs Bale dimensions (H x W) PET ONP PET Number of wire Baler weight Weight of the baler with fluffer Main motor power Maximum thrust of the trolley 18 00 MAC 110/1 MAC 111/1 70 ” Mm. Inches HARDOX © 6965 274” TECHNICAL CARD www.danilogaleazzi.it Patented application system 20 ” 37 10 65 50 25 8” 11 81 0 46 5” 52 60 ½” 20 7” OCC Specific pressure of the trolley Loading volume PET A PET perforator has been specifically developed for PET containers. Perforated plastic containers increase baling efficiency and bale weights. A PET perforator has been specifically developed for PET containers. Perforated plastic containers increase baling efficiency and bale weights. Macpresse Conveyor Guardian© Safety System Macpresse Conveyor Guardian Safety System Cycles per minute 14 Kg/cm² 200 PSI 2,7 m³ 100 Cu/Ft 4 14 Kg/cm² 200 PSI 2,7 m³ 100 Cu/Ft 5 00 9 90 10 90 23 ½” 0” 27 90 50 5” 20 90 23 59 Should the need arise, characteristics and dimensions of machinery may be changed at the discretion of our Technical Department. Loc. S. Giuseppe 20080 Vernate - Milano - Italy Tel. +39-02.905.24.20 - Fax +39-02.905.28.93 www.macpresse.com mail: [email protected] MAC 110/1 MAC 111/1

Open the catalog to page 1

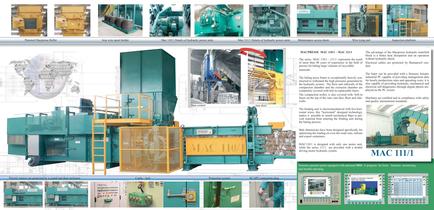

Patented Macpresse fluffer Iron wire spool holder Mac 110/1 Details of hydraulic power units Mac 111/1 Details of hydraulic power units Maintenance access doors Wire tying unit Inspection platform MACPRESSE MAC 110/1 – MAC 111/1 The advantage of the Macpresse hydraulic manifold block is a better heat dissipation and an operation The series MAC 110/1 - 111/1 represents the result without hydraulic shock. of more than 40 years of experience in the field of Electrical cables are protected by flameproof conpresses for baling large volumes of recyclable duit. materials. The baler can be provided with...

Open the catalog to page 2
