Mac 102

Product catalog summary

Technical Specifications
The MAC 102 baler is designed for processing medium volumes of recyclable materials. It features a loading hopper of 1350 x 750 mm (53” x 29 ½”) and produces bales with dimensions of 800 x 800 mm (31 ½” x 31 ½”). The baler weighs 10,700 Kg (23,540 Lbs) and operates with a main motor power of 22 Kw. It has a maximum thrust of 55,000 Kg (122,000 Lbs) and a specific pressure of 7 Kg/cm² (100 PSI). The loading volume is 1.03 m³ (36 Cu.Ft.) with a cycle rate of 5 per minute.

Design and Construction
The MAC 102 is over-designed for structural stability, using high-strength "Hardox" steel for the compaction trolley rollers. The construction ensures easy maintenance with bolted components.

Compaction Trolley
The trolley compresses materials fed into the hopper, featuring heavy structural steel and slots for wire binding. It includes a cutting blade bolted to a thick steel beam, with oversized, interchangeable side rollers.

Hydraulic Power Unit
Utilizes high-quality pumps and efficient motors for reduced consumption and noise. The hydraulic circuit is simple and easy to maintain.

Production Efficiency
The MAC 102 offers high production efficiency due to the speed of the compaction cylinder and the serrated cutting system.

Operational Concept
The hydraulic circuit is efficient, with independent operation of the main cylinder and electro-mechanical wire tying. This design maximizes efficiency and productivity.

Cutting Blade Jamming
A special hydraulic circuit design allows easy resolution of jams by relaxing counter pressure, enabling the main cylinder to push material forward.

Binding Unit
The electro-mechanical, horizontal binding unit uses four wires and is easy to maintain. It does not require special building modifications and offers greater reliability compared to vertical systems.

Catalog excerpts

MACPRESSE EUROPA vanta più di venti rappresentanze in tutto il mondo. MACPRESSE EUROPA has a network of more than 20 divisions outsides of Italy WWW.MACPRESSE.COM 53 ” 13 50 Mac 102 29 ½” 75 0 116” 2945 84½” 2145 194” 4945 78” 2000 inches mm. 16 4” 41 75 30 9” 78 50 14 5” 36 8” 36 75 93 50 50 Should the need arise, characteristics and dimensions of machinery may be changed at the discretion of our Technical Department. 59 4 ” 1 57 ” 1 50 0 50 4” 10 26 00 1” 41 16 www.danilogaleazzi.it SCHEDA TECNICA TECHNICAL CARD MAC 102 Tramoggia di carico Loading hopper Dimensioni balle (A x L) Bale dimensions (H x W) Numero dei fili Number of wires Peso pressa Baler weight Potenza motore principale Main motor power 1350 x 750 mm 53” x 29 ½” 800 x 800 mm 31 ½” x 31 ½” 4 Spinta massima carrello Maximum thrust of the trolley Pressione specifica carrello Specific pressure of the trolley Volume di carico Loading volume Cicli al minuto Cycles per minute 55.000 Kg 122.000 Lbs 7 Kg/cm² 100 PSI 1,03 m³ 36 Cu.Ft. 5 E U R O PA Balers - Conveyor belts - Shredders - Sorting plants Presse - Nastri trasportatori - Trituratori - Impianti di selezione Loc. S. Giuseppe 20080 Vernate - Milano - Italy Tel. +39-02.905.24.20 - Fax +39-02.905.28.93 www.macpresse.com 10.700 Kg. 23.540 Lbs. 22 Kw MAC 102

Open the catalog to page 1

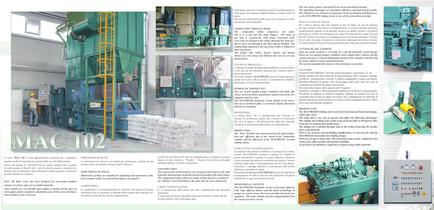

Nella parte superiore è installata una trave di grande spessore sulla quale viene fissata, mediante bulloni, la lama mobile di taglio. Sui lati sono posizionate della ruote di scorrimento sovradimensionate intercambiabili. COMPACTION TROLLEY (RAM) The compaction trolley compresses the material as it is fed into the baler hopper. The front of the ram is constructed with heavy structural steel. Four slots are formed in the trolley allowing the tying needles to carry wire through to the other side for binding. The cutting blade attached to the top of the trolley is bolted to a thick steel beam....

Open the catalog to page 2
