Product documentation MSDS

Product documentation MSDS
1 / 2 PagesView full catalog

Product documentation MSDS

Product catalog summary
Overview: The document provides technical specifications and features of the oil-free compressor range, highlighting its robust design, high performance, and low maintenance costs. The compressors are designed for operation in ambient temperatures up to 45°C and are equipped with a powerful electronic controller for enhanced performance and reliability.
Key Features:
  • Oil-free air compression with a two-stage compression system and special rotor coating for long-term efficiency.
  • Direct drive system with flexible coupling and bell housing coupling protection.
  • High-performance electrical motor with IP55 protection and class F insulation, ensuring IE4 efficiency.
  • Advanced cooling system with a two-stage cooling process, radial fan, and water separator for both stages.
  • SMARTRONIC PLUS electronic controller offering alarm and preventive maintenance features, remote control, and master/slave operation via serial connection.
Specifications:
  • Models range from MSDS 37 to MSDS 315, with power outputs from 37 kW to 315 kW.
  • Dimensions vary, with most models measuring 2450 x 1600 x 2160 mm, and larger models up to 3685 x 2140 x 2715 mm.
  • Air outlet sizes range from 2" BSP to DN 100.
  • Weight ranges from 2270 kg to 6300 kg depending on the model.
  • Air flow rates are specified for different pressures (7.5 bar, 8.5 bar, and 10 bar), with the highest flow rate at 50.1 m3/min for the MSDS 315 model at 10 bar.
Performance and Reliability: The compressors are noted for their proven reliability and quality, with a robust and economical design that ensures extended service life and easy servicing. The SMARTRONIC PLUS controller enhances operational efficiency through features like a weekly timer and MODBUS protocol support.
Contact Information: For further details, the document provides contact information for MAC3, the distributor, including phone, fax, and email, as well as a link to the full product catalogue.
See more

Catalog excerpts

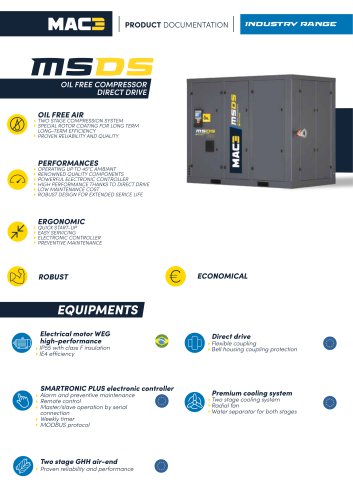

Product documentation MSDS-1

PRODUCT DOCUMENTATION INDUSTRY RANGE MSDS OIL FREE COMPRESSOR DIRECT DRIVE TWO STAGE COMPRESSION SYSTEM SPECIAL ROTOR COATING FOR LONG TERM LONG-TERM EFFICIENCY PROVEN RELIABILITY AND QUALITY OPERATING UP TO 45°C AMBIANT RENOWNED QUALITY COMPONENTS POWERFUL ELECTRONIC CONTROLLER HIGH PERFORMANCE THANKS TO DIRECT DRIVE LOW MAINTENANCE COST ROBUST DESIGN FOR EXTENDED SERICE LIFE QUICK START-UP EASY SERVICING ELECTRONIC CONTROLLER PREVENTIVE MAINTENANCE EQUIPMENTS Electrical motor WEG high-performance IP55 with class F insulation IE4 efficiency SMARTRONIC PLUS electronic controller Alarm and preventive maintenance Remote control Master/slave operation by serial connection Weekly timer MODBUS protocol Proven reliability and performance Direct drive Flexible coupling Bell housing coupling protection Premium cooling system Two stage cooling system Radial fan Water separator for both stages

 Open the catalog to page 1
Product documentation MSDS-2

AIR OUTLET DIMENSIONS WEIGHT MACS 10 allee du canal ZC des Landes 42160 Saint-Cyprien FRANCE

 Open the catalog to page 2

All MAC3 catalogs and technical brochures

  1. Product documentation SEPREMIUM
    Product documentation SEPREMIUM

    2  Pages

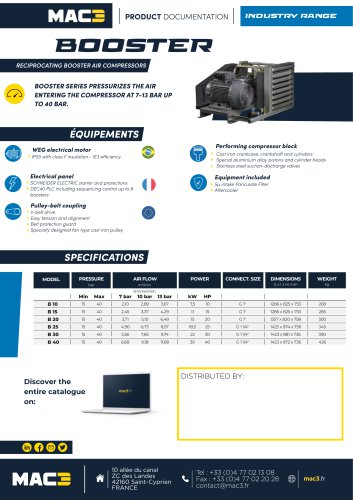

  2. Product documentation Booster
    Product documentation Booster

    1  Page

  3. Product documentation DBP
    Product documentation DBP

    2  Pages

  4. Product documentation DA
    Product documentation DA

    2  Pages

  5. Product documentation DMD
    Product documentation DMD

    2  Pages

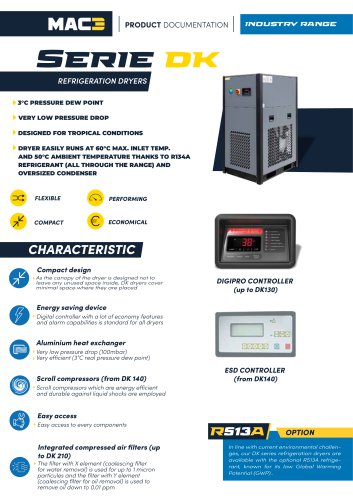

  6. Product documentation DK
    Product documentation DK

    2  Pages

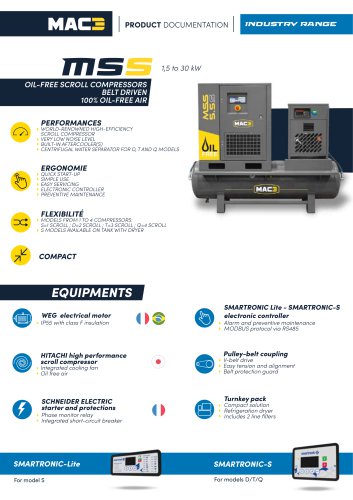

  7. Product documentation MSS
    Product documentation MSS

    2  Pages

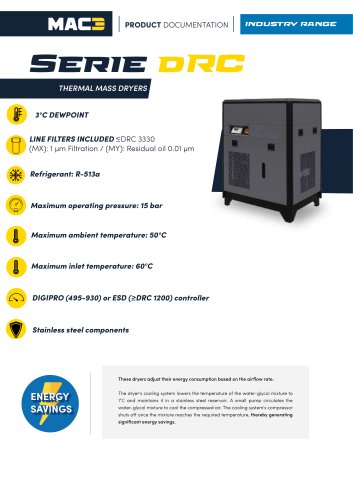

  8. Product documentation DRC
    Product documentation DRC

    2  Pages

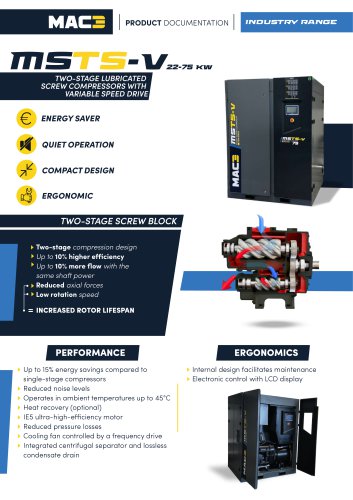

  9. Product documentation MSTS-V 22-75 kW
    Product documentation MSTS-V 22-75 kW

    2  Pages

  10. Product documentation MSDS-V
    Product documentation MSDS-V

    2  Pages

  11. Product documentation MSTS-V 90-315 kW
    Product documentation MSTS-V 90-315 kW

    2  Pages

  12. Product documentation MSTS
    Product documentation MSTS

    2  Pages

  13. Product documentation MSD-V PM
    Product documentation MSD-V PM

    2  Pages

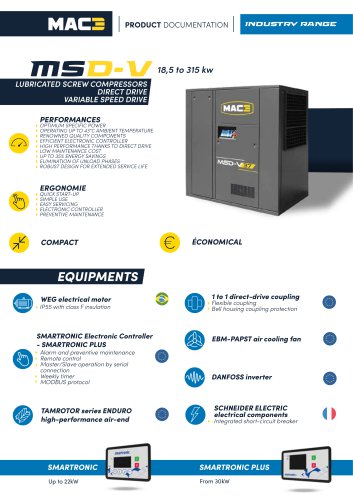

  14. Product documentation MSD-V 18-315 kW
    Product documentation MSD-V 18-315 kW

    2  Pages

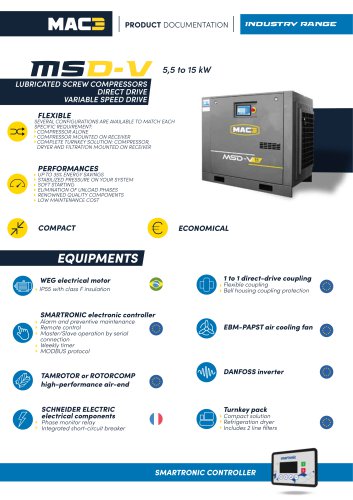

  15. Product documentation MSD-V 5-15 kW
    Product documentation MSD-V 5-15 kW

    2  Pages

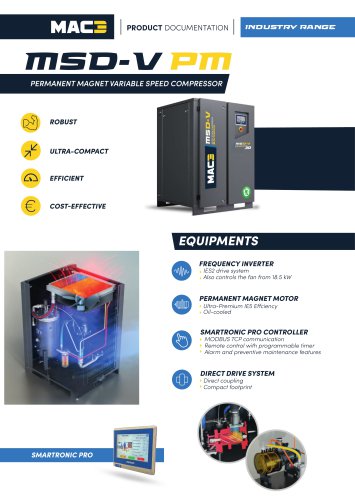

  16. Product documentation MSD
    Product documentation MSD

    2  Pages

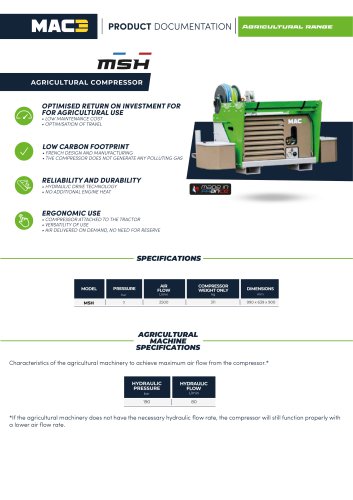

  17. Product documentation MSH
    Product documentation MSH

    2  Pages

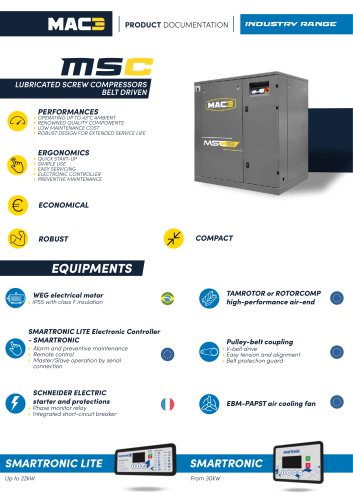

  18. Product documentation MSC
    Product documentation MSC

    2  Pages

  19. Product documentation MSB
    Product documentation MSB

    2  Pages

  20. Product documentation AIRGO
    Product documentation AIRGO

    2  Pages

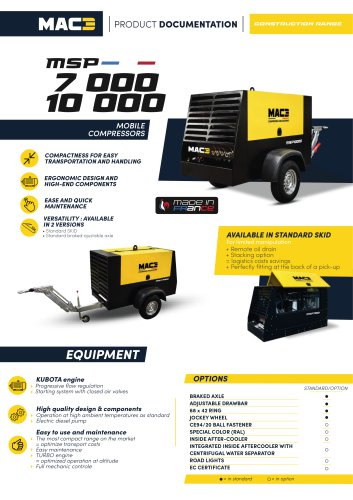

  21. Product documentation MSP7000-10000
    Product documentation MSP7000-10000

    2  Pages

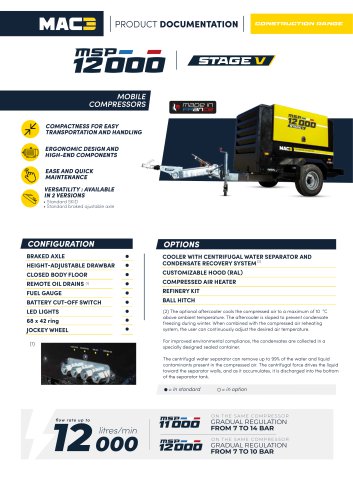

  22. Product documentation MSP12000
    Product documentation MSP12000

    2  Pages

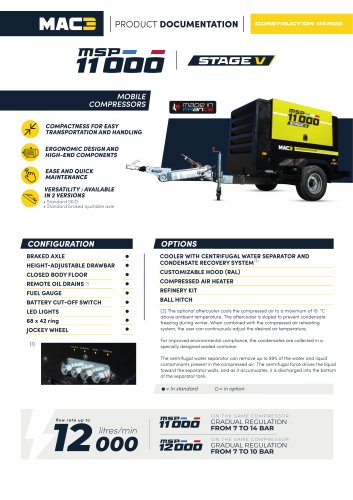

  23. Product documentation MSP11000
    Product documentation MSP11000

    2  Pages

  24. Product documentation MSP5000 EXPORT
    Product documentation MSP5000 EXPORT

    2  Pages

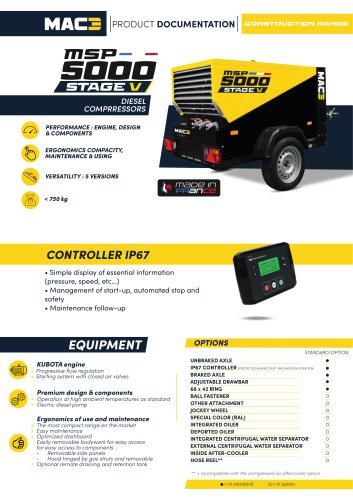

  25. Product documentation MSP5000 STAGE V
    Product documentation MSP5000 STAGE V

    2  Pages

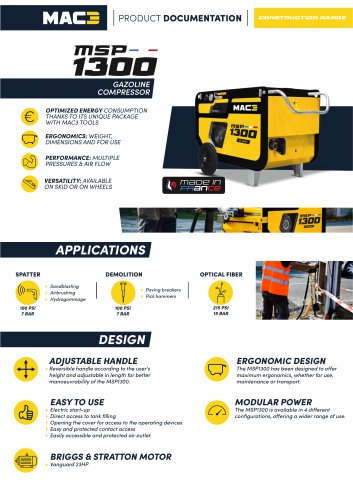

  26. Product documentation MSP1300
    Product documentation MSP1300

    2  Pages

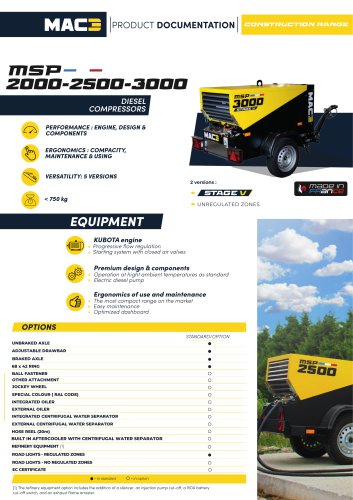

  27. Product documentation MSP2000-2500-3000
