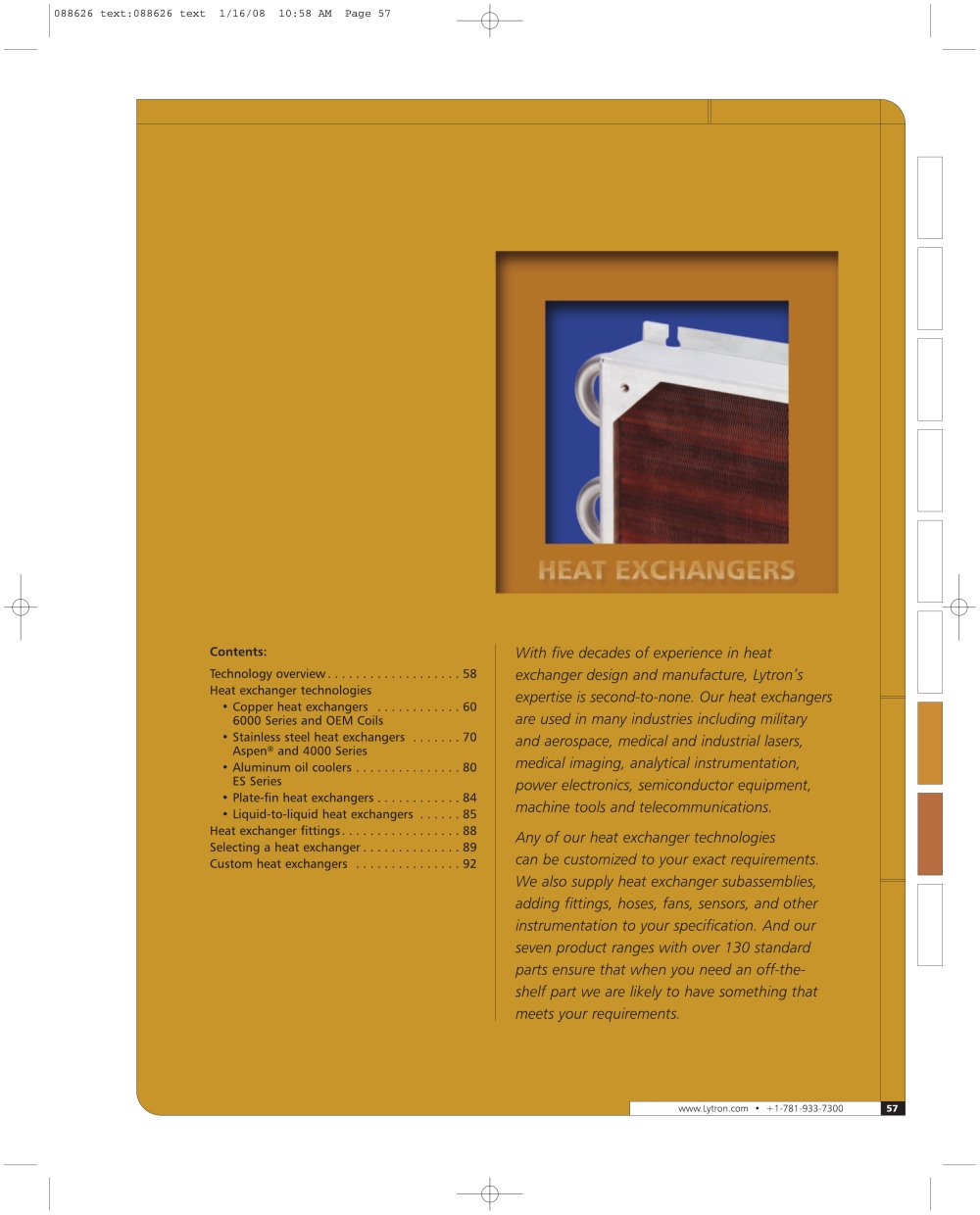

Heat exchanger technologies With five decades of experience in heat exchanger design and manufacture, Lytron's expertise is second-to-none. Our heat exchangers are used in many industries including military and aerospace, medical and industrial lasers, medical imaging, analytical instrumentation, power electronics, semiconductor equipment, machine tools and telecommunications. Any of our heat exchanger technologies can be customized to your exact requirements. We also supply heat exchanger subassemblies, adding fittings, hoses, fans, sensors, and other instrumentation to your specification. And our seven product ranges with over 130 standard parts ensure that when you need an off-the- shelf part we are likely to have something that meets your requirements.

Heat Exchanger Technology Overview Lytron's broad range of heat exchanger technologies combined with five decades of thermal transfer experience enables us to offer tailored solutions for a wide range of applications. Our four types of heat exchangers can all be customized and integrated into subassemblies. Tube-Fin Heat Exchangers 6000 Series, OEM Coils, Aspen, and 4000 Series Our tube-fin heat exchangers consist of copper or stainless steel tubes expanded into copper or aluminum fin. Tube-fin heat exchangers are cost effective and offer good heat removal for a wide range of applications...

Heat Exchanger Technology Overview Water Flow Performance comparison This chart compares the performance of different heat exchanger technologies. Performance is shown as Q/ITD, the heat load divided by the difference in incoming temperature of the liquid and air. Units are not shown so that technologies can be compared regardless of size. As many heat exchangers are customized, a range of typical values is shown for each technology. All performances are compared using water as the cooling fluid. Fluid compatibility Coolant compatibility with wetted surfaces must be considered when...

Copper Heat Exchangers Copper tubing expanded into copper cooling fins for excellent heat transfer All units supplied with built-in, fan-ready mounting hardware Fluxless, silver-brazed joints provide leak-free reliability wall tubing ensures fluid circuit durability The 6000 Series is a high performance heat exchanger with copper tubes and fin. It delivers efficient heat transfer and maximum reliability in a compact package. High cooling capacity in a small envelope: The 6000 Series is engineered for performance. Its high tube density results in maximum heat transfer. The seamless copper...

Copper Heat Exchangers Copper tubes are compatible with water, EGW, and other common cooling fluids Copper tubing expanded into aluminum fins offers efficient ensures fluid circuit durability. Fiuxless silver-brazed joints offer high reliability Galvanized steel side rails and tube sheets offer strength and corrosion resistance OEM coils are the ideal solution for large volume, price sensitive users who need a high quality, cost-effective part but do not require the additional features of the 6000 Series. Great value: We carefully selected the materials, tube layout, and fin for low...

6000 Series Air Side Pressure Drop OEM Coil Air Side Pressure Drop 6000 Series Liquid Side Pressure Drop OEM Coils Liquid Side Pressure Drop Water Flow Water Flow ' The solid vertical lines indicate the performance provided by our standard fans at 60 Hz and 20°C. Dashed fan lines represent fan performance at 50 Hz and 20°C.

PDFs, IGS files, and eDrawings of standard heat exchangers are available at www.Lytron.com. Main dimensional label is inches. Dimension in parentheses is mm.

PDFs, IGS files, and eDrawings of standard heat exchangers are available at www.Lytron.com. Main dimensional label is inches. Dimension in parentheses is mm.

Specifications and Part Number Configuration Fitting Options (see page 88) 6120G1 BD 6120 with beaded fittings Recommended Fans ' Note: fans, fan plugs, and fingerguards must be ordered separately. Assembly available on orders of 10+ pieces—ask for details. Other Accessories

Specifications and Part Numbering Configuration Fitting Options (see page 88) M05-100 SB 1 M05-100 with stub end fittings and fan plate Recommended Fans ' Note: fans, fan plugs, and fingerguards must be ordered separately. Assembly available on orders of 10+ pieces—ask for details. Other Accessories

Stainless Steel Heat Exchangers Wider tube spacing reduces cost, weight, and liquid pressure drop. Liquid return hops eliminate fluid pressure drop Welded, argon-purged joints maximize internal 316L stainless steel tubing compatible with deionized water and corrosive fluids The Aspen stainless steel tubed heat exchanger combines low price and low pressure drop with excellent heat transfer and superior fluid integrity. • Our best value stainless steel tubed heat exchanger: The Aspen offers excellent value—80-90% the performance of competitive products at approximately half the price. We...

Stainless Steel Heat Exchangers Superior construction—316L stainless steel tubing expanded into copper cooling fins Ail-welded, argon-purged joints maximize internal tubing ensures fluid circuit durability Pre-cleaned internal surface eliminates fluid contamination Available with straight, beaded, The 4000 Series is our highest performing stainless steel tubed heat exchanger. It is ideal for applications where deionized water or corrosive fluids are used, and a high efficiency, compact unit is required. • High cooling capacity in a small envelope: The 4000 series is engineered for...

Performance Graphs ' The solid vertical lines indicate the performance provided by our standard fans at 60 Hz and 20°C. Dashed fan lines represent fan performance at 50 Hz and 20°C. Air Side Pressure Drop Air Side Pressure Drop Liquid Side Pressure Drop Liquid Side Pressure Drop Water Flow Water Flow

PDFs, IGS files, and eDrawings of standard heat exchangers are available at www.Lytron.com. Main dimensional label is inches. Dimension in parentheses is mm.
