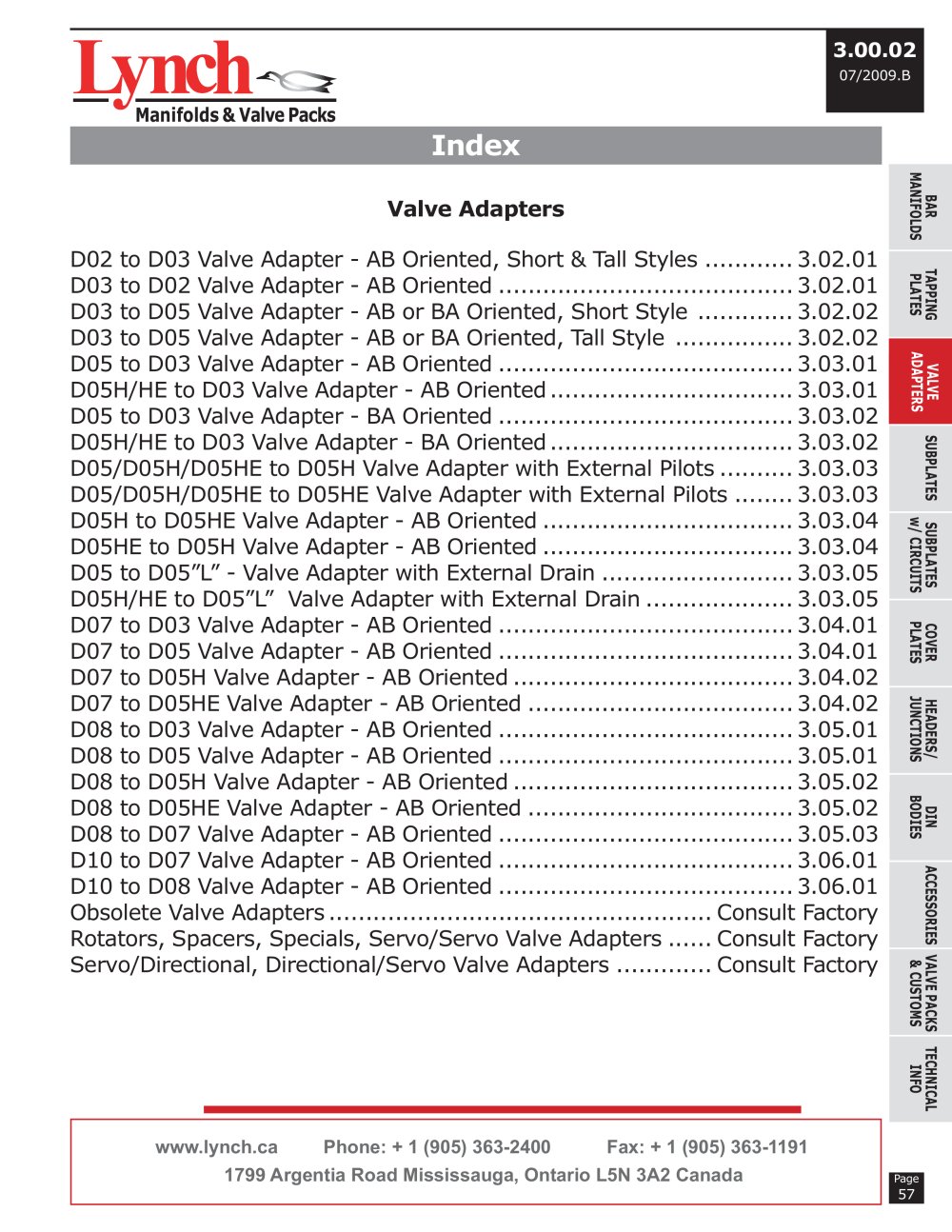

Valve Adapters - Section 3

Product catalog summary
Overview: This document provides comprehensive technical details on valve adapters used in hydraulic systems, covering specifications, part number systems, and material options.
Specifications: Valve adapters are designed as transition plates for mounting different valve sizes. Standard materials include Aluminum and Ductile Iron, with optional materials such as Mild Steel or Stainless Steel. Anodizing is available for enhanced protection.
Part Number System: A detailed part number system is outlined for identifying valve adapters based on interface type, material, and orientation. It includes both UNC and Metric threads and configurations for various valve sizes, such as D03 to D05 and D05 to D03.
Valve Adapter Types: The document describes various valve adapter types for transitioning between different valve sizes and orientations, including AB and BA orientations. It advises consulting the factory for obsolete adapters and specific part numbers.
Technical Features: Key features include clearance holes for structural integrity, gauge ports for pressure monitoring, and compatibility with ISO and NFPA standards. The document also mentions servo valve adapters and gasket mount pressure or flow controls.
Recommendations: For non-standard or obsolete valve adapters, consulting the factory for part numbers and additional information is recommended.
Additional Specifications: Part numbers and specifications for spacers and special components are listed, with examples like VA03G03GABUS### and VA05G05GABUS###. Special components include D08J (oversize) to D08 and D10J (oversize) to D08J (oversize).
Procedures: While not explicitly outlined, the document implies using specific part numbers for different applications.
Standards and Recommendations: The document suggests using specified part numbers for standard applications and offers options for oversized components for specialized needs.
Key Data: Part numbers and descriptions for typical and special components are provided, indicating their use in various applications.
