LyPore® Defender 9276-LS

Product catalog summary
Product Overview: The Grade 9276-LS is a microglass filtration media designed for liquid filtration, specifically as a pre-filter. It is optimized for high dirt holding capacity while maintaining a low pressure differential, suitable for use with LyPore® Defender efficiency layers or as a standalone filter.
Features and Advantages:
  • Highest dirt holding capacity among Lydall's media.
  • Provides precise efficiency for specific particle sizes.
  • Capable of withstanding high pressures and flow rates.
Applications: This filtration media is applicable for use in hydraulic oil, heavy-duty lube, engine oil, coolants, fuels, and turbine oil.
Typical Properties:
  • Basis Weight: 48 lbs/3000 sf (80 gsm)
  • Thickness: 18 Mils (0.44 mm)
  • MFP: 19.5 microns
  • Bubble Point: 58 microns
  • Resistance: 1.0 mm (9.8 Pa)
  • Frazier: 115 cfm (58 cm3/cm/sec)
  • Binder: Acrylic Latex
Disclaimer: All data and statements are indicative of representative properties and characteristics. No warranty is provided regarding their use, and responsibility is not accepted.
See more

Catalog excerpts

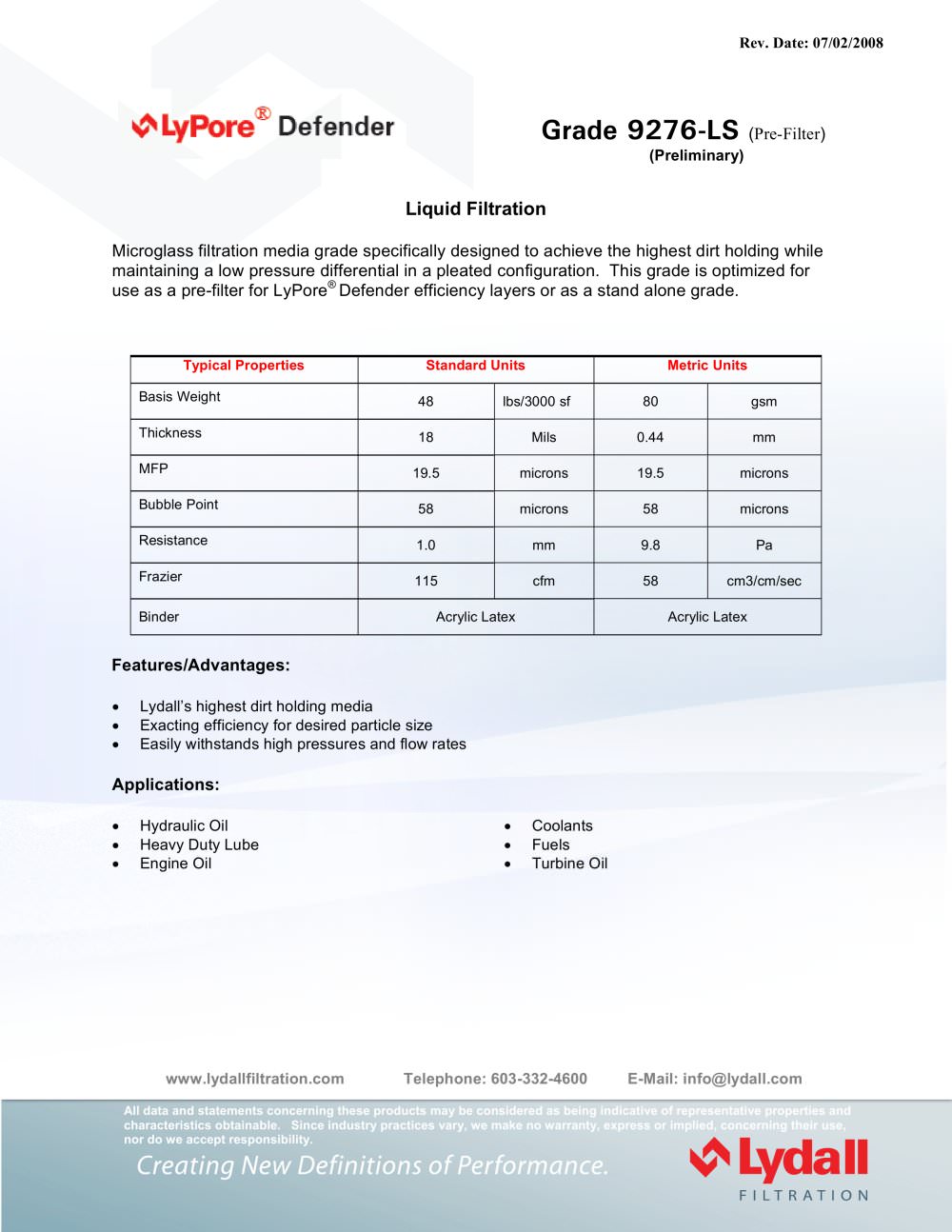

LyPore® Defender 9276-LS-1

Typical PropertiesStandard UnitsMetric Units Basis Weight 48 lbs/3000 sf 80 gsm Thickness 18 Mils 0.44 mm MFP19.5 microns 19.5 microns Bubble Point 58 microns 58 microns Resistance1.0 mm 9.8 Pa Frazier 115 cfm 58 cm3/cm/sec Binder Acrylic Latex Acrylic Latex LydallΒs highest dirt holding media Exacting efficiency for desired particle size Easily withstands high pressures and flow rates > Hydraulic Oil Coolants Heavy Duty Lube Fuels Engine Oil Turbine Oil www.lydallfiltration.com Telephone: 603-332-4600 E-Mail: [email protected] > All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. size="-2">

 Open the catalog to page 1
