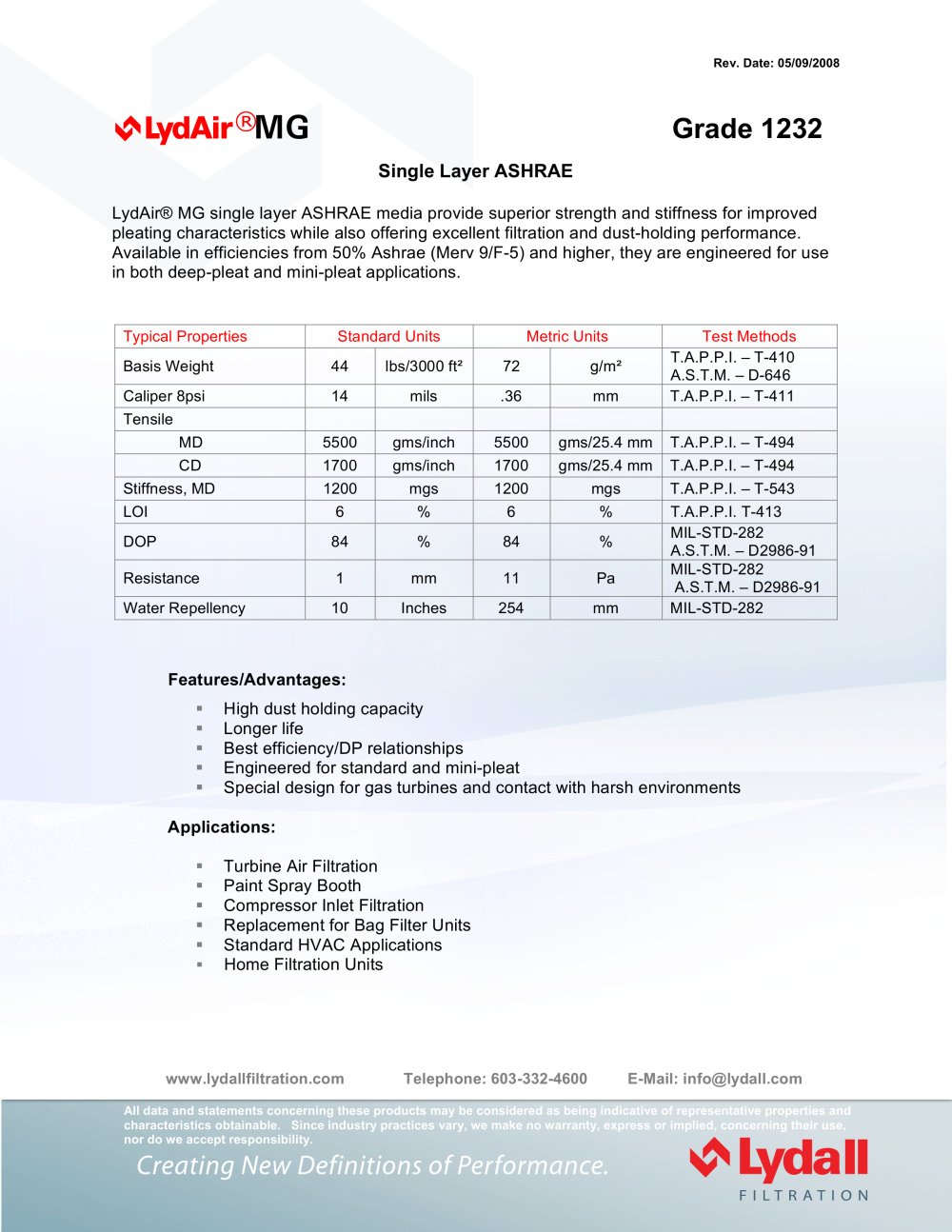

LydAir® MG 1232 - 1

LydAirή MG single layer ASHRAE media provide superior strength and stiffness for improved pleating characteristics while also offering excellent filtration and dust-holding performance. Available in efficiencies from 50% Ashrae (Merv 9/F-5) and higher, they are engineered for use in both deep-pleat and mini-pleat applications. > Typical Properties Standard Units Metric Units Test Methods Basis Weight 44 lbs/3000 ft 72 g/mҲ T.A.P.P.I. T-410 A.S.T.M. ֖ D-646 Caliper 8psi 14 mils .36 mm T.A.P.P.I. T-411 Tensile MD 5500 gms/inch 5500 gms/25.4 mmT.A.P.P.I. ֖ T-494 CD 1700 gms/inch 1700 gms/25.4 mm T.A.P.P.I. T-494 Stiffness, MD 1200 mgs 1200 mgs T.A.P.P.I. ֖ T-543 LOI 6 % 6 % T.A.P.P.I. T-413 DOP 84 % 84 % MIL-STD-282 A.S.T.M. D2986-91 Resistance 1 mm 11 Pa MIL-STD-282 A.S.T.M. ֖ D2986-91 Water Repellency 10 Inches 254 mm MIL-STD-282 Features/Advantages: High dust holding capacity Longer life Best efficiency/DP relationships Engineered for standard and mini-pleat Special design for gas turbines and contact with harsh environments Applications: Turbine Air Filtration Paint Spray Booth Compressor Inlet Filtration Replacement for Bag Filter Units Standard HVAC Applications Home Filtration Units > www.lydallfiltration.com Telephone: 603-332-4600 E-Mail: info@lydall.com All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. Rev. Date: 05/09/2008 size="-2">
