LydAir® MB CL 1909

Product catalog summary
Product Overview:
LydAir® MB Synthetic media is designed for high efficiency and dust-holding capacity while minimizing airflow resistance. It is suitable for use in stitched or ultrasonically sealed pocket and pleated filter designs, with efficiencies ranging from MERV-10/F5 to MERV-16/F9.
Specifications:
  • Basis Weight: 2.9 osy (99 g/m²), tested according to T.A.P.P.I. – T-410 and A.S.T.M. – D-646.
  • Penetration: 5.0%, tested according to MIL-STD-282 and A.S.T.M. – D2986-91.
  • Resistance: 3.0 mm (29 Pa), tested according to MIL-STD-282 and A.S.T.M. – D2986-91.
Features/Advantages:
  • High dust holding capacity and longer life.
  • Best efficiency/DP relationships.
  • Engineered for standard and mini-pleat designs.
  • Special design for gas turbines and harsh environments.
Applications:
  • Turbine air filtration.
  • Paint spray booths.
  • Compressor inlet filtration.
  • Replacement for bag filter units.
  • Standard HVAC applications.
  • Home filtration units.
See more

Catalog excerpts

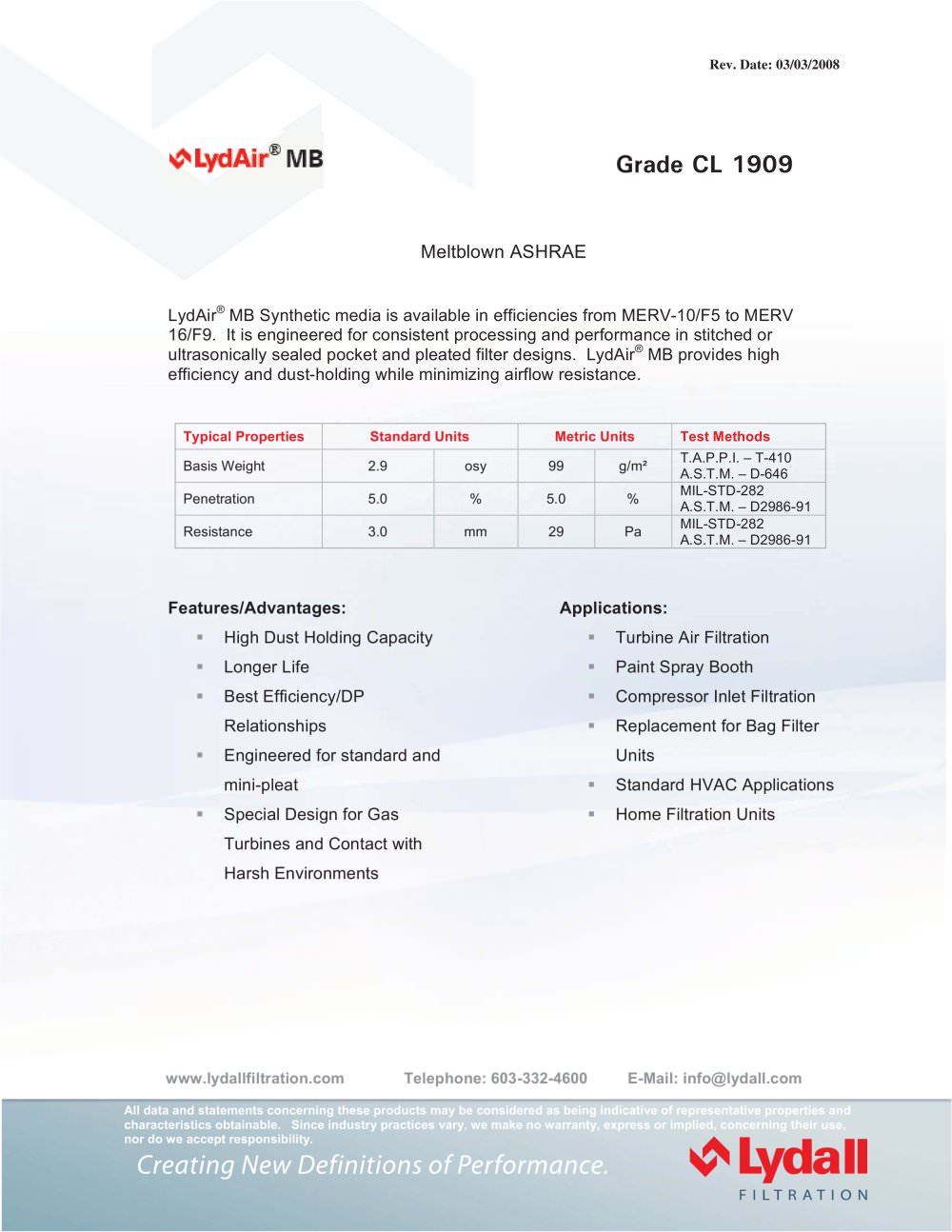

LydAir® MB CL 1909-1

LydAir > MB Synthetic media is available in efficiencies from MERV-10/F5 to MERV 16/F9. It is engineered for consistent processing and performance in stitched or ultrasonically sealed pocket and pleated filter designs. LydAir > ή MB provides high efficiency and dust-holding while minimizing airflow resistance. > Typical Properties Standard Units Metric Units Test Methods Basis Weight 2.9 osy 99 g/m T.A.P.P.I. Җ T-410 A.S.T.M. D-646 Penetration 5.0 % 5.0 % MIL-STD-282 A.S.T.M. ֖ D2986-91 Resistance 3.0 mm 29 Pa MIL-STD-282 A.S.T.M. D2986-91 Applications: փ Turbine Air Filtration Features/Advantages: Paint Spray Booth à High Dust Holding Capacity Compressor Inlet Filtration à Longer Life Replacement for Bag Filter Units à Best Efficiency/DP Relationships Standard HVAC Applications à Engineered for standard and mini-pleat Home Filtration Units à Special Design for Gas Turbines and Contact with Harsh Environments > www.lydallfiltration.com Telephone: 603-332-4600 E-Mail: [email protected] All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. size="-3">

 Open the catalog to page 1
