Arioso Membrane Composite Air Filter Media
Arioso Membrane Composite Air Filter Media
- M70 Series: F9 - MERV 15/16, 95% 0.3µ DOP Efficiency, 87% MPPS Efficiency
- M30 Series: H10, 97% 0.3µ DOP Efficiency, 88% MPPS Efficiency
- M32 Series: H12, 99.95% 0.3µ DOP Efficiency, 99.5% MPPS Efficiency
- M33 Series: H13, 99.9995% 0.3µ DOP Efficiency, 99.95% MPPS Efficiency
- M34 Series: H14, 99.99993% 0.3µ DOP Efficiency, 99.995% MPPS Efficiency
- Suitable for dynamic and static environments
- Low pressure drop and pleatable structures
- Customizable support materials
- Superior strength, durability, and water repellency
- Environmentally friendly and incinerable
- Materials: Polyester, Spunbond, and Glass, Wet-Laid.
- Basis Weight: Ranges from 55 g/m² to 208 g/m² depending on the application.
- Operating Temperature: Maximum continuous operating temperature is 80°C (176°F).
- Resistance vs. Velocity: Shows how resistance increases with velocity.
- Efficiency vs. Velocity: Demonstrates high efficiency across various velocities for both 0.3 µm and MPPS (Most Penetrating Particle Size).
Catalog excerpts

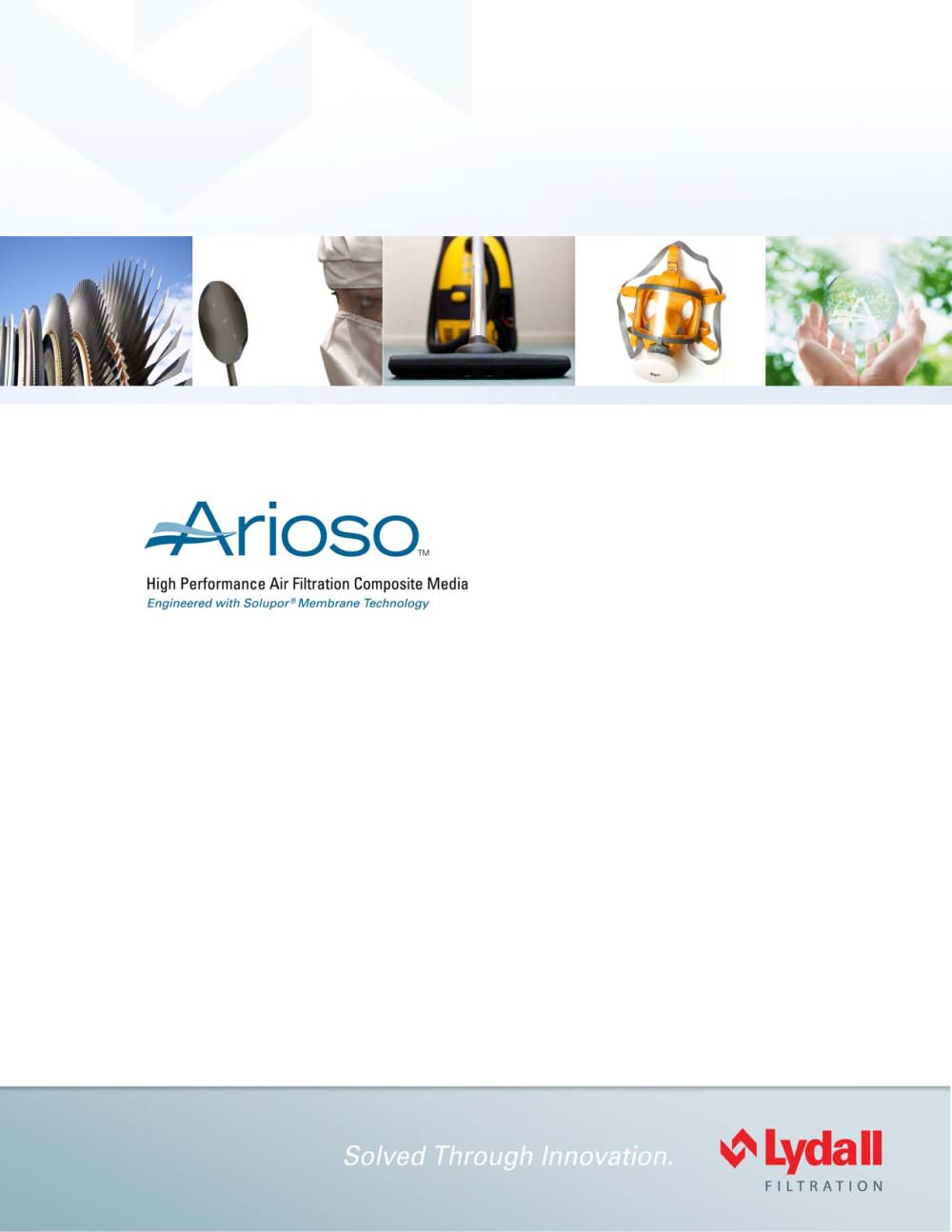

-A rioso High Performance Air Filtration Composite Media Engineered with Solupor® Membrane Technology <>Lydall FILTRATION
Open the catalog to page 1
Arioso™ High Performance Air Filtration Composite Media delivers extremely low pressure drop to high efficiency filters, allowing your customers to use less energy, and save money. And did we mention that Arioso media contains no fluoropolymers or halogens*, allowing for the potential of incineration or recycling? Saving energy, saving money, and recycling. Now that’s our idea of green. Arioso Series Efficiency Range 0.3ì DOP Efficiency MPPS Efficiency M70 Series F9 - MERV 15/16 95% 87% M30 Series H10 97% 88% M32 Series H12 99.95% 99.5% M33 Series H13 99.9995% 99.95% M34 Series H14 99.99993%...
Open the catalog to page 2
Solupor® Membrane Technology Our strong, microporous Solupor® UPE membrane combines structural microfibers with internal nanofibers for excellent strength, high efficiency and low pressure-drop. Solupor membrane is a lightweight, high-performance membrane that has resulted from many years of experience in micro-porous film technology development. Solupor membrane combines controlled pore-size distribution and air permeability with high filtration efficiency, chemical resistance and inertness. Arioso media is currently available in efficiencies from F9/MERV 15, up through H14. Functional Support...
Open the catalog to page 3
Revision Date: 11/12/2010 M3004-06 Version 3 [email protected] www.lydallfiltration.com North America & Asia: +1 603 332 4600 Europe, Middle East & Africa: +33 (0) 2 97 28 5300 All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. M3004-06 Typical Property Sheet For Gas Turbine, Dust Collection/APC and other Applications Combining high filtration efficiencies with an extremely...
Open the catalog to page 4
Revision Date: 11/12/2010 M3004-06 Version 3 [email protected] www.lydallfiltration.com North America & Asia: +1 603 332 4600 Europe, Middle East & Africa: +33 (0) 2 97 28 5300 All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. M3004-06 Typical Property Sheet Resistance versus Velocity 0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 0 1 2 3 4 5 6 Velocity, cm/s Resistance, mm H2O 0.3ìm...
Open the catalog to page 5
Revision Date: 11/12/2010 M3004-07 Version 3 [email protected] www.lydallfiltration.com North America & Asia: +1 603 332 4600 Europe, Middle East & Africa: +33 (0) 2 97 28 5300 All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. M3004-07 Typical Property Sheet For Gas Turbine, Dust Collection/APC and other Applications Combining high filtration efficiencies with an extremely...
Open the catalog to page 6
Revision Date: 11/12/2010 M3004-07 Version 3 [email protected] www.lydallfiltration.com North America & Asia: +1 603 332 4600 Europe, Middle East & Africa: +33 (0) 2 97 28 5300 All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. M3004-07 Typical Property Sheet Resistance versus Velocity 0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 0 1 2 3 4 5 6 Velocity, cm/s Resistance, mm H2O 0.3ìm Efficiency...
Open the catalog to page 7
Revision Date: 11/12/2010 M3004-G1 Version 3 [email protected] www.lydallfiltration.com North America & Asia: +1 603 332 4600 Europe, Middle East & Africa: +33 (0) 2 97 28 5300 All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. M3004-G1 Typical Property Sheet For Gas Turbine, Dust Collection/APC and other Applications Combining high filtration efficiencies with an extremely...
Open the catalog to page 8
Revision Date: 11/12/2010 M3004-G1 Version 3 [email protected] www.lydallfiltration.com North America & Asia: +1 603 332 4600 Europe, Middle East & Africa: +33 (0) 2 97 28 5300 All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. M3004-G1 Typical Property Sheet Resistance versus Velocity 0.0 1.0 2.0 3.0 4.0 5.0 6.0 0 1 2 3 4 5 6 Velocity, cm/s Resistance, mm H2O 0.3ìm Efficiency...
Open the catalog to page 9
Revision Date: 11/12/2010 M3203-11 Version 3 [email protected] www.lydallfiltration.com North America & Asia: +1 603 332 4600 Europe, Middle East & Africa: +33 (0) 2 97 28 5300 All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. M3203-11 Typical Property Sheet For High Efficiency Applications Combining high filtration efficiencies with an extremely low pressure drop, Arioso™...
Open the catalog to page 10
Revision Date: 11/12/2010 M3203-11 Version 3 [email protected] www.lydallfiltration.com North America & Asia: +1 603 332 4600 Europe, Middle East & Africa: +33 (0) 2 97 28 5300 All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. M3203-11 Typical Property Sheet Resistance versus Velocity 0 2 4 6 8 10 12 14 16 0 1 2 3 4 5 6 Velocity, cm/s Resistance, mm H2O 0.3ìm Efficiency versus...
