LCD General Information

Product catalog summary

Overview: This document provides technical specifications and guidelines for Lumex LCD modules, including part numbering, operating characteristics, and interfacing instructions.

Specifications:

Operating Temperature: Standard (0° to 50°C), High Temp (-30° to 75°C), Ultra High Temp (-40° to 85°C).
Model Number: Includes alphanumeric and numeric displays, as well as matrix and graphic models.
Fluid Type: Twisted Nematic (TN), Super Twisted Nematic (STN).
Polarizer Mode: Reflective, Transflective, Transmissive.

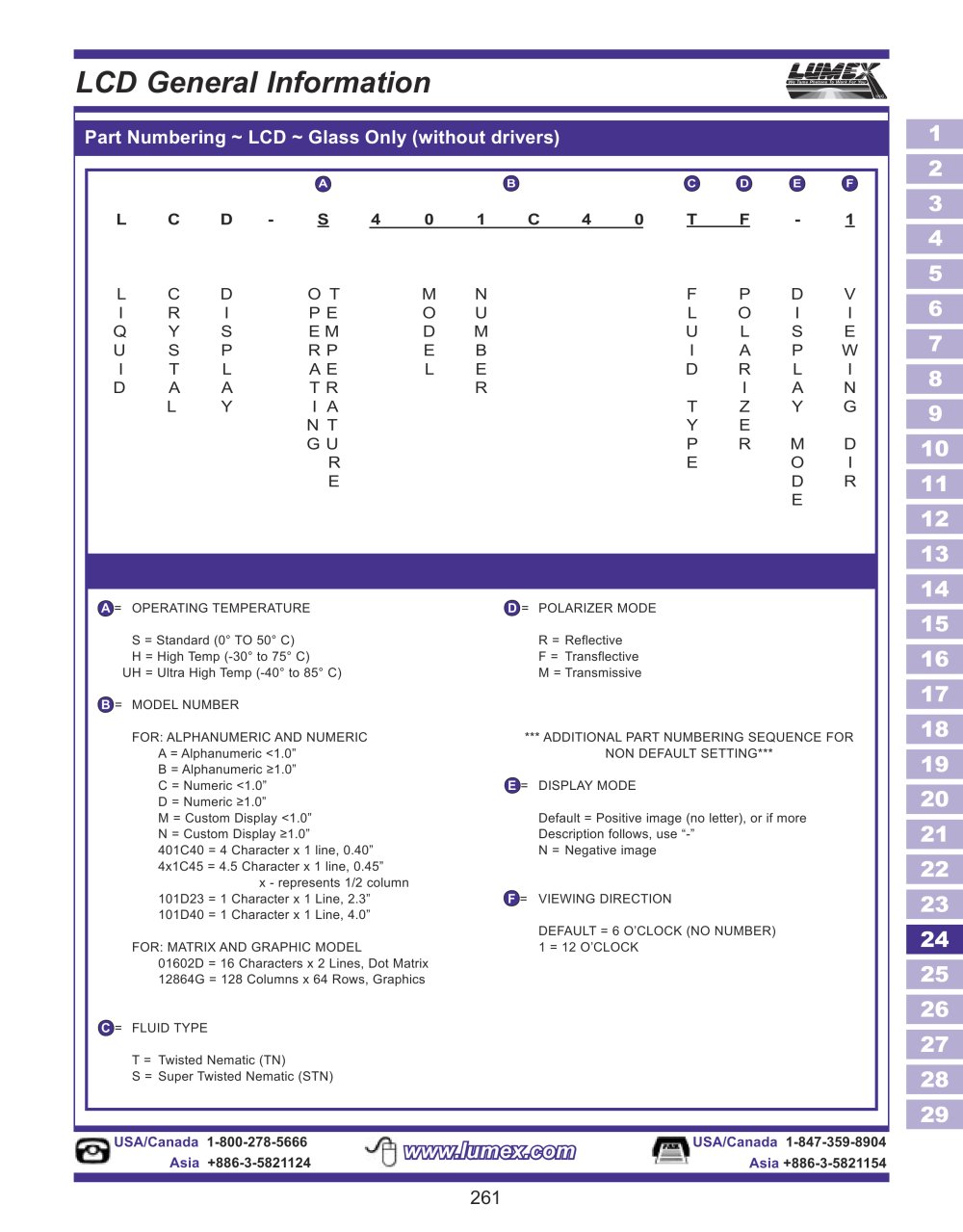

Part Numbering: The document outlines a detailed part numbering system for LCD modules, specifying different configurations based on display type, fluid type, and polarizer mode.

Display Modes: Default is a positive image, with options for negative image display.

Viewing Direction: Default is 6 o'clock, with an option for 12 o'clock.

Interfacing Instructions:

Details on interfacing with 4-bit and 8-bit MPU, including timing characteristics and initialization instructions.
Instructions for writing and reading data from MPU to controller, with specific timing requirements.

Initialization Instructions: Provides step-by-step instructions for initializing LCD modules, including power-on sequences and function set commands.

Graphic Instructions: Includes command descriptions and codes for graphic LCD modules, detailing shift directions and command classes.

Contact Information: Lumex contact details for USA/Canada and Asia are provided for further inquiries.
