Product catalog summary

Overview: Lumenera Corporation provides advanced surveillance cameras with intelligent video analytics and high-resolution imaging. The document details various camera models, their specifications, and the advantages of using Lumenera's technology in diverse security applications.

Intelligent Camera Series: These cameras feature onboard video analytics for real-time threat detection and analysis. They offer user-friendly installation, automated threat detection, and future-proofing through software updates, reducing system complexity and costs by eliminating the need for backroom servers.

Camera Specifications: The document describes several camera models, detailing megapixel resolution, frame rate, optical format, sensitivity, compression type, and sensor type. For instance, the Li045 model provides 0.3 megapixels with a resolution of 720 x 480 at 30 fps, using a CMOS sensor.

Target Markets and Benefits: Lumenera's cameras are applicable in sectors like homeland security, transportation, banking, education, and retail. Benefits include reduced financial loss, minimized liability, proactive intervention, fewer false alarms, and improved decision-making.

Advanced Features: Features include motion detection, privacy zones, alarms, and strobe synchronization. Advanced image processing capabilities ensure high-quality images under varying lighting conditions with auto exposure control, auto white balance, and auto gain.

Day/Night Cameras: Designed for low-light conditions, these models include Power Over Ethernet (PoE), H.264 or MJPEG compression, and true day/night options, equipped with ObjectVideo video analytics for enhanced surveillance.

Introduction to Megapixel Technology: Megapixel resolution offers 4 to 32 times the image detail compared to traditional standards, providing over 2600 lines of clarity, enhancing legal evidence and decision-making processes.

Advantages of Megapixel Cameras: These cameras allow significant digital zoom capabilities, reducing the need for multiple analog cameras and lowering system costs. They use high-performance sensors with progressive scan technology to minimize motion artifacts.

Network Camera Benefits: Network cameras offer unlimited resolution and superior image quality through IP protocols, allowing easy system expansion and integration with existing infrastructure. PoE simplifies installation.

Applications and Customization: Suitable for military, homeland security, and public surveillance, Lumenera cameras offer OEM customization options for hardware and software modifications to meet specific needs.

Future-Proof Technology: Lumenera continuously develops new features to enhance camera performance and compatibility, offering software updates for easy upgrades, ensuring a reliable technology partnership.

Conclusion: Lumenera's surveillance cameras provide high image detail and advanced analytics, ideal for critical security applications. The integration of intelligent features and robust design ensures reliable performance across various environments.

Catalog excerpts

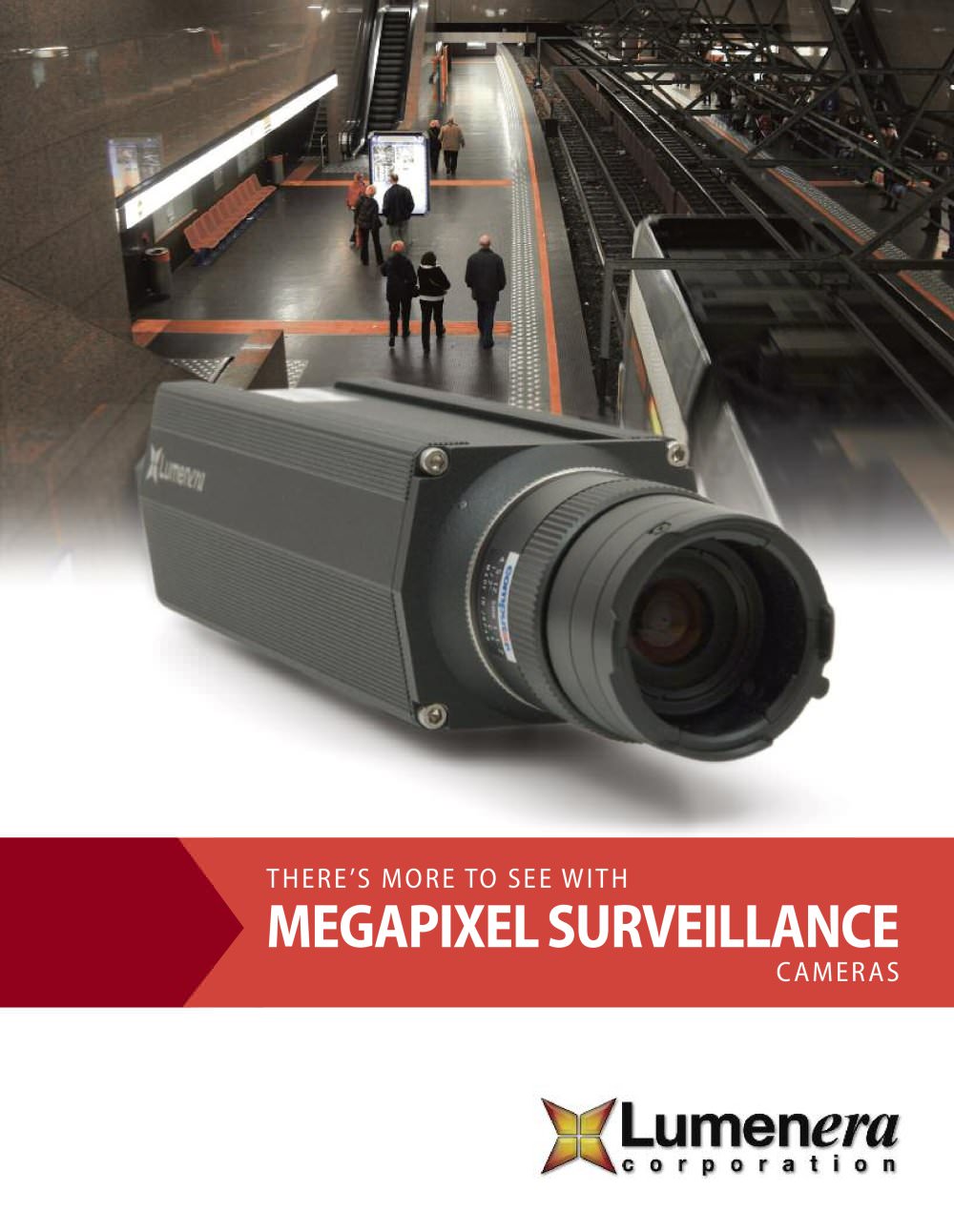

Lumenera Surveillance Camera Brochure table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:20.00pt "Lucida Sans Unicode", sans-serif; } .font1 { font:38.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:41.00pt "Lucida Sans Unicode", sans-serif; } ) (Lumenera ^"Acorporation

Open the catalog to page 1

Lumenera Surveillance Camera Brochure table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font1 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:12.00pt "Lucida Sans Unicode", sans-serif; } INTELLIGENT CAMERAS Be prepared-be proactive-take control! Lumenera's new intelligent camras greatly enhance the ability to detect po-tential threats and events in real-time, providing the opportunity for secu-rity personnel to interrupt a crime or attack while in progress. On board video analytics heighten the effectiveness...

Open the catalog to page 2

Lumenera Surveillance Camera Brochure table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:23.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:12.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:31.80pt "Lucida Sans Unicode", sans-serif; } SUGGESTED APPLICATIONS Li045, Li165, Li175 - VGA, 1.3 and 1.4 MP Intelligent Cameras Samecapabilites as the Le045, Le165, Le175 plus... Օ Low-light imaging with ambient light or active infrared Mission-critical surveillance for military, homeland, perimeter, border, prison,...

Open the catalog to page 3

Lumenera Surveillance Camera Brochure table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:12.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:20.00pt "Lucida Sans Unicode", sans-serif; } WHY MEGAPIXEL SURVEILLANCE VIDEO IS OFTEN USED FOR MAKING CRITICAL DECISIONS. LIABILITY AND LEGAL ACTION ARE BEING DETERMINED FOR IMAGE DATATHAT IS DIFFICULT TO INTERPRET.THE INDUSTRY HAS BEEN SETTLING FOR SECOND-RATE...

Open the catalog to page 4

Lumenera Surveillance Camera Brochure table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Lucida Sans Unicode", sans-serif; } Leading provider of high performance surveillance cameras - Expertise in digital imaging Committed to innovation Օ Unparalleled customer service and support Provider of custom, private labelled and OEM cameras around the world Օ Easy-to-do business with UNRIVALED IMAGE DETAIL Better image quality is the result of additional pixels and progressive scan image sensors. Advanced digital image processing provides unrivaled color fidelity...

Open the catalog to page 5

Lumenera Surveillance Camera Brochure table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Impact", sans-serif; } .font1 { font:4.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:12.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:28.00pt "Lucida Sans Unicode", sans-serif; } SECURITY NETWORK CAMERAS FEATURE COMPARISON MATRIX INTELLIGENT CAMERA SERIES Model Megapixel Resolution Frame Rate at Full Resolution (MJPEG) Optical Format Sensitivity...

Open the catalog to page 6
