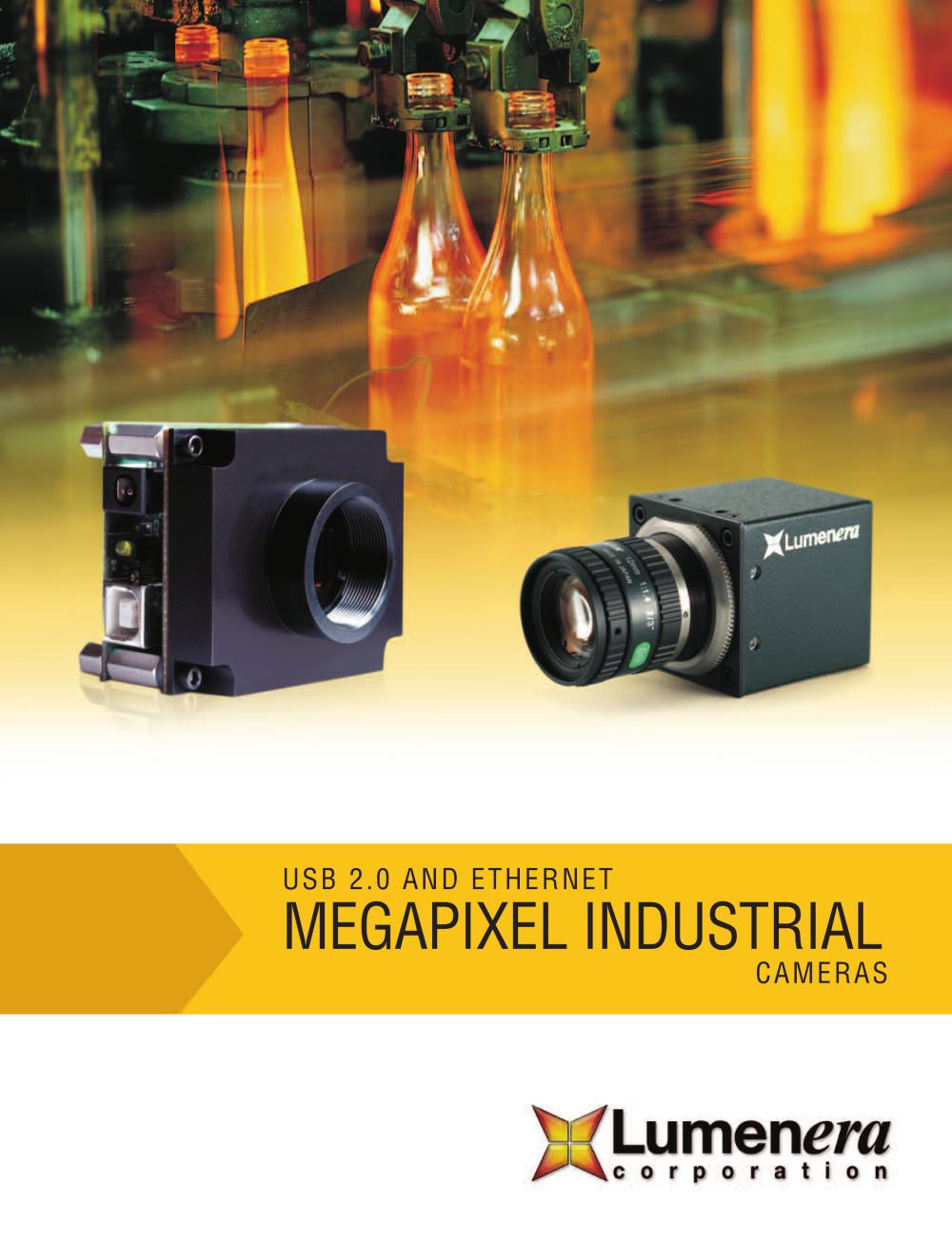

Camera Specifications Overview
The document outlines the specifications of Lumenera camera models, focusing on resolution, frame rate, pixel depth, optical format, shutter type, color/mono options, lens mount, and I/O capabilities. Key models include Lu070/Lu075, Lm075, Lu080/Lu085, each tailored for specific industrial uses.

Camera Feature Set
Lumenera cameras offer high-speed USB 2.0 connectivity, GPI/Os for peripheral control, and compatibility with multiple Windows operating systems. They support pixel data selection (8, 10, or 12-bit) and simplified cabling for video and camera control.

OEM Customization
Customization options for OEM customers include hardware and software modifications, custom enclosures, and alternate form factors to enhance time-to-market and reduce development costs.

Mini Form Factor Cameras
The mini CCD camera line addresses space constraints with compact dimensions (44 x 44 x 56mm) while maintaining performance, featuring industrial locking USB 2.0 connectors and adjustable back focus.

Common Software Developer’s Kit (SDK)
All Lumenera cameras are designed with a common SDK, facilitating easy integration and camera exchange, reducing design risk.

Why Digital and Megapixel?
Digital interfaces like USB 2.0 and Ethernet enable efficient system integration without third-party frame grabbers. Megapixel cameras provide superior image quality for precise measurements and defect detection.

Camera Models and Applications
Lumenera cameras are used in over 200 industrial applications, including barcode scanning, metrology, and semiconductor inspection. Models like Lu160/Lu165 and Lu170/Lu175 are noted for high sensitivity and low noise.

Technical Assistance and Support
Lumenera’s Technical Assistance Centre offers comprehensive support for product development, integration, and post-sales services.

Lu vs. Lw Cameras
The Lw series offers enhanced performance with more image processing capabilities, faster throughput, and increased onboard memory compared to the Lu series.

High-Speed Drivers and Ethernet Cameras
High-speed drivers are available for select models to boost performance. Ethernet cameras offer longer cable lengths and Power over Ethernet (PoE) for industrial applications.

Resolution Options
Lumenera provides a range of resolutions from VGA to multi-megapixel, catering to various imaging needs with both CCD and CMOS sensors.

Camera Models and Specifications
Detailed specifications for various camera models based on CCD and CMOS sensors are provided, highlighting unique features for imaging applications. Key models include:

• Lu200/Lu205: 1600x1200 resolution, 1/2" CMOS 2.0 megapixel sensor, 10 fps, color only.
• Lw230/Lw235: 1616x1216 resolution, 1/1.8" Sony CCD 2.0 megapixel sensor, 12 fps, available in color or monochrome.
• Lw259: 1920x1080 resolution, 2/3" CCD 2.0 megapixel sensor, 15 fps, available in color or monochrome.
• Lw290/Lw295: 1920x1080 resolution, 2/3" CMOS 2.1 megapixel, 20 fps, available in color or monochrome.
• Lw11059: 4008x2672 resolution, 35mm CCD 10.7 megapixel sensor, 3.5 fps, available in color or monochrome.

3rd Party Partners
Lumenera cameras are supported by various partners for integration, including BitFlow, I/O Industries, MathWorks, and National Instruments.
