Lowara catalogue 50 Hz Circulators

Lowara catalogue 50 Hz Circulators

Product catalog summary

Circulators Overview
The document provides a comprehensive overview of Lowara's circulator series designed for residential, sanitary, and commercial systems. Each series is tailored for specific applications, with detailed specifications, materials, and performance characteristics.

TCR Series
These in-line wet rotor circulators are designed for residential systems with fixed speed and manual adjustment. They offer a delivery capacity of up to 3.5 m3/h, a head of up to 6.5 m, and a power range of 20 kW to 40 kW. The pump body is made of cast iron, suitable for water circulation in heating and air-conditioning systems.

TCB-TCS Series
This series is intended for hot water circulation in residential systems, available in bronze (TCB) or stainless steel (TCS) versions. They provide a delivery capacity of up to 6 m3/h for single pumps and up to 9.5 m3/h for twin pumps, with a maximum operating pressure of 10 bar and a temperature range of 0°C to +110°C.

TC-FC Series
Designed for commercial systems, these circulators offer a delivery capacity of up to 68 m3/h for single pumps and up to 125 m3/h for twin pumps. They can handle a head of up to 20 m and operate with both single-phase and three-phase power supplies. The pump body is constructed from cast iron, suitable for non-aggressive hot or cold water circulation.

Performance and Dimensions
The document includes detailed tables of hydraulic performance and dimensions for each series, specifying delivery (Q) and total head (H) in meters, along with power and speed ratings. These tables are crucial for selecting the appropriate pump based on specific system requirements.

Applications
Each series is designed for specific applications, such as residential heating and air-conditioning systems, sanitary hot water systems, and commercial water circulation. The materials used, such as cast iron, bronze, and stainless steel, ensure durability and compatibility with various water types.

Specifications
The pumps are designed for different applications such as residential and commercial water circulation, heating, ventilation, and cooling systems. They operate under specific conditions with a liquid density of 1.0 kg/dm³ and kinematic viscosity of 1 mm²/s.

Performance Characteristics
The document outlines the performance metrics for each pump series, including delivery (Q) and total head (H) in meters. The performance is compliant with ISO standards 9906 - Annex A.

Materials
The pumps are constructed using materials like cast iron for the pump body, composite materials for the impeller, stainless steel for the shaft and wear ring, and graphite for bearings.

Dimensions and Weights
Detailed tables provide the dimensions and weights for each pump type, specifying measurements such as height, length, and diameter, along with the weight in kilograms.

Installation Guidelines
The document includes permissible installation positions for single and twin circulators, indicating the correct motor arrangement and delivery terminal board positions.

Applications
The pumps are suitable for water supply, heating, cooling, and general industrial applications, with specific models designed for residential or commercial use.

FC-FCT Series Overview
This series of centrifugal pumps is designed for various applications including water supply, heating, cooling, and general industry. The pumps are available in single (FC) and twin (FCT) versions, with options for different materials and configurations.

Specifications
The pumps offer delivery rates up to 190 m3/h for 2 poles and 330 m3/h for 4 poles, with a head up to 89 m for 2 poles and 35 m for 4 poles. They support both three-phase and single-phase power supplies at 50 and 60 Hz, with power ranging from 0.25 kW to 22 kW. The maximum operating pressure is 10 bar for PN10 versions and 16 bar for PN16 versions, with liquid temperature ranges from -10°C to +130°C for "E" versions and -20°C to +140°C for "S" versions.

Materials
The pump body is made of cast iron, while the impeller is made of AISI 316 stainless steel for certain models and cast iron for others. The adapter can be aluminum or cast iron, and the mechanical seal options include Carbon/Ceramic/EPDM and Silicon-carbide/Carbon/EPDM.

Applications
The pumps are suitable for water supply, heating, ventilation, cooling, chilling, general industry, and heat recovery. Optional features include a version with a Hydrovar frequency converter, an FCS with an efficiency class 1 motor, and a version with a bronze impeller.

Performance Tables
The document includes detailed hydraulic performance tables for various models at 50 Hz, 2 poles, and 4 poles, indicating the delivery (Q) and total head (H) in meters for different power ratings (kW and HP).

Operating Characteristics
The operating characteristics are provided for both 2 poles and 4 poles at 50 Hz, with notes on NPSH values and performance conditions for liquids with specific density and viscosity.

FCE4, FCS, FCS4, and FCTE Series Overview
This section details the specifications, dimensions, and weights of various pump series, focusing on their disassembly, dimensions, and component specifications.

Specifications
The document provides detailed specifications for pump bodies with and without foot, including series 125, 160, 200, and 250. It lists the dimensions and weights for each pump type, specifying parameters such as diameter (DNA, DNM), height (H), length (L), and weight (kg).

Procedures
The document outlines the clearance required for disassembly of pump bodies, both with and without foot. It specifies the necessary space and tools needed for maintenance and repair operations.

Standards and Norms
The catalogue includes standard specifications for pump flanges, holes, and thicknesses. It also details the connectors for air valves, pressure gauges, and drains, ensuring compatibility with industry standards.

Recommendations
Recommendations for handling and installation are implied through the detailed dimensions and weights, ensuring that users can select the appropriate pump type for their specific needs.

Data Summary
The document contains extensive tabular data listing the dimensions and weights of various pump models. Key data points include the pump type, dimensions (B, H, L, k), and maximum weight. This information is crucial for selecting the right pump for specific applications.

Critical Information
The document highlights critical parameters such as the maximum weight of each pump type, the necessary clearance for disassembly, and the specific dimensions of pump components. These details are essential for ensuring proper installation and maintenance.

Catalog excerpts

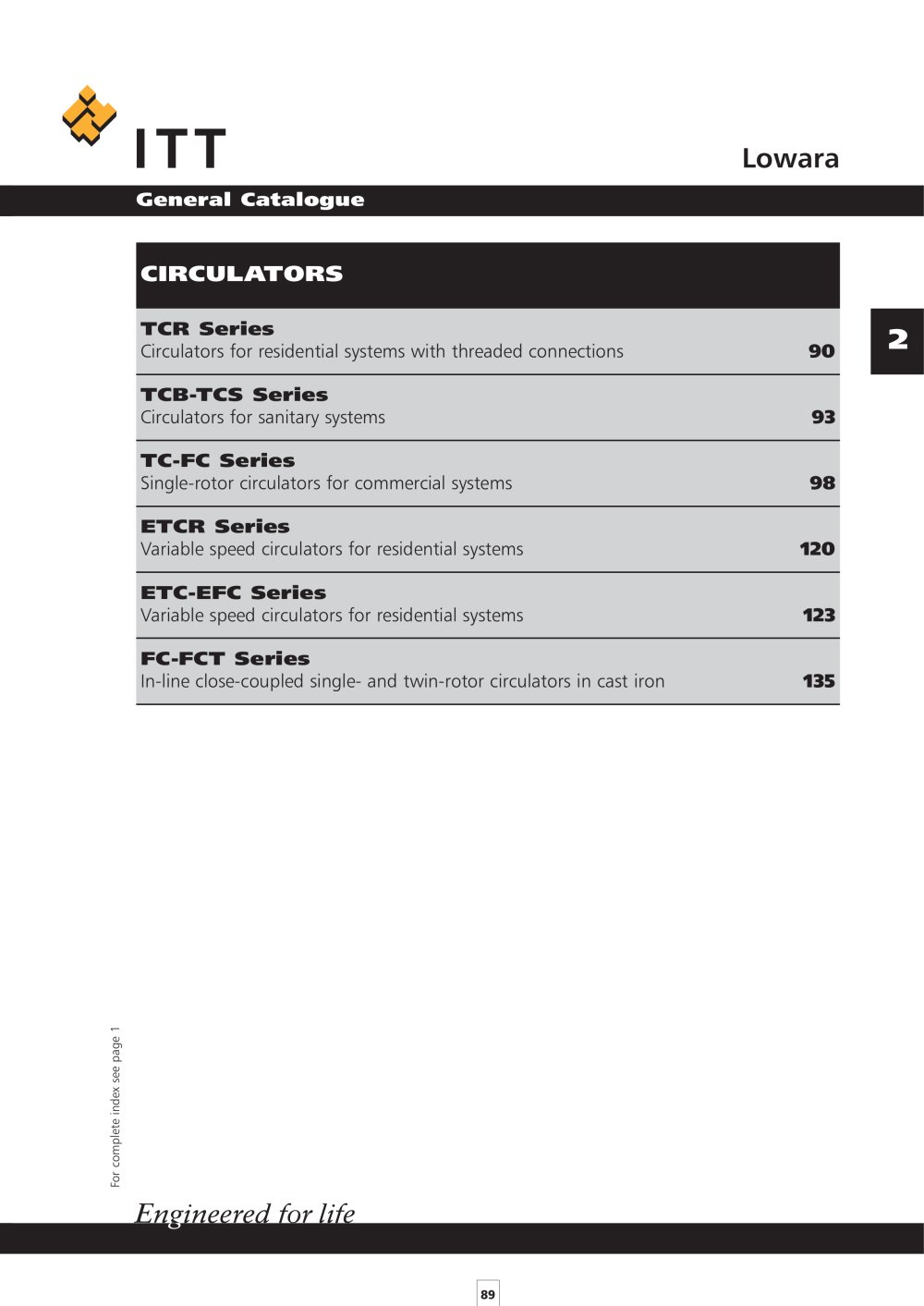

TCR Series Circulators for residential systems with threaded connections 90 > TCB-TCS Series Circulators for sanitary systems 93 TC-FC Series Single-rotor circulators for commercial systems 98 ETCR Series Variable speed circulators for residential systems 120 ETC-EFC Series Variable speed circulators for residential systems 123 FC-FCT Series In-line close-coupled single- and twin-rotor circulators in cast iron 135 > For complete index see page 1 89 size="-1">

Open the catalog to page 1

Delivery : up to 3.5 m > 3 /h Head : up to 6.5 m Power supply : single-phase 50 Hz Power : 20 kW to 40 kW Maximum operating pressure :10 bar Temperature of pumped liquid :-10C to +110аC Insulation class : F Protection : IP42 > Pump body : Cast iron Impeller : Composite material Shaft : Stainless steel Lower sleeve : Stainless steel Wear ring : Stainless Steel Bearings : Graphite Elastomers : EPDM > Water circulation in heating andair-conditioning systemsՕPumping of chemically andmechanically hot, cold and non-aggressive water > For a complete list of technical information, consult www.lowara.com...

Open the catalog to page 2

These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 91 >

Open the catalog to page 3

Delivery : up to 6 m > 3 /h (single version),up to 9.5 m > 3 /h with 2 pumps working Head : up to 6.5 m Power supply : single-phase 50 Hz Power : 10 kW to 100 kW Maximum operating pressure :10 bar Temperature of pumped liquid :0C to +110аC Insulation class : F Protection : IP42(IP44 for TCS models) > Pump body :Bronze (TCB, TCBG)Stainless steel (TCS) Impeller : Composite material Shaft : Ceramic Sleeve : Stainless steel Bearings : Graphite Elastomers : EPDM > Residential hot water systems > For a complete list of technical information, consult www.lowara.com 93 size="-1">

Open the catalog to page 5

501010,463,54002 - 20005,24,63,83,12,31,50,8501280,563,54003 - 25005,85,55,14,64,13,63,02,2 > PUMPRATEDSPEEDTYPERATEDINPUTINTENSITY Q = DELIVERYH = TOTAL HEAD IN COLUMN OF WATER (METRES)POWERCAPACITOR H = TOTAL HEAD IN COLUMN OF WATER (METRES)Q = DELIVERYPOWERCAPACITOR l/min 01020406080100120150 2x m 3 /h 00,61,22,43,64,867,29 230V 50HzW * > W * > A * > յFVrpm 50700,323,54001 - 14003,73,22,71,71,0 > (2) Electric data refer to single motor.tcb-2p50_a_th (1) Performance for single pump operation (2) Performance for parallel pump operationPerformance according to ISO standards 9906 - Annex A

Open the catalog to page 6

These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 95 >

Open the catalog to page 7

These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 96 >

Open the catalog to page 8

Delivery :up to 68 m > 3 /h (single version)up to 125 m > 3 /h (with 2 pumps operating) Head : up to 20 m Power supply : three-phase andsingle-phase 50 Hz Power : 20 kW to 2500 kW Maximum operating pressure :10 bar Temperature of pumped liquid :-20C to +130аC Insulation class : F Protection : IP44 (IP42 for modelTCG 32-4) > Pump body : Cast iron Impeller : Composite material Shaft : Stainless steel Sleeve : Stainless steel Bearings : Graphite Elastomers : EPDM > Water circulation in heating andair-conditioning systemsՕPumping of chemically andmechanically non-aggressive hot or cold water > For...

Open the catalog to page 10

PUMPRATEDSPEEDTYPERATEDINPUTINTENSITY POWERCAPACITOR Q = DELIVERYH = TOTAL HEAD IN COLUMN OF WATER (METRES) l/min 02550100150200300400600800 m 3 /h 01,53691218243648 230V 50HzWWAFVrpm Performance according to ISO standards 9006 - Annex A.tc-fcm-2p50_a_th

Open the catalog to page 11

These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 103 >

Open the catalog to page 15

These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 104 >

Open the catalog to page 16

These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 105 >

Open the catalog to page 17

Single operationParallel operation Single operation Parallel operation Single operationParallel operation Single operation Parallel operation These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 106 >

Open the catalog to page 18

Single operationParallel operation Single operation Parallel operation Single operation Parallel operation Single operation Parallel operation These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 107 >

Open the catalog to page 19

Single operationParallel operation Single operation Parallel operation Single operation Parallel operation Single operation Parallel operation These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 108 >

Open the catalog to page 20

These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 109 >

Open the catalog to page 21

These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 110 >

Open the catalog to page 22

These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 111 >

Open the catalog to page 23

Single operationParallel operation Single operation Parallel operation Single operation Parallel operation These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 112 >

Open the catalog to page 24

Single operationParallel operation Single operation Parallel operation Single operation Parallel operation Single operation Parallel operation These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 113 >

Open the catalog to page 25

Single operationParallel operation Single operation Parallel operation Single operation Parallel operation Single operation Parallel operation These performances are valid for liquids with density ρ = 1.0 kg/dm > 3 and kinematic viscosity ν = 1 mm > 2 /s. 114 >
